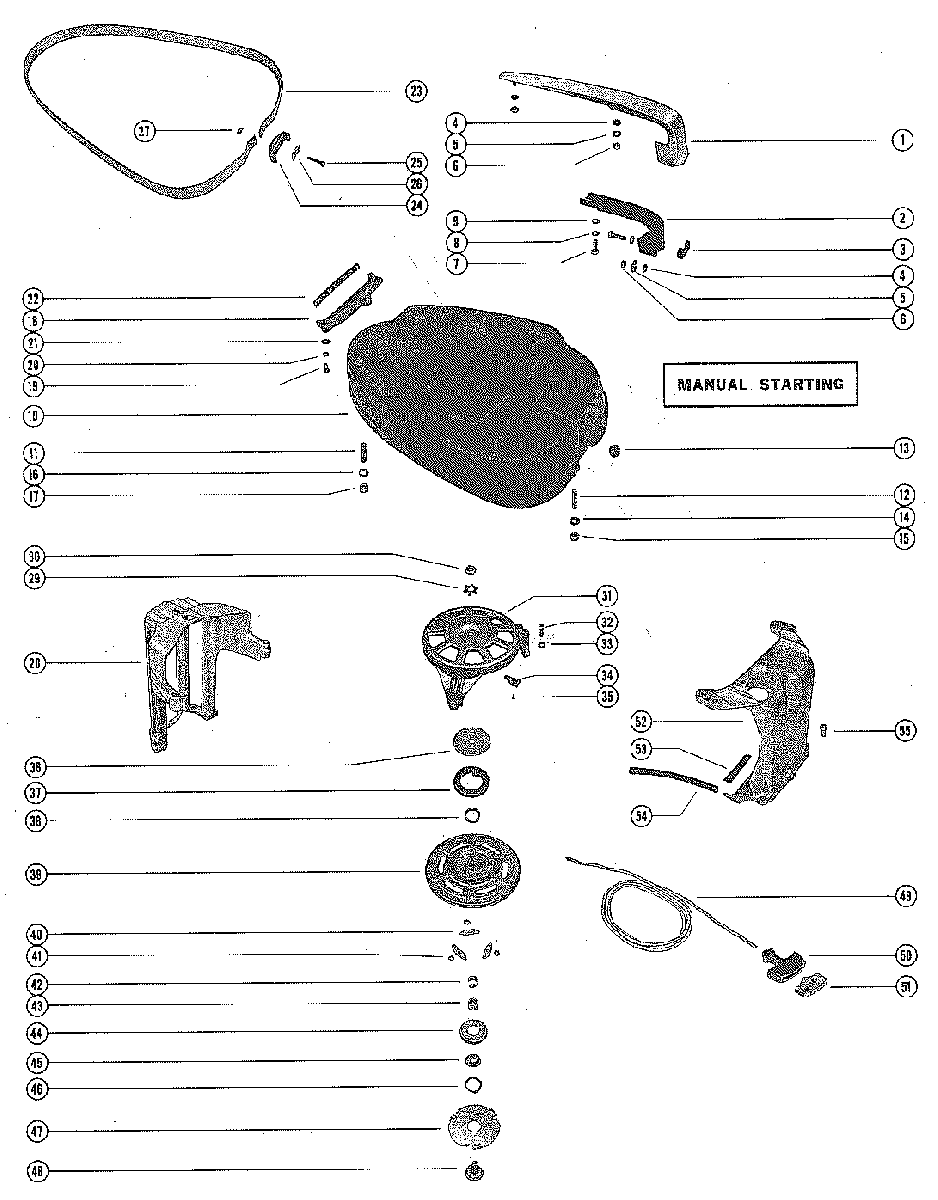

TOP COWL ASSEMBLY, STARTER SHEAVE & SUPPORT BRACKETS MANUAL для Mercury - 500 1770179 THRU 2116317

  • №
    Артикул
    Название
  • 1
    37679 HANDLE, CHROME - TOP COWL
    HANDLE, CHROME - TOP COWL
  • 2
    37689 HANDLE, INSIDE - TOP COWL
    HANDLE, INSIDE - TOP COWL
  • 3
    35496 PAD, BUMPER - TOP COWL HANDLE
    PAD, BUMPER - TOP COWL HANDLE
  • 4
    12-20533 WASHER, TOP COWL HANDLE STUD (9/16" O.D.)
    WASHER, TOP COWL HANDLE STUD (9/16" O.D.)
  • 5
    12-69057 WASHER, TOP COWL HANDLE STUD (3/4" O.D.)
    WASHER, TOP COWL HANDLE STUD (3/4" O.D.)
  • 6
    11-21825 NUT, TOP COWL HANDLE STUD
    NUT, TOP COWL HANDLE STUD
  • 7
    10-35386 SCREW, HANDLE TO TOP COWL (1")
    SCREW, HANDLE TO TOP COWL (1")
  • 8
    13-26993 LOCKWASHER, HANDLE TO TOP COWL SCREW
    LOCKWASHER, HANDLE TO TOP COWL SCREW
  • 9
    12-26825 WASHER, HANDLE TO TOP COWL SCREW
    WASHER, HANDLE TO TOP COWL SCREW
  • 10
    2117-2479A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 11
    16-21550 STUD, REAR - TOP COWL TO REAR SUPPORT BRACKET
    STUD, REAR - TOP COWL TO REAR SUPPORT BRACKET
  • 12
    16-21553 STUD, FRONT - TOP COWL TO FRONT SUPPORT BRACKET
    STUD, FRONT - TOP COWL TO FRONT SUPPORT BRACKET
  • 13
    25-20116 GROMMET, CHOKE KNOB - TOP COWL
    GROMMET, CHOKE KNOB - TOP COWL
  • 14
    12-20084 WASHER, TOP COWL STUD (5/16")
    WASHER, TOP COWL STUD (5/16")
  • 15
    11-826709111 NUT, TOP COWL STUD (5/16-24)
    NUT, TOP COWL STUD (5/16-24)
  • 16
    13-35048 LOCKWASHER, TOP COWL STUD (3/8")
    LOCKWASHER, TOP COWL STUD (3/8")
  • 17
    11-46335 NUT, TOP COWL STUD (3/8-24)
    NUT, TOP COWL STUD (3/8-24)
  • 18
    37690 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 19
    10-37370 SCREW, REAR SHIELD TO TOP COWL
    SCREW, REAR SHIELD TO TOP COWL
  • 20
    13-37371 LOCKWASHER, REAR SHIELD SCREW
    LOCKWASHER, REAR SHIELD SCREW
  • 21
    12-69056 WASHER, REAR SHIELD SCREW
    WASHER, REAR SHIELD SCREW
  • 22
    N.S.S. DECAL, REAR SHIELD - "MERC 500"
    DECAL, REAR SHIELD - "MERC 500"
  • 22
    N.S.S. DECAL, REAR SHIELD - "MERC 500"
    DECAL, REAR SHIELD - "MERC 500"
  • 23
    37702A1 TRIM MOULDING ASSEMBLY, TOP COWL
    TRIM MOULDING ASSEMBLY, TOP COWL
  • 24
    34433 BRACKET, TENSION - TRIM MOULDING
    BRACKET, TENSION - TRIM MOULDING
  • 25
    10-23015 SCREW, BRACKET AND TRIM MOULDING TO TOP COWL
    SCREW, BRACKET AND TRIM MOULDING TO TOP COWL
  • 26
    12-34434 WASHER, BRACKET FASTENING SCREW
    WASHER, BRACKET FASTENING SCREW
  • 27
    11-20110 NUT, BRACKET FASTENING SCREW
    NUT, BRACKET FASTENING SCREW
  • 28
    52899 BRACKET, REAR COWL SUPPORT
    BRACKET, REAR COWL SUPPORT
  • 29
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 30
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 31
    37685 HOUSING, STARTER
    HOUSING, STARTER
  • 32
    10-90073 SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")
    SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")
  • 33
    13-20202 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 34
    37691 PLATE, CABLE GUIDE
    PLATE, CABLE GUIDE
  • 35
    10-358811 SCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSING
    SCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSING
  • 36
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 36
    39835 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 37
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 37
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 38
    23-28912 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 39
    50-30994 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 39
    76053A1 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 40
    30596 PAWL, STARTER
    PAWL, STARTER
  • 41
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 42
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
  • 43
    45477A1 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 44
    26179 RETAINER, WAVE WASHER (NOT AS SHOWN)
    RETAINER, WAVE WASHER (NOT AS SHOWN)
  • 44
    39840 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 45
    12-26180 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 46
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 47
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 47
    66845 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 48
    45477A1 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 49
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 50
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 51
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
  • 52
    47904A2 BRACKET ASSEMBLY, FRONT SUPPORT
    BRACKET ASSEMBLY, FRONT SUPPORT
  • 53
    37921 FLANGE, RUBBER - FRONT SUPPORT BRACKET
    FLANGE, RUBBER - FRONT SUPPORT BRACKET
  • 54
    32-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
    TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
  • 55
    10-35386 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
