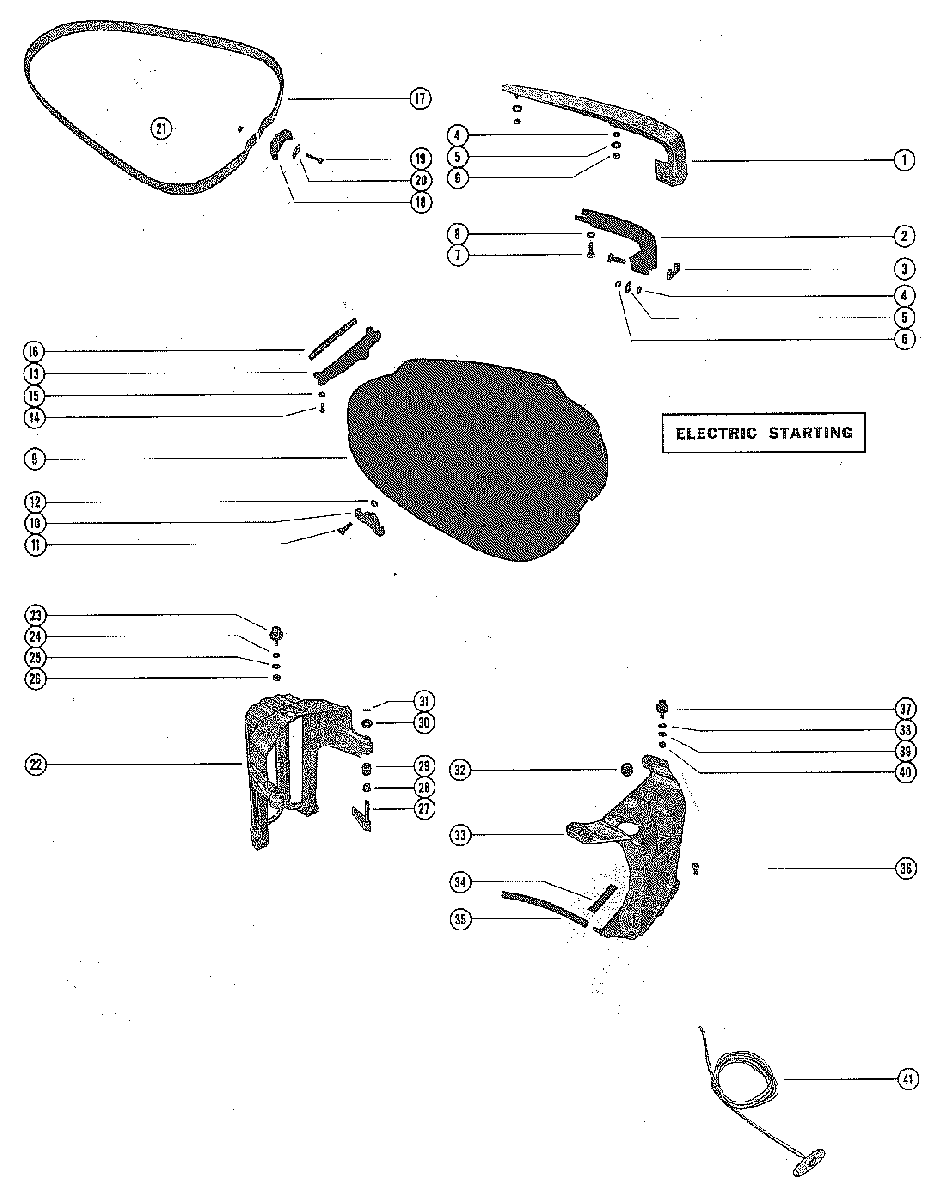

TOP COWL ASSEMBLY AND SUPPORT BRACKETS (ELECTRIC) для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
137679 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
237689 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
335496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
412-20533 WASHER, TOP COWL HANDLE STUD (9/16" O.D.)WASHER, TOP COWL HANDLE STUD (9/16" O.D.)
-
512-69057 WASHER, TOP COWL HANDLE STUD (3/4" O.D.)WASHER, TOP COWL HANDLE STUD (3/4" O.D.)
-
611-21825 NUT, TOP COWL HANDLE STUDNUT, TOP COWL HANDLE STUD
-
710-35386 SCREW, HANDLE TO TOP COWL (1")SCREW, HANDLE TO TOP COWL (1")
-
813-26993 LOCKWASHER, HANDLE TO TOP COWL SCREWLOCKWASHER, HANDLE TO TOP COWL SCREW
-
92117-4068A1 TOP COWLTOP COWL
-
1037411 BRACKET, TOP COWL LATCHBRACKET, TOP COWL LATCH
-
1110-37560 SCREW, LATCH BRACKET TO TOP COWLSCREW, LATCH BRACKET TO TOP COWL
-
1211-37556 NUT, LATCH BRACKET SCREWNUT, LATCH BRACKET SCREW
-
1327690 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
1410-37370 SCREW, REAR SHIELD TO TOP COWLSCREW, REAR SHIELD TO TOP COWL
-
1513-37371 LOCKWASHER, REAR SHIELD SCREWLOCKWASHER, REAR SHIELD SCREW
-
16N.S.S. DECAL, REAR SHIELD - "MERC 500"DECAL, REAR SHIELD - "MERC 500"
-
16N.S.S. DECAL, REAR SHIELD - "MERC 500"DECAL, REAR SHIELD - "MERC 500"
-
1737702A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
1834433 BRACKET, TENSION - TRIM MOULDINGBRACKET, TENSION - TRIM MOULDING
-
1910-23015 SCREW, BRACKET AND TRIM MOULDING TO TOP COWLSCREW, BRACKET AND TRIM MOULDING TO TOP COWL
-
2012-34434 WASHER, BRACKET FASTENING SCREWWASHER, BRACKET FASTENING SCREW
-
2111-20110 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
2252899 BRACKET, REAR COWL SUPPORTBRACKET, REAR COWL SUPPORT
-
2337640 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2413-26993 LOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNTLOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
-
2512-26825 WASHER, REAR SUPPORT BRACKET RUBBER MOUNTWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
-
2611-22053 NUT, REAR SUPPORT BRACKET RUBBER MOUNTNUT, REAR SUPPORT BRACKET RUBBER MOUNT
-
2737412 LEVER, CLAMPING - TOP COWLLEVER, CLAMPING - TOP COWL
-
2823-26819 BUSHING, TOP COWL CLAMPING LEVER (NYLON)BUSHING, TOP COWL CLAMPING LEVER (NYLON)
-
2923-31293 BUSHING, TOP COWL CLAMPING LEVER (RUBBER)BUSHING, TOP COWL CLAMPING LEVER (RUBBER)
-
3011-30428 FASTENER, TOP COWL CLAMPING LEVERFASTENER, TOP COWL CLAMPING LEVER
-
3117-29077 PIN, ROLL - TOP COWL CLAMPING LEVERPIN, ROLL - TOP COWL CLAMPING LEVER
-
3225-20116 GROMMET, CHOKE KNOT - FRONT SUPPORT BRACKETGROMMET, CHOKE KNOT - FRONT SUPPORT BRACKET
-
3347904A2 BRAKCET ASSEMBLY, FRONT SUPPORTBRAKCET ASSEMBLY, FRONT SUPPORT
-
3437921 FLANGE, RUBBER - FRONT SUPPORT BRACKETFLANGE, RUBBER - FRONT SUPPORT BRACKET
-
3532-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWLTUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
-
3610-35386 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
-
3731014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
3813-26992 LOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNTLOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
-
3912-69057 WASHER, FRONT SUPPORT BRACKET RUBBER MOUNTWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
-
4011-20088 NUT, FRONT SUPPORT BRACKET RUBBER MOUNTNUT, FRONT SUPPORT BRACKET RUBBER MOUNT
-
4147341A11 STARTER CABLE (FOR MANUAL STARTING ONLY)STARTER CABLE (FOR MANUAL STARTING ONLY)
-
--N.S.S. DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONSDECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
-
--N.S.S. DECAL, TOP COWL - MANUAL STARTING INSTRUCTIONSDECAL, TOP COWL - MANUAL STARTING INSTRUCTIONS
