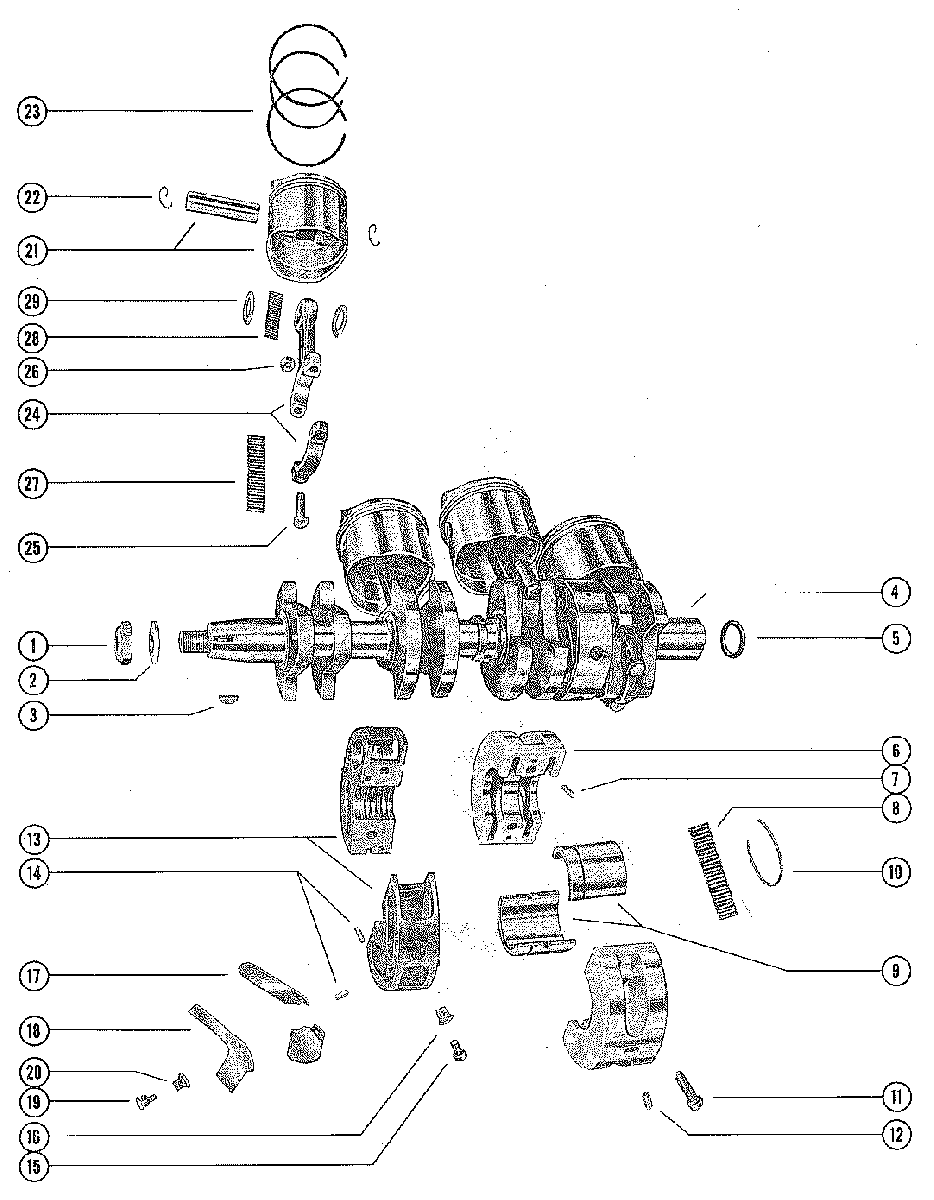

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4400-2976A2 CRANKSHAFTCRANKSHAFT
-
525-29619 "O" RING, DRIVE SHAFT SPLINE"O" RING, DRIVE SHAFT SPLINE
-
6500-5345A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
717-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
829-20046T BEARING, NEEDLEBEARING, NEEDLE
-
920047 RACE, OUTERRACE, OUTER
-
1053-20048 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1110-28666 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1217-20379 DOWEL PIN, (STEPPED)DOWEL PIN, (STEPPED)
-
13534-3267T25 MAIN BEARING ASSEMBLY ( VALVE TYPE)MAIN BEARING ASSEMBLY ( VALVE TYPE)
-
1417-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1510-25313 SCREW, MAIN BEARING CLAMPING (1/2")SCREW, MAIN BEARING CLAMPING (1/2")
-
1611-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1734-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1834-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1910-77280 SCREW, REED STOP MOUNTING (1/2")SCREW, REED STOP MOUNTING (1/2")
-
2011-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
21724-2537A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2240-20057 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2339-27841A12 RING, PISTONRING, PISTON
-
24600-2748A2 CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
-
2510-45379 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2611-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2729-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2829-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2912-28121 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--724-2553A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
-
--39-28616A12 RING, PISTON (.015 OVERSIZE)RING, PISTON (.015 OVERSIZE)
