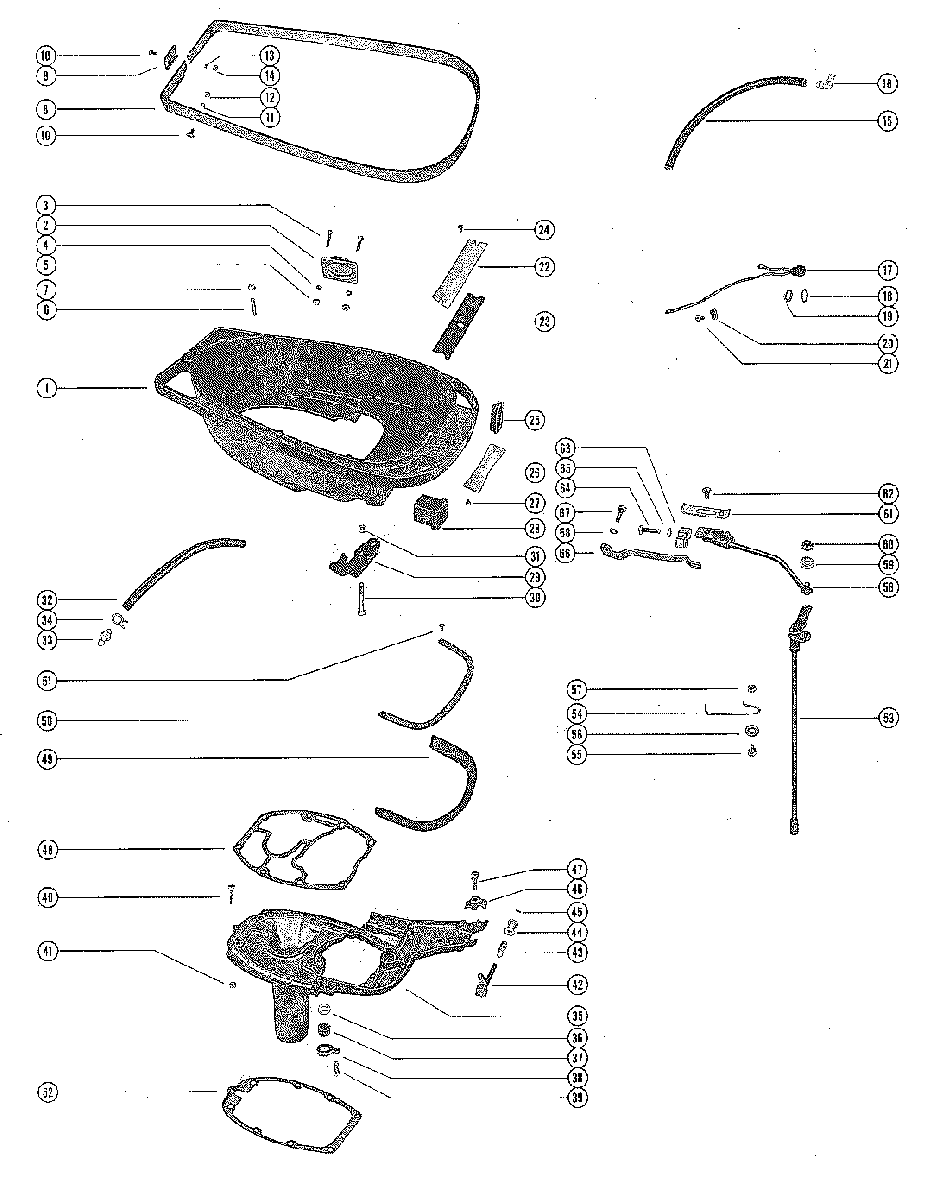

BOTTOM COWL ASSEMBLY AND SHIFT LINKAGE для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
12116-2990A1 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
229206 COVER, PLUG - BOTTOM COWL HARNESS HOLECOVER, PLUG - BOTTOM COWL HARNESS HOLE
-
310-45893 SCREW, PLUG COVER TO BOTTOM COWLSCREW, PLUG COVER TO BOTTOM COWL
-
413-26995 LOCKWASHER, PLUG COVER SCREW ( REMOVE - NOT REQUIRED ON ELE)LOCKWASHER, PLUG COVER SCREW ( REMOVE - NOT REQUIRED ON ELE)
-
511-26419 NUT, PLUG COVER SCREWNUT, PLUG COVER SCREW
-
616-68169 STUD, BOTTOM COWL TO REAR SUPPORT BRACKETSTUD, BOTTOM COWL TO REAR SUPPORT BRACKET
-
711-8267089 NUT, BOTTOM COWL STUDNUT, BOTTOM COWL STUD
-
837703A1 TRIM MOULDING ASSEMBLY, BOTTOM COWLTRIM MOULDING ASSEMBLY, BOTTOM COWL
-
938046 SPLICER, TRIM MOULDING - REARSPLICER, TRIM MOULDING - REAR
-
1010-29226 SCREW, DECORATIVE - TRIM MOULDING TO BOTTOM COWLSCREW, DECORATIVE - TRIM MOULDING TO BOTTOM COWL
-
1112-24671 WASHER, FIBER - MOULDING SCREWWASHER, FIBER - MOULDING SCREW
-
1211-29225 NUT, NYLON CAP - MOULDING SCREWNUT, NYLON CAP - MOULDING SCREW
-
1313-26995 LOCKWASHER, MOULDING SCREWLOCKWASHER, MOULDING SCREW
-
1411-26419 NUT, MOULDING SCREWNUT, MOULDING SCREW
-
1532-8M0108355 TUBE, VENT - MAGNETO OUTLET (10 1/2")TUBE, VENT - MAGNETO OUTLET (10 1/2")
-
1532-8M0108355 TUBE, VENT - MAGNETO OUTLET (12 5/8")TUBE, VENT - MAGNETO OUTLET (12 5/8")
-
1622-31521 ELBOW, MAGNETO VENT TUBE TO BOTTOM COWLELBOW, MAGNETO VENT TUBE TO BOTTOM COWL
-
1721104A2 CONNECTOR BASE ASSEMBLYCONNECTOR BASE ASSEMBLY
-
1813-21972 LOCKWASHER, CONNECTOR BASELOCKWASHER, CONNECTOR BASE
-
1911-21971 NUT, CONNECTOR BASE TO BOTTOM COWLNUT, CONNECTOR BASE TO BOTTOM COWL
-
2054-25231 CLIP, CONNECTOR BASE LEAD WIRECLIP, CONNECTOR BASE LEAD WIRE
-
2110-22815 SCREW, LEAD WIRE CLIP TO BOTTOM COWLSCREW, LEAD WIRE CLIP TO BOTTOM COWL
-
2260948A1 COVER PLATE ASSEMBLYCOVER PLATE ASSEMBLY
-
2337944 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
2410-8M0113176 SCREW, COVER PLATE TO BOTTOM COWLSCREW, COVER PLATE TO BOTTOM COWL
-
2537695 BOOT, CONTROL CABLEBOOT, CONTROL CABLE
-
2623760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
2710-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
2837637 BOOT, FUEL CONNECTORBOOT, FUEL CONNECTOR
-
2937692 SUPPORT, EXTERNAL WIRING HANRESSSUPPORT, EXTERNAL WIRING HANRESS
-
3010-21937 SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
-
3111-20184 NUT, HARNESS SUPPORT SCREWNUT, HARNESS SUPPORT SCREW
-
3232-8M0108355 HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWLHOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL
-
3322-291112 CONNECTOR, WATER TELL TALE HOSE - BOTTOM COWLCONNECTOR, WATER TELL TALE HOSE - BOTTOM COWL
-
3454-22976 CLAMP, WATER TELL TALE HOSE TO CONNECTORCLAMP, WATER TELL TALE HOSE TO CONNECTOR
-
3542819A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
3612-38453 WASHER, NYLON - WATER INLET TUBE STARTER WITH SERIAL #181
SERIAL 01811269-09999999WASHER, NYLON - WATER INLET TUBE STARTER WITH SERIAL #181
SERIAL 01811269-09999999 -
3726-38452 SEAL, RUBBER - WATER TUBE
SERIAL 01811269-09999999SEAL, RUBBER - WATER TUBE
SERIAL 01811269-09999999 -
3726-20232 SEAL, RUBBER - EXHAUST EXTENSION PLATE (USE THRU SERIAL #18)
SERIAL 00000000-01811268SEAL, RUBBER - EXHAUST EXTENSION PLATE (USE THRU SERIAL #18)
SERIAL 00000000-01811268 -
3838500 RETAINER, WATER TUBE SEAL STARTED WITH SERIAL #1811269
SERIAL 01811269-09999999RETAINER, WATER TUBE SEAL STARTED WITH SERIAL #1811269
SERIAL 01811269-09999999 -
3910-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE
SERIAL 01811269-09999999SCREW, RETAINER TO EXHAUST EXTENSION PLATE
SERIAL 01811269-09999999 -
4010-56500 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
SERIAL 01811269-09999999SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
SERIAL 01811269-09999999 -
4111-20184 NUT, EXHAUST EXTENSION PLATE SCREWNUT, EXHAUST EXTENSION PLATE SCREW
-
4259037A2 LEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLESLEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLES
-
4324-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVERSPRING, COMPRESSION - QUICK DISCONNECT LEVER
-
4423-37927 BEARING, NYLON - QUICK DISCONNECT LEVERBEARING, NYLON - QUICK DISCONNECT LEVER
-
4517-239281 PIN, ROLL - QUICK DISCONNECT LEVERPIN, ROLL - QUICK DISCONNECT LEVER
-
4637926 RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATERETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
-
4710-37923 SCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATESCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATE
-
4827-796501 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
4938156 SEAL, RUBBER - EXHAUST EXTENSION PLATESEAL, RUBBER - EXHAUST EXTENSION PLATE
-
5099136 STRIP, RUBBER SEAL RETAININGSTRIP, RUBBER SEAL RETAINING
-
5110-37571 SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATESCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE
-
5227-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
5325172A1 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
5325162A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
5424-37693 SPRING, DETENT - SHIFT SHAFTSPRING, DETENT - SHIFT SHAFT
-
5510-98256 SCREW, DETENT SPRING TO EXHAUST EXTENSION PLATESCREW, DETENT SPRING TO EXHAUST EXTENSION PLATE
-
5612-69057 WASHER, DETENT SPRING SCREWWASHER, DETENT SPRING SCREW
-
5711-20184 NUT, DETENT SPRING SCREWNUT, DETENT SPRING SCREW
-
5837948A5 ACTUATOR, SHIFT CONTROLACTUATOR, SHIFT CONTROL
-
5912-26907 WASHER, SHIFT CONTROL ACTUATORWASHER, SHIFT CONTROL ACTUATOR
-
6011-8267089 NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFTNUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
-
6124-37934 SPRING, QUICK DISCONNECT - SHIFT CABLESPRING, QUICK DISCONNECT - SHIFT CABLE
-
6210-38069 SCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATORSCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATOR
-
6337932 BEARING, NYLON - SHIFT CONTROL ACTUATORBEARING, NYLON - SHIFT CONTROL ACTUATOR
-
6410-36137 SCREW, BEARING TO SHIFT CONTROL ACTUATORSCREW, BEARING TO SHIFT CONTROL ACTUATOR
-
6513-21272 LOCKWASHER, BEARING SCREWLOCKWASHER, BEARING SCREW
-
6637935 RAIL, SHIFT CONTROL BEARINGRAIL, SHIFT CONTROL BEARING
-
6710-69028 SCREW, RAIL TO EXHAUST MANIFOLD COVERSCREW, RAIL TO EXHAUST MANIFOLD COVER
-
6813-26992 LOCKWASHER, RAIL SCREWLOCKWASHER, RAIL SCREW
