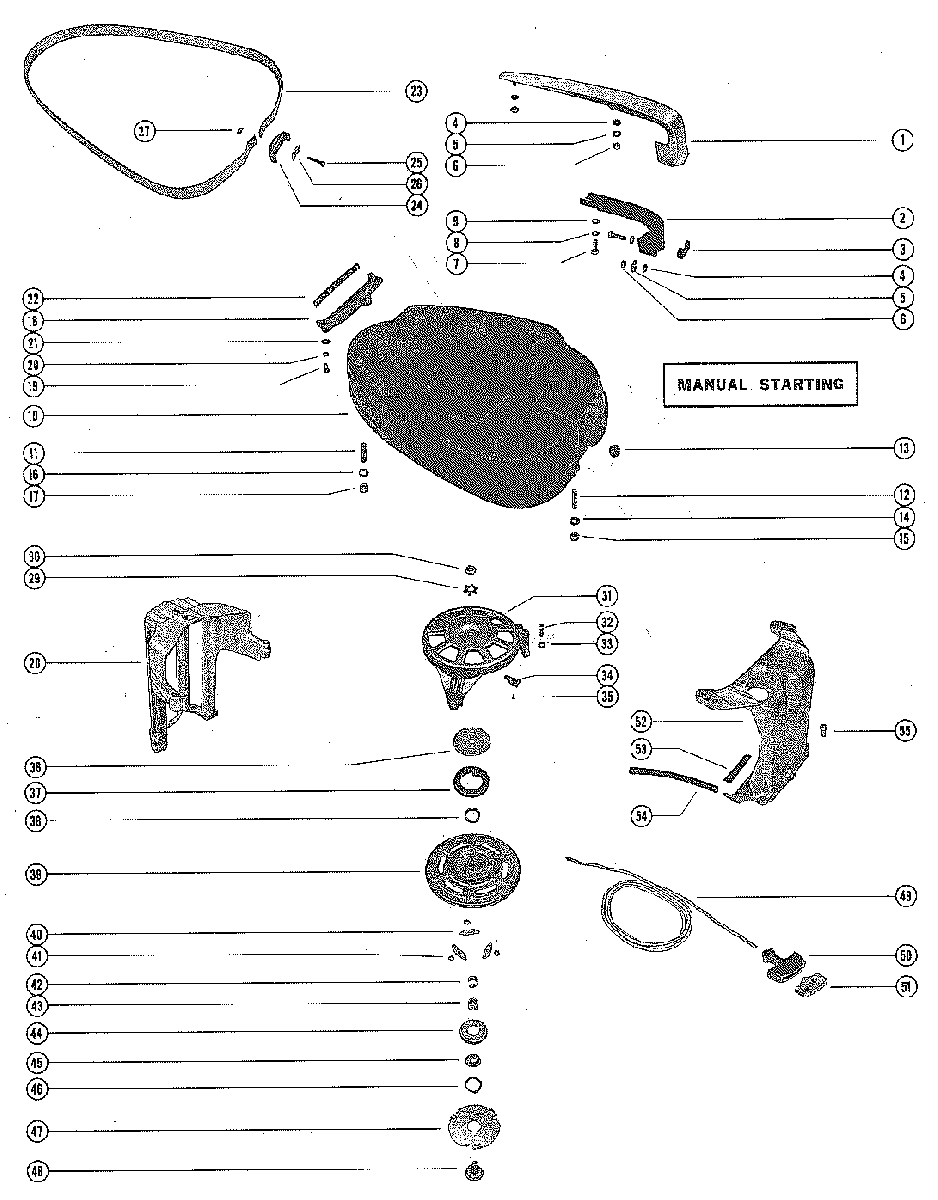

TOP COWL ASSEMBLY, STARTER SHEAVE & SUPPORT BRACKETS MANUAL для Mercury - 500 1755549 THRU 2097444
-
№АртикулНазвание
-
137679 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
237689 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
335496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
412-20533 WASHER, TOP COWL HANDLE STUD (9/16" O.D.)WASHER, TOP COWL HANDLE STUD (9/16" O.D.)
-
512-69057 WASHER, TOP COWL HANDLE STUD (3/4" O.D.)WASHER, TOP COWL HANDLE STUD (3/4" O.D.)
-
611-21825 NUT, TOP COWL HANDLE STUDNUT, TOP COWL HANDLE STUD
-
710-35386 SCREW, HANDLE TO TOP COWL (1")SCREW, HANDLE TO TOP COWL (1")
-
813-26993 LOCKWASHER, HANDLE TO TOP COWL SCREWLOCKWASHER, HANDLE TO TOP COWL SCREW
-
912-26825 WASHER, HANDLE TO TOP COWL SCREWWASHER, HANDLE TO TOP COWL SCREW
-
102117-2479A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
1116-21550 STUD, REAR - TOP COWL TO REAR SUPPORT BRACKETSTUD, REAR - TOP COWL TO REAR SUPPORT BRACKET
-
1216-21553 STUD, FRONT - TOP COWL TO FRONT SUPPORT BRACKETSTUD, FRONT - TOP COWL TO FRONT SUPPORT BRACKET
-
1325-20116 GROMMET, CHOKE KNOB - TOP COWLGROMMET, CHOKE KNOB - TOP COWL
-
1412-20084 WASHER, TOP COWL STUD (5/16")WASHER, TOP COWL STUD (5/16")
-
1511-826709111 NUT, TOP COWL STUD (5/16-24)NUT, TOP COWL STUD (5/16-24)
-
1613-35048 LOCKWASHER, TOP COWL STUD (3/8")LOCKWASHER, TOP COWL STUD (3/8")
-
1711-46335 NUT, TOP COWL STUD (3/8-24)NUT, TOP COWL STUD (3/8-24)
-
1837690 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
1910-37370 SCREW, REAR SHIELD TO TOP COWLSCREW, REAR SHIELD TO TOP COWL
-
2013-37371 LOCKWASHER, REAR SHIELD SCREWLOCKWASHER, REAR SHIELD SCREW
-
2112-69056 WASHER, REAR SHIELD SCREWWASHER, REAR SHIELD SCREW
-
22N.S.S. DECAL, REAR SHIELD - "MERC 500"DECAL, REAR SHIELD - "MERC 500"
-
22N.S.S. DECAL, REAR SHIELD - "MERC 500"DECAL, REAR SHIELD - "MERC 500"
-
2337702A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
2434433 BRACKET, TENSION - TRIM MOULDINGBRACKET, TENSION - TRIM MOULDING
-
2510-23015 SCREW, BRACKET AND TRIM MOULDING TO TOP COWLSCREW, BRACKET AND TRIM MOULDING TO TOP COWL
-
2612-34434 WASHER, BRACKET FASTENING SCREWWASHER, BRACKET FASTENING SCREW
-
2711-20110 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
2852899 BRACKET, REAR COWL SUPPORTBRACKET, REAR COWL SUPPORT
-
2914-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3011-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3137685 HOUSING, STARTERHOUSING, STARTER
-
3210-90073 SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")
-
3313-20202 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
3437691 PLATE, CABLE GUIDEPLATE, CABLE GUIDE
-
3510-358811 SCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSINGSCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSING
-
3620155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
3639835 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
3724-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
3724-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
3823-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
3950-30994 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
3976053A1 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
4030596 PAWL, STARTERPAWL, STARTER
-
4113-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
4223-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
4345477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
4426179 RETAINER, WAVE WASHER (NOT AS SHOWN)RETAINER, WAVE WASHER (NOT AS SHOWN)
-
4439840 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
4512-26180 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
4613-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
4730595 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
4766845 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
4845477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
4950-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
5028747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
5179470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
5247904A2 BRACKET ASSEMBLY, FRONT SUPPORTBRACKET ASSEMBLY, FRONT SUPPORT
-
5337921 FLANGE, RUBBER - FRONT SUPPORT BRACKETFLANGE, RUBBER - FRONT SUPPORT BRACKET
-
5432-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWLTUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
-
5510-35386 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
