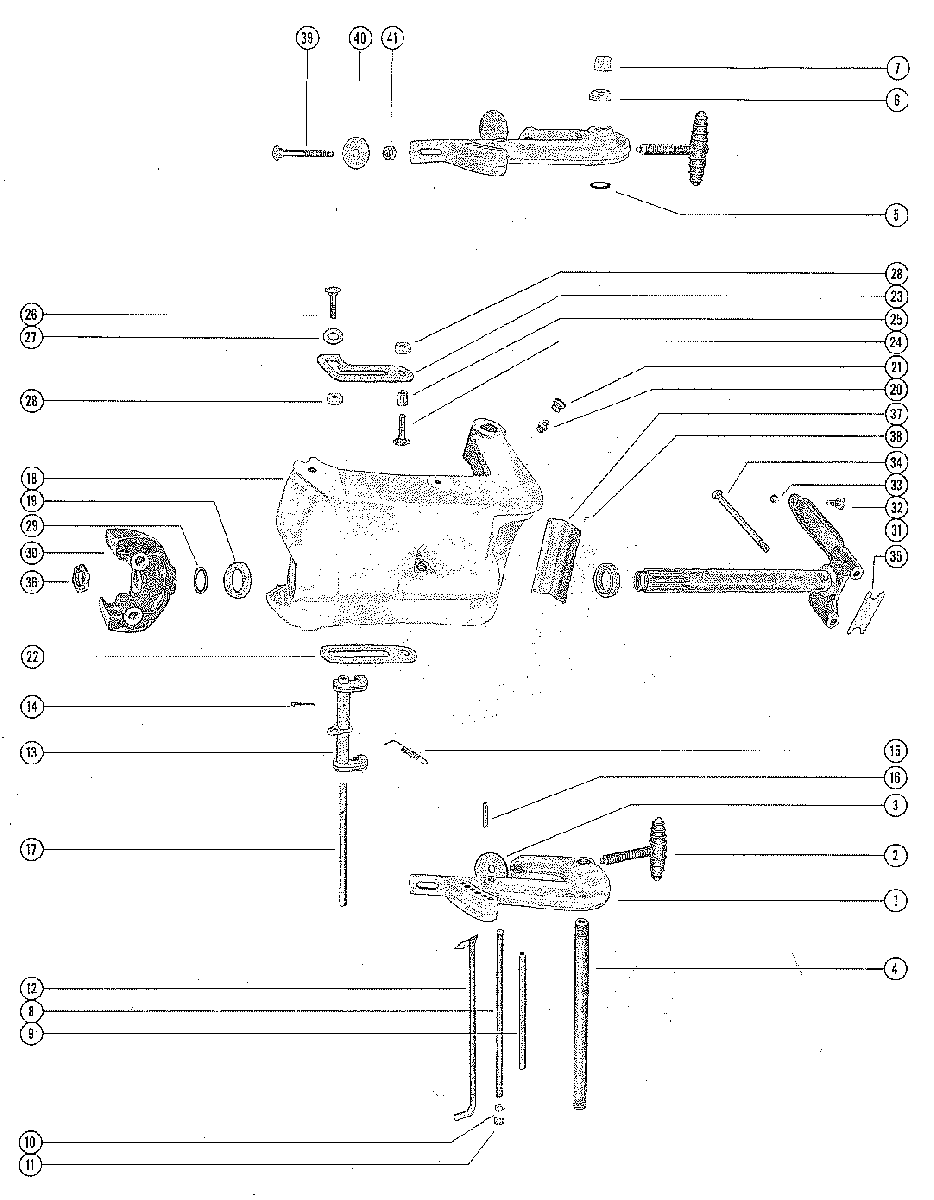

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 500 1755549 THRU 2097444

  • №
    Артикул
    Название
  • 1
    1440-1797A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE ENDS
    CAP, PLASTIC - TILT TUBE ENDS
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, STUD TO CLAMP BRACKET
    NUT, STUD TO CLAMP BRACKET
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    26903A3 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 14
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 15
    24-29821 SPRING, TENSION - REVERSE LOCK
    SPRING, TENSION - REVERSE LOCK
  • 16
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 17
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 18
    1442-2501A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 18
    1442-2502A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 19
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 20
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 21
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 23
    29056 LEVER, TILT STOP - PORT SIDE
    LEVER, TILT STOP - PORT SIDE
  • 22
    29057 LEVER, TILT STOP - STARBOARD SIDE
    LEVER, TILT STOP - STARBOARD SIDE
  • 24
    10-27791 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 25
    23-29055 SPACER, TILT STOP LEVER ANCHOR SCREW
    SPACER, TILT STOP LEVER ANCHOR SCREW
  • 26
    10-27790 SCREW, RETAINING - TILT STOP LEVER
    SCREW, RETAINING - TILT STOP LEVER
  • 27
    13-20846 WASHER, WAVE - RETAINING SCREW (PORT SIDE)
    WASHER, WAVE - RETAINING SCREW (PORT SIDE)
  • 28
    11-20184 NUT, ANCHOR AND RETAINING SCREW
    NUT, ANCHOR AND RETAINING SCREW
  • 29
    12-25176 WASHER, SWIVEL PIN TO BOTTO YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTO YOKE (.060)
  • 29
    12-26837 WASHER, SWIVEL PIN TO BOTOTM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTOTM YOKE (.065)
  • 30
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 31
    17-28418A5 SWIVEL PIN AND STEERING ARM ASSY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSY (SHORT SHAFT)
  • 31
    17-28419A5 SWIVEL PIN AND STEERING ARM ASSY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSY (LONG SHAFT)
  • 32
    10-31830 SCREW, STEERING ARM TO RIDE GUIDE KIT
    SCREW, STEERING ARM TO RIDE GUIDE KIT
  • 33
    11-8M0042636 NUT, STEERING ARM SCREW
    NUT, STEERING ARM SCREW
  • 34
    10-33986 BOLT, UPPER MOUNT TO SWIVEL PIN
    BOLT, UPPER MOUNT TO SWIVEL PIN
  • 35
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 36
    11-71956 NUT, RETAINING - SWIVEL PIN
    NUT, RETAINING - SWIVEL PIN
  • 37
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 38
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 39
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 40
    12-46765 WASHER, CLAMP BRACKET TRANSOM BOLT
    WASHER, CLAMP BRACKET TRANSOM BOLT
  • 41
    11-82670912 NUT, CLAMP BRACKET TRANSOM BOLT
    NUT, CLAMP BRACKET TRANSOM BOLT
