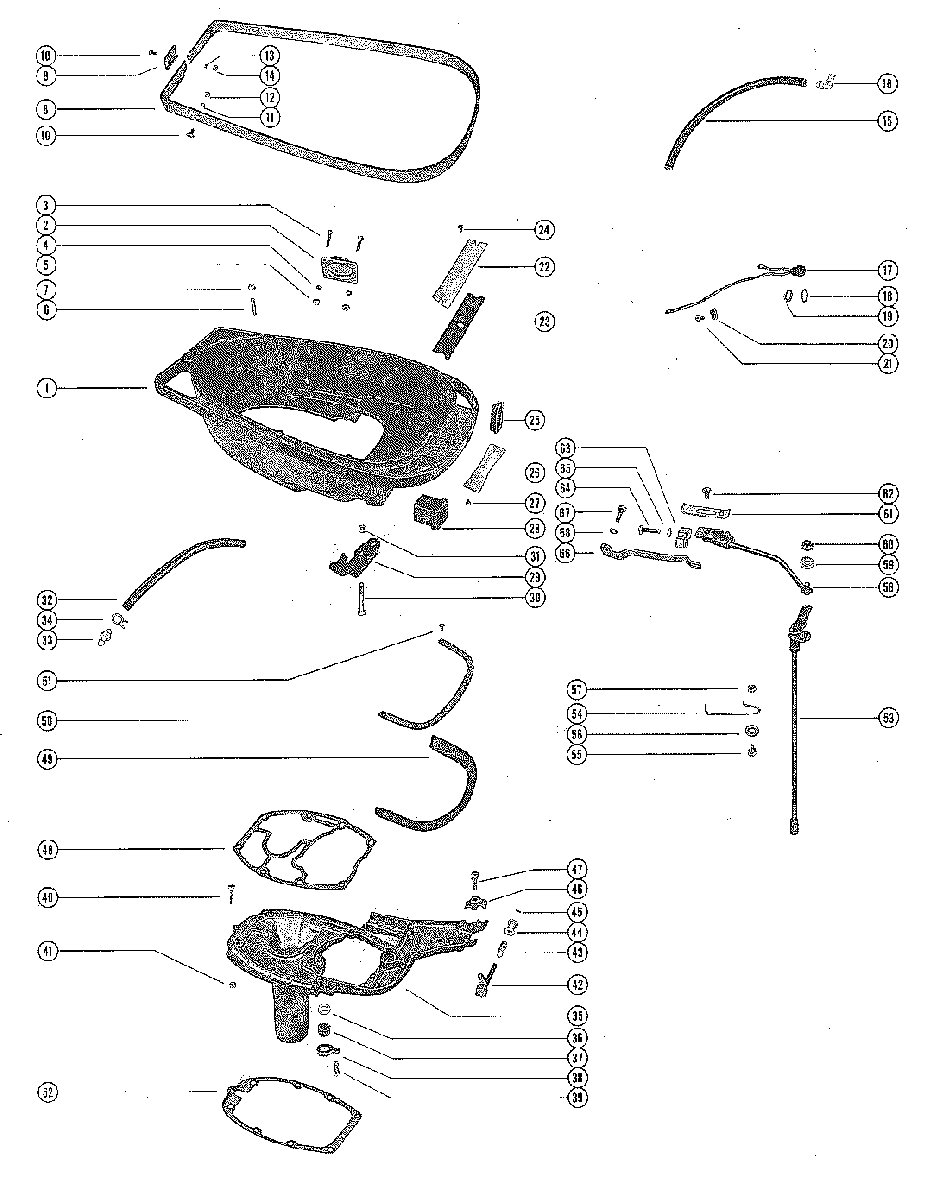

BOTTOM COWL ASSEMBLY AND SHIFT LINKAGE для Mercury - 500 1755549 THRU 2097444

  • №
    Артикул
    Название
  • 1
    2116-2990A1 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • 2
    29206 COVER, PLUG - BOTTOM COWL HARNESS HOLE
    COVER, PLUG - BOTTOM COWL HARNESS HOLE
  • 3
    10-45893 SCREW, PLUG COVER TO BOTTOM COWL
    SCREW, PLUG COVER TO BOTTOM COWL
  • 4
    13-26995 LOCKWASHER, PLUG COVER SCREW (REMOVE - NOT REQUIRED ON ELE)
    LOCKWASHER, PLUG COVER SCREW (REMOVE - NOT REQUIRED ON ELE)
  • 5
    11-26419 NUT, PLUG COVER SCREW
    NUT, PLUG COVER SCREW
  • 6
    16-68169 STUD, BOTTOM COWL TO REAR SUPPORT BRACKET
    STUD, BOTTOM COWL TO REAR SUPPORT BRACKET
  • 7
    11-8267089 NUT, BOTTOM COWL STUD
    NUT, BOTTOM COWL STUD
  • 8
    37703A1 TRIM MOULDING ASSEMBLY, BOTTOM COWL
    TRIM MOULDING ASSEMBLY, BOTTOM COWL
  • 9
    38046 SPLICER, TRIM MOULDING - REAR
    SPLICER, TRIM MOULDING - REAR
  • 10
    10-29226 SCREW, DECORATIVE - TRIM MOULDING TO BOTTOM COWL
    SCREW, DECORATIVE - TRIM MOULDING TO BOTTOM COWL
  • 11
    12-24671 WASHER, FIBER - MOULDING SCREW
    WASHER, FIBER - MOULDING SCREW
  • 12
    11-29225 NUT, NYLON CAP - MOULDING SCREW
    NUT, NYLON CAP - MOULDING SCREW
  • 13
    13-26995 LOCKWASHER, MOULDING SCREW
    LOCKWASHER, MOULDING SCREW
  • 14
    11-26419 NUT, MOULDING SCREW
    NUT, MOULDING SCREW
  • 15
    32-8M0108355 TUBE, VENT - MAGNETO OUTLET (10 1/2")
    TUBE, VENT - MAGNETO OUTLET (10 1/2")
  • 15
    32-8M0108355 TUBE, VENT - MAGNETO OUTLET (12 5/8")
    TUBE, VENT - MAGNETO OUTLET (12 5/8")
  • 16
    22-31521 ELBOW, MAGNETO VENT TUBE TO BOTTOM COWL
    ELBOW, MAGNETO VENT TUBE TO BOTTOM COWL
  • 17
    21104A2 CONNECTOR BASE ASSEMBLY
    CONNECTOR BASE ASSEMBLY
  • 18
    13-21972 LOCKWASHER, CONNECTOR BASE
    LOCKWASHER, CONNECTOR BASE
  • 19
    11-21971 NUT, CONNECTOR BASE TO BOTTOM COWL
    NUT, CONNECTOR BASE TO BOTTOM COWL
  • 20
    54-25231 CLIP, CONNECTOR BASE LEAD WIRE
    CLIP, CONNECTOR BASE LEAD WIRE
  • 21
    10-22815 SCREW, LEAD WIRE CLIP TO BOTTOM COWL
    SCREW, LEAD WIRE CLIP TO BOTTOM COWL
  • 22
    60948A1 COVER PLATE ASSEMBLY
    COVER PLATE ASSEMBLY
  • 23
    37944 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 24
    10-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL
    SCREW, COVER PLATE TO BOTTOM COWL
  • 25
    37695 BOOT, CONTROL CABLE
    BOOT, CONTROL CABLE
  • 26
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 27
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 28
    37637 BOOT, FUEL CONNECTOR
    BOOT, FUEL CONNECTOR
  • 29
    37692 SUPPORT, EXTERNAL WIRING HANRESS
    SUPPORT, EXTERNAL WIRING HANRESS
  • 30
    10-21937 SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
    SCREW, HARNESS SUPPORT TO BOTTOM COWL (2")
  • 31
    11-20184 NUT, HARNESS SUPPORT SCREW
    NUT, HARNESS SUPPORT SCREW
  • 32
    32-8M0108355 HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL
    HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL
  • 33
    22-291112 CONNECTOR, WATER TELL TALE HOSE - BOTTOM COWL
    CONNECTOR, WATER TELL TALE HOSE - BOTTOM COWL
  • 34
    54-22976 CLAMP, WATER TELL TALE HOSE TO CONNECTOR
    CLAMP, WATER TELL TALE HOSE TO CONNECTOR
  • 35
    42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 36
    12-38453 WASHER, NYLON - WATER INLET TUBE STARTER WITH SERIAL #181
    SERIAL 01811269-09999999
    WASHER, NYLON - WATER INLET TUBE STARTER WITH SERIAL #181
    SERIAL 01811269-09999999
  • 37
    26-38452 SEAL, RUBBER - WATER TUBE
    SERIAL 01811269-09999999
    SEAL, RUBBER - WATER TUBE
    SERIAL 01811269-09999999
  • 37
    26-20232 SEAL, RUBBER - EXHAUST EXTENSION PLATE (USE THRU SERIAL #18)
    SERIAL 00000000-01811268
    SEAL, RUBBER - EXHAUST EXTENSION PLATE (USE THRU SERIAL #18)
    SERIAL 00000000-01811268
  • 38
    38500 RETAINER, WATER TUBE SEAL STARTED WITH SERIAL #1811269
    SERIAL 01811269-09999999
    RETAINER, WATER TUBE SEAL STARTED WITH SERIAL #1811269
    SERIAL 01811269-09999999
  • 39
    10-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE
    SERIAL 01811269-09999999
    SCREW, RETAINER TO EXHAUST EXTENSION PLATE
    SERIAL 01811269-09999999
  • 40
    10-56500 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    SERIAL 01811269-09999999
    SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    SERIAL 01811269-09999999
  • 41
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 42
    59037A2 LEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLES
    LEVER, QUICK DISCONNECT - THROTTLE AND SHIFT CABLES
  • 43
    24-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVER
    SPRING, COMPRESSION - QUICK DISCONNECT LEVER
  • 44
    23-37927 BEARING, NYLON - QUICK DISCONNECT LEVER
    BEARING, NYLON - QUICK DISCONNECT LEVER
  • 45
    17-239281 PIN, ROLL - QUICK DISCONNECT LEVER
    PIN, ROLL - QUICK DISCONNECT LEVER
  • 46
    37926 RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
    RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE
  • 47
    10-37923 SCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATE
    SCREW, BEARING RETAINER TO EXHAUST EXTENSION PLATE
  • 48
    27-796501 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 49
    38156 SEAL, RUBBER - EXHAUST EXTENSION PLATE
    SEAL, RUBBER - EXHAUST EXTENSION PLATE
  • 50
    99136 STRIP, RUBBER SEAL RETAINING
    STRIP, RUBBER SEAL RETAINING
  • 51
    10-37571 SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE
    SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE
  • 52
    27-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 53
    25172A1 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 53
    25162A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 54
    24-37693 SPRING, DETENT - SHIFT SHAFT
    SPRING, DETENT - SHIFT SHAFT
  • 55
    10-98256 SCREW, DETENT SPRING TO EXHAUST EXTENSION PLATE
    SCREW, DETENT SPRING TO EXHAUST EXTENSION PLATE
  • 56
    12-69057 WASHER, DETENT SPRING SCREW
    WASHER, DETENT SPRING SCREW
  • 57
    11-20184 NUT, DETENT SPRING SCREW
    NUT, DETENT SPRING SCREW
  • 58
    37948A5 ACTUATOR, SHIFT CONTROL
    ACTUATOR, SHIFT CONTROL
  • 59
    12-26907 WASHER, SHIFT CONTROL ACTUATOR
    WASHER, SHIFT CONTROL ACTUATOR
  • 60
    11-8267089 NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
    NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT
  • 61
    24-37934 SPRING, QUICK DISCONNECT - SHIFT CABLE
    SPRING, QUICK DISCONNECT - SHIFT CABLE
  • 62
    10-38069 SCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATOR
    SCREW, QUICK DISCONNECT SPRING TO SHIFT CONTROL ACTUATOR
  • 63
    37932 BEARING, NYLON - SHIFT CONTROL ACTUATOR
    BEARING, NYLON - SHIFT CONTROL ACTUATOR
  • 64
    10-36137 SCREW, BEARING TO SHIFT CONTROL ACTUATOR
    SCREW, BEARING TO SHIFT CONTROL ACTUATOR
  • 65
    13-21272 LOCKWASHER, BEARING SCREW
    LOCKWASHER, BEARING SCREW
  • 66
    37935 RAIL, SHIFT CONTROL BEARING
    RAIL, SHIFT CONTROL BEARING
  • 67
    10-69028 SCREW, RAIL TO EXHAUST MANIFOLD COVER
    SCREW, RAIL TO EXHAUST MANIFOLD COVER
  • 68
    13-26992 LOCKWASHER, RAIL SCREW
    LOCKWASHER, RAIL SCREW
