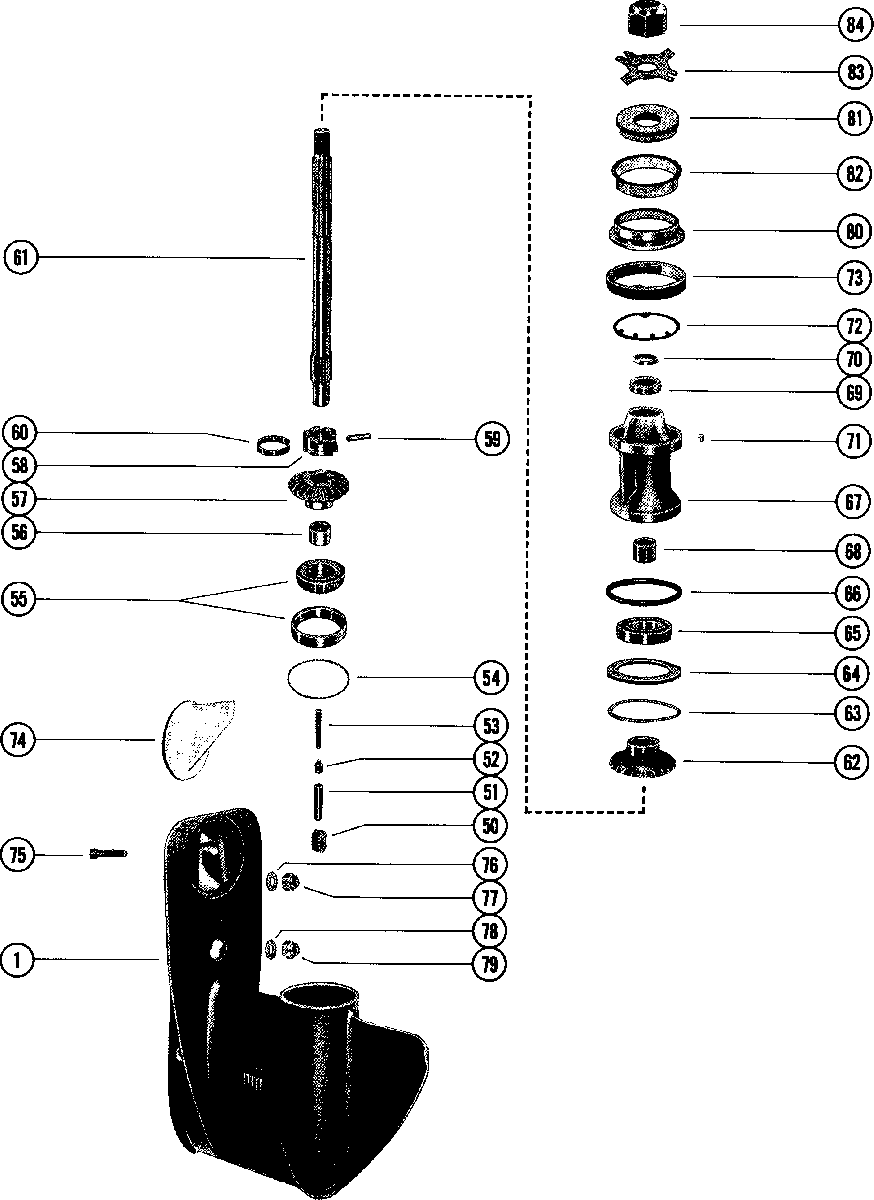

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 6)(PAGE 2) для Mercury - 500, 50 4357640 THRU 5531629

  • №
    Артикул
    Название
  • -
    1643-6038A5 GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
    GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
  • -
    1643-6038A7 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
  • -
    1643-6038A17 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • -
    1643-6038A18 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY
    (SEE "GEAR HOUSING ASSEMBLY, COMPLETE" FOR BREAKDOWN
    GEAR HOUSING ASSEMBLY
    (SEE "GEAR HOUSING ASSEMBLY, COMPLETE" FOR BREAKDOWN
  • 50
    760394 CAM, SHIFT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    CAM, SHIFT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 50
    760394 CAM, SHIFT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    CAM, SHIFT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 51
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 52
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 53
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 54
    15-38374A1 SHIM. BEARING CUP TO GEAR HOUSING (.002-3-5-10)
    SHIM. BEARING CUP TO GEAR HOUSING (.002-3-5-10)
  • 55
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 56
    31-21739 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 57
    43-55608T4 FORWARD GEAR
    FORWARD GEAR
  • 58
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 60
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 61
    44-75365 SHAFT, PROPELLER
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    SHAFT, PROPELLER
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 61
    44-75365 SHAFT PROPELLER
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    SHAFT PROPELLER
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 62
    43-79158T REVERSE GEAR
    REVERSE GEAR
  • 63
    15-20927A1 SHIM, THRUST WASHER TO GEAR HSG (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HSG (.002-3-5-10)
  • 64
    12-32004 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 65
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 66
    25-31986 "O RING, BEARING CARRIER
    "O RING, BEARING CARRIER
  • 67
    69386T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 68
    31-21700 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 69
    26-69188 OIL SEAL, BEARING CARRIER (DOUBLE LIP)
    OIL SEAL, BEARING CARRIER (DOUBLE LIP)
  • 70
    26-69189 OIL SEAL, LINE CUTTER
    OIL SEAL, LINE CUTTER
  • 71
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 72
    14-53012 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 73
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 75
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 76
    12-856774 WASHER, DRIVE SHAFT HOUSING STUD (3/8")
    WASHER, DRIVE SHAFT HOUSING STUD (3/8")
  • 77
    11-8M0042636 NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
    NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
  • 78
    12-65791 WASHER, DRIVE SHAFT HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING STUD (7/16")
  • 79
    11-34933 NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
    NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
  • 80
    65758 THRUST HUB, FRONT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649 BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    THRUST HUB, FRONT
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649 BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 81
    62124A1 THRUST HUB ASSEMBLY, REAR
    THRUST HUB ASSEMBLY, REAR
  • 82
    12-31992 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 80
    73345A1 THRUST HUB, FRONT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    THRUST HUB, FRONT
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 83
    14-76281 TAB WASHER, PROPELLER
    TAB WASHER, PROPELLER
  • 84
    11-69578Q1 NUT, PROPELLER
    NUT, PROPELLER
  • -
    27-72486A32 GASKET SET
    GASKET SET
