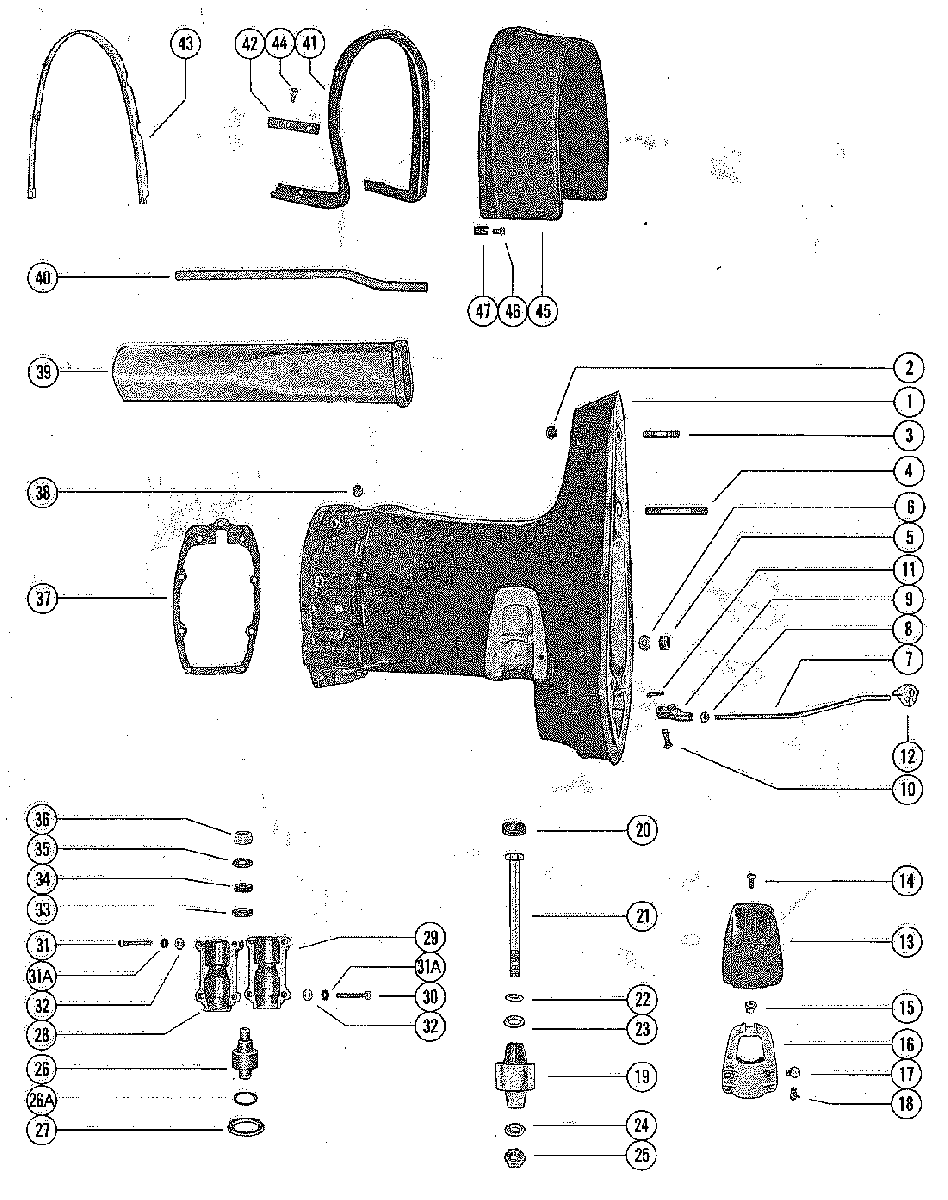

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500, 50 4357640 THRU 5531629
-
№АртикулНазвание
-
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
11593-7513A12 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWDRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY ( LONG SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPDRIVE SHAFT HOUSING ASSEMBLY ( LONG SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPDRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
219-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
316-8M0022145 STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4") -
416-57935 STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (3") -
511-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16") -
612-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
747835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
747836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
811-28770 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
947837 ROD END, PUSH RODROD END, PUSH ROD
-
1024-78203A2 PIN, REVERSE LOCK LEVER
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOWPIN, REVERSE LOCK LEVER
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW -
1118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
12933361 GUIDE, PUSH ROD
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOWGUIDE, PUSH ROD
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW -
12933361 GUIDE, PUSH ROD
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPGUIDE, PUSH ROD
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
1335474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1410-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
-
1511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1669592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1710-29256 SCREW
LOWER MOUNT CLAMP/DRIVE SHAFT HOUSINGSCREW
LOWER MOUNT CLAMP/DRIVE SHAFT HOUSING -
1824-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
1975304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2025067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
2110-75284 SCREW, LOWER MOUNT SCREWSCREW, LOWER MOUNT SCREW
-
2212-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2312-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
2412-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2511-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2675305 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
26A25-65936 "O" RING, UPPER MOUNT
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW"O" RING, UPPER MOUNT
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
2724929 PACKING "U" CUP - UPPER MOOUNT COVERSPACKING "U" CUP - UPPER MOOUNT COVERS
-
2879680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2979680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3010-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")SCREW, UPPER MOUNT COVER - REAR (1 1/2")
-
3110-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
-
3268431 NUT, UPPER COVER SCREWNUT, UPPER COVER SCREW
-
2796401 SEAL, BELLOWS - UPPER MOUNT
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPSEAL, BELLOWS - UPPER MOUNT
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
2879680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2979681 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3010-69029 SCREW, UPPER MOUNT COVER - REAR (1 3/4")SCREW, UPPER MOUNT COVER - REAR (1 3/4")
-
3110-67916 SCREW, UPPER MOUNT COVER - FRONT (2")SCREW, UPPER MOUNT COVER - FRONT (2")
-
31A12-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3211-36069 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3312-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
3412-66966 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3512-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
3611-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3727-385011 GASKET
EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET
EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING -
3811-64809 NUT
POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT
POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16") -
39695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
39695441 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
4032-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
4032-45679 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
4138157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
4238154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
4338158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
4410-48408 SCREW
RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)SCREW
RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING) -
4537687 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
4610-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
4725-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
-27-72486A32 GASKET SETGASKET SET
-
-27-72486A32 GASKET SETGASKET SET
