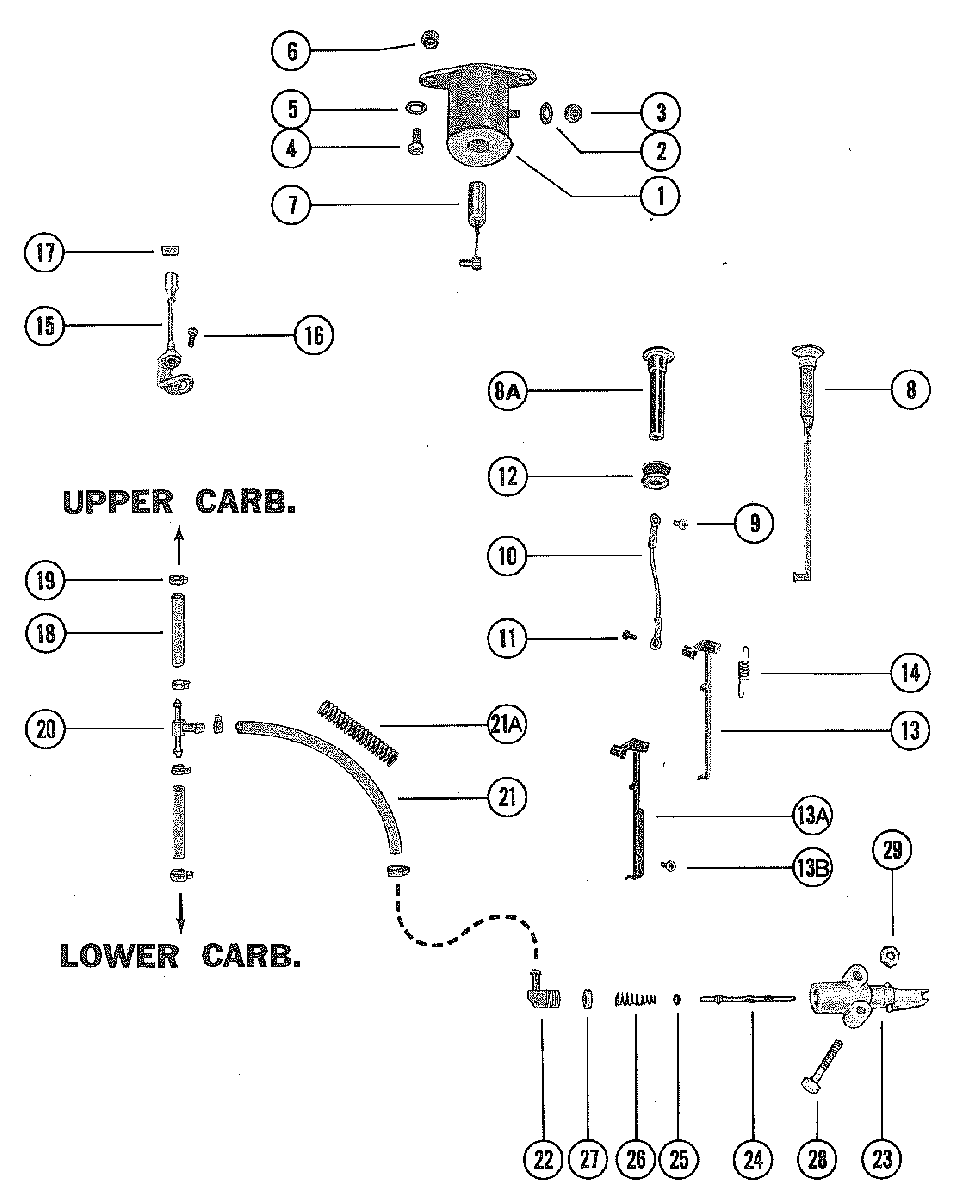

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500, 50 4357640 THRU 5531629
-
№АртикулНазвание
-
189-889274 CHOKE SOLENOID-ELECTRIC
ELECTRICCHOKE SOLENOID-ELECTRIC
ELECTRIC -
213-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
ELECTRICLOCKWASHER, CHOKE SOLENOID TERMINAL
ELECTRIC -
311-45076 NUT, CHOKE SOLENOID TERMINAL
ELECTRICNUT, CHOKE SOLENOID TERMINAL
ELECTRIC -
410-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKET
ELECTRICSCREW, CHOKE SOLENOID TO FRONT BRACKET
ELECTRIC -
513-26993 LOCKWASHER, CHOKE SELENOID SCREW
ELECTRICLOCKWASHER, CHOKE SELENOID SCREW
ELECTRIC -
611-22053 NUT, CHOKE SOLENOID SCREW
ELECTRICNUT, CHOKE SOLENOID SCREW
ELECTRIC -
756074A8 PLUNGER AND LINK ASSEMBLY
CHOKE SELENOID (ELECTRIC)PLUNGER AND LINK ASSEMBLY
CHOKE SELENOID (ELECTRIC) -
890241 KNOB, CHOKE (MANUAL)KNOB, CHOKE (MANUAL)
-
8A90242A1 KNOB ASSEMBLY (ELECTRIC)KNOB ASSEMBLY (ELECTRIC)
-
910-77137 SCREW, STRAP TO CHOKE KNOB (ELECTRIC)SCREW, STRAP TO CHOKE KNOB (ELECTRIC)
-
1049589 STRAP, CHOKE KNOB TO CHOKE ROD (ELECTRIC)STRAP, CHOKE KNOB TO CHOKE ROD (ELECTRIC)
-
1110-69570 SCREW, STRAP TO CHOKE ROD (ELECTRIC)SCREW, STRAP TO CHOKE ROD (ELECTRIC)
-
1225-20116 GROMMET, FRONT BRACKET (CHOKE KNOB)
(ELECTRIC)GROMMET, FRONT BRACKET (CHOKE KNOB)
(ELECTRIC) -
1385966A1 CHOKE ROD
UNITED STATES 5193258 AND BELOW AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255CHOKE ROD
UNITED STATES 5193258 AND BELOW AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 -
13A85966A1 CHOKE ROD ASSEMBLY
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPCHOKE ROD ASSEMBLY
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
13B10-77614A1 SCREW, CHOKE RODSCREW, CHOKE ROD
-
1424-60288 SPRING, CHOKE RODSPRING, CHOKE ROD
-
1553719A2 PICK-UP BRACKET ASSEMBLYPICK-UP BRACKET ASSEMBLY
-
1610-53651 SCREW, PICK-UP BRACKETSCREW, PICK-UP BRACKET
-
1728-89694 INSERT, COUPLINGINSERT, COUPLING
-
1832-8M0108355 FUEL LINE
CARBURETOR TO TEE TO CARBURETOR (2")FUEL LINE
CARBURETOR TO TEE TO CARBURETOR (2") -
1954-68424 CLAMP, FUEL LINECLAMP, FUEL LINE
-
2022-73318 TEE, FUEL LINETEE, FUEL LINE
-
2132-8M0108355 FUEL LINE, ADAPTOR TO TEE (6")FUEL LINE, ADAPTOR TO TEE (6")
-
21A24-68434 SPRING, FUEL LINESPRING, FUEL LINE
-
2222-63981 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
2322833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2423069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2525-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2624-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2730188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2810-69029 SCREW
ADAPTOR TO BOTTOM COWL (1 3/4") (MANUAL)SCREW
ADAPTOR TO BOTTOM COWL (1 3/4") (MANUAL) -
2810-67916 SCREW
ADAPTOR TO BOTTOM COWL (2") (ELECTRIC)SCREW
ADAPTOR TO BOTTOM COWL (2") (ELECTRIC) -
2911-20184 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
-27-72486A32 GASKET SETGASKET SET
-
-27-72486A32 GASKET SETGASKET SET
