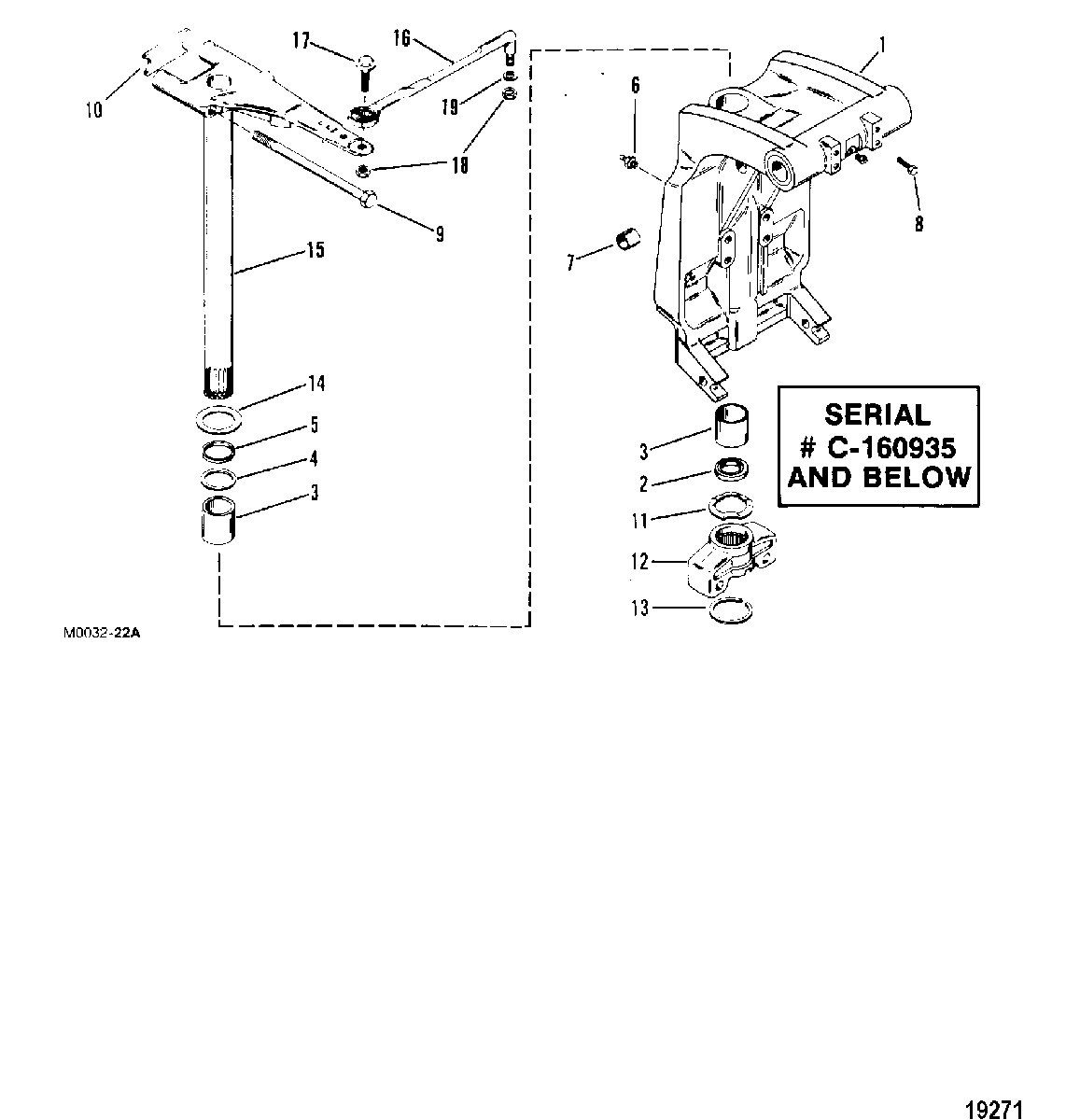

Swivel Bracket(Power Trim)(S/N-0C160935 & Below) для Mercury - 50 (3 CYL.) 0B122930 THRU 0D000749

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (BLACK)
    SWIVEL BRACKET ASSEMBLY
    (BLACK)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (GRAY)
    SWIVEL BRACKET ASSEMBLY
    (GRAY)
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPER
    BUSHING, SWIVEL BRACKET - LOWER AND UPPER
  • 4
    25-33466 O-RING, SWIVEL BRACKET - UPPER
    O-RING, SWIVEL BRACKET - UPPER
  • 5
    23-67668 SPACER, SWIVEL BRACKET - UPPER
    SPACER, SWIVEL BRACKET - UPPER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    10-64014 SCREW, (.250-28 x .500), SWIVEL BRACKET
    SCREW, (.250-28 x .500), SWIVEL BRACKET
  • 9
    10-99621 SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
    SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
  • 10
    28203 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 11
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 12
    42961T YOKE, Bottom
    (Black)
    YOKE, Bottom
    (Black)
  • 12
    42961T6 YOKE, Bottom
    (Gray)
    YOKE, Bottom
    (Gray)
  • 13
    53-67684 RING, Retaining, BOTTOM YOKE
    RING, Retaining, BOTTOM YOKE
  • 14
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 15
    99661A2 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 16
    17432A6 LINK ROD ASSEMBLY
    (STARBOARD)
    LINK ROD ASSEMBLY
    (STARBOARD)
  • 16
    17432A5 LINK ROD ASSEMBLY
    (PORT)
    LINK ROD ASSEMBLY
    (PORT)
  • 17
    10-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
    SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
  • 18
    11-8M0042636 NUT, (.375-24), STEERING LINK SCREW
    NUT, (.375-24), STEERING LINK SCREW
  • 19
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
