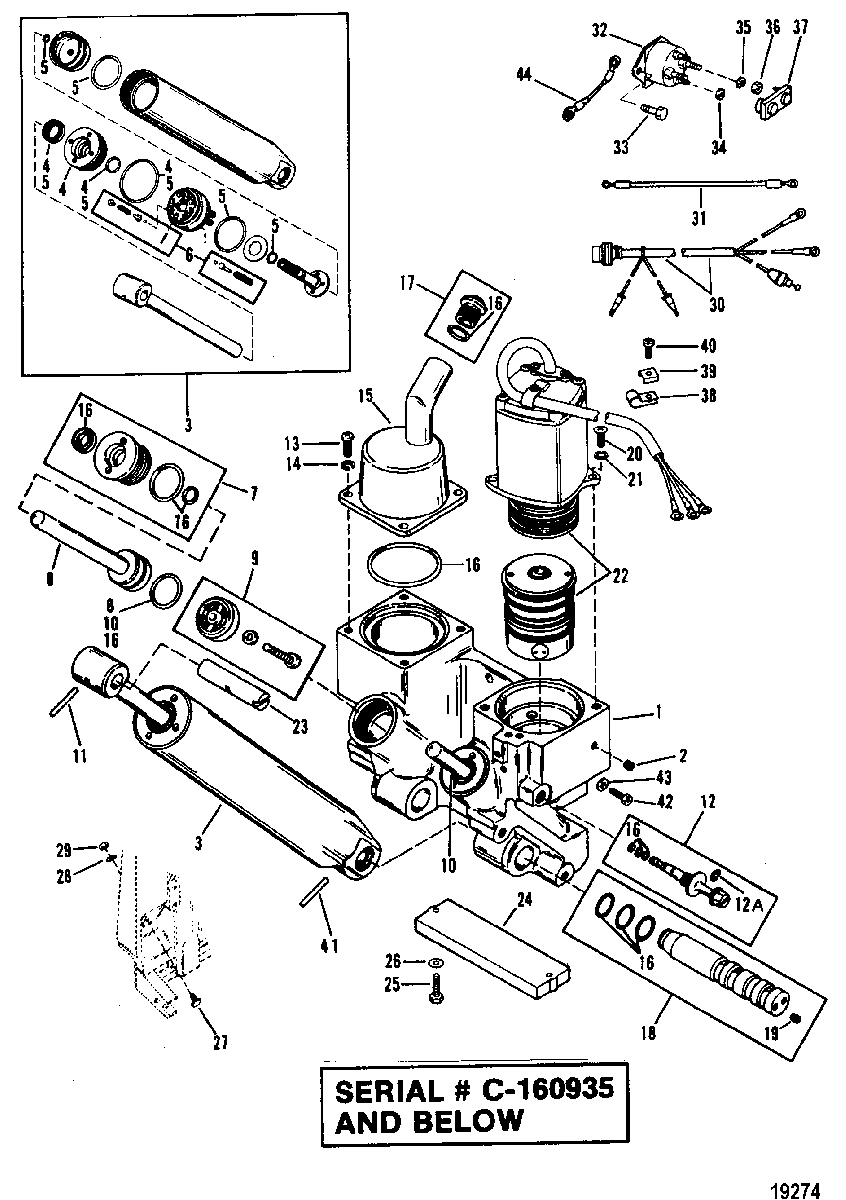

Power Trim Components(S/N-0C160935 & Below) для Mercury - 50 (3 CYL.) 0B122930 THRU 0D000749
-
№АртикулНазвание
-
199659A21 MANIFOLD ASSEMBLY (BLACK)MANIFOLD ASSEMBLY (BLACK)
-
199659A22 MANIFOLD ASSEMBLY (GRAY)MANIFOLD ASSEMBLY (GRAY)
-
222-56800 PIPE PLUG, MANIFOLDPIPE PLUG, MANIFOLD
-
341493A9 TRIM CYLINDER ASSEMBLY (BLACK)TRIM CYLINDER ASSEMBLY (BLACK)
-
341493A6 TRIM CYLINDER ASSEMBLY (GRAY)TRIM CYLINDER ASSEMBLY (GRAY)
-
441492A1 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
525-41478A1 REPAIR KITREPAIR KIT
-
641482A3 CHECK VALVE KITCHECK VALVE KIT
-
71100-8M0021648 GUIDE ASSEMBLY, TRIM RODGUIDE ASSEMBLY, TRIM ROD
-
843397A7 PISTON ASSEMBLY, PORTPISTON ASSEMBLY, PORT
-
935-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
10878414T01 PISTON/ROD ASSEMBLY, Power Trim, STARBOARDPISTON/ROD ASSEMBLY, Power Trim, STARBOARD
-
1117-821539 PIN, Groove, TRIM CYLINDER (UPPER)PIN, Groove, TRIM CYLINDER (UPPER)
-
12893929A01 VALVE ASSEMBLYVALVE ASSEMBLY
-
12A53-815949001 E RING, VALVE ASSEMBLYE RING, VALVE ASSEMBLY
-
1310-4000327 SCREW, (M6 x 14), COVERSCREW, (M6 x 14), COVER
-
1412-4002315 WASHER, COVER SCREWWASHER, COVER SCREW
-
1599642 COVER, MANIFOLDCOVER, MANIFOLD
-
1625-48462A4 O-RING KITO-RING KIT
-
1719-99609A1 PLUG ASSEMBLYPLUG ASSEMBLY
-
1899641A02 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
1922-56800 PIPE PLUG, SHAFTPIPE PLUG, SHAFT
-
2010-4008820 SCREW, (M6 x 20), PUMP AND MOTORSCREW, (M6 x 20), PUMP AND MOTOR
-
2113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
22826729A10 PUMP AND MOTORPUMP AND MOTOR
-
2399625002 SHAFT, UPPERSHAFT, UPPER
-
2497-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2510-4000332 SCREW, (M6 x 35), ANODESCREW, (M6 x 35), ANODE
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREWWASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
-
278M0045383 STRIKER PLATE, TRIM SHAFTSTRIKER PLATE, TRIM SHAFT
-
2813-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2911-46335 NUT, (.375-24)NUT, (.375-24)
-
3084-99695A1 HARNESS ASSEMBLY, Control, POWER TRIM (3 WIRE)HARNESS ASSEMBLY, Control, POWER TRIM (3 WIRE)
-
3084-17201A2 CABLE ASSEMBLY, (17.00 Inches), POWER TRIM (2 WIRE)CABLE ASSEMBLY, (17.00 Inches), POWER TRIM (2 WIRE)
-
3184-87379A39 WIRE ASSEMBLY (2-3/4" - RED)WIRE ASSEMBLY (2-3/4" - RED)
-
3289-96158T SOLENOID, StarterSOLENOID, Starter
-
3310-41508 SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOIDSCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID
-
3411-26419 NUT, (#8-32) Brass, SOLENIOD TERMINALNUT, (#8-32) Brass, SOLENIOD TERMINAL
-
3513-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
-
3611-94330 NUT, (.250-20) Brass, SOLENOID TERMINALNUT, (.250-20) Brass, SOLENOID TERMINAL
-
3785-97861 INSULATOR, STARTER SOLENIODINSULATOR, STARTER SOLENIOD
-
3854-22875 CLIP, PUMP WIRECLIP, PUMP WIRE
-
398M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
4010-69079 SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKETSCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET
-
4117-878267 PIN, Groove, TRIM CYLINDER (LOWER)PIN, Groove, TRIM CYLINDER (LOWER)
-
4210-4000377 SCREW, (M10 x 30), MANIFOLDSCREW, (M10 x 30), MANIFOLD
-
4313-400258 LOCKWASHER, (M10) Stainless Steel, MANIFOLD SCREWLOCKWASHER, (M10) Stainless Steel, MANIFOLD SCREW
-
4484-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
