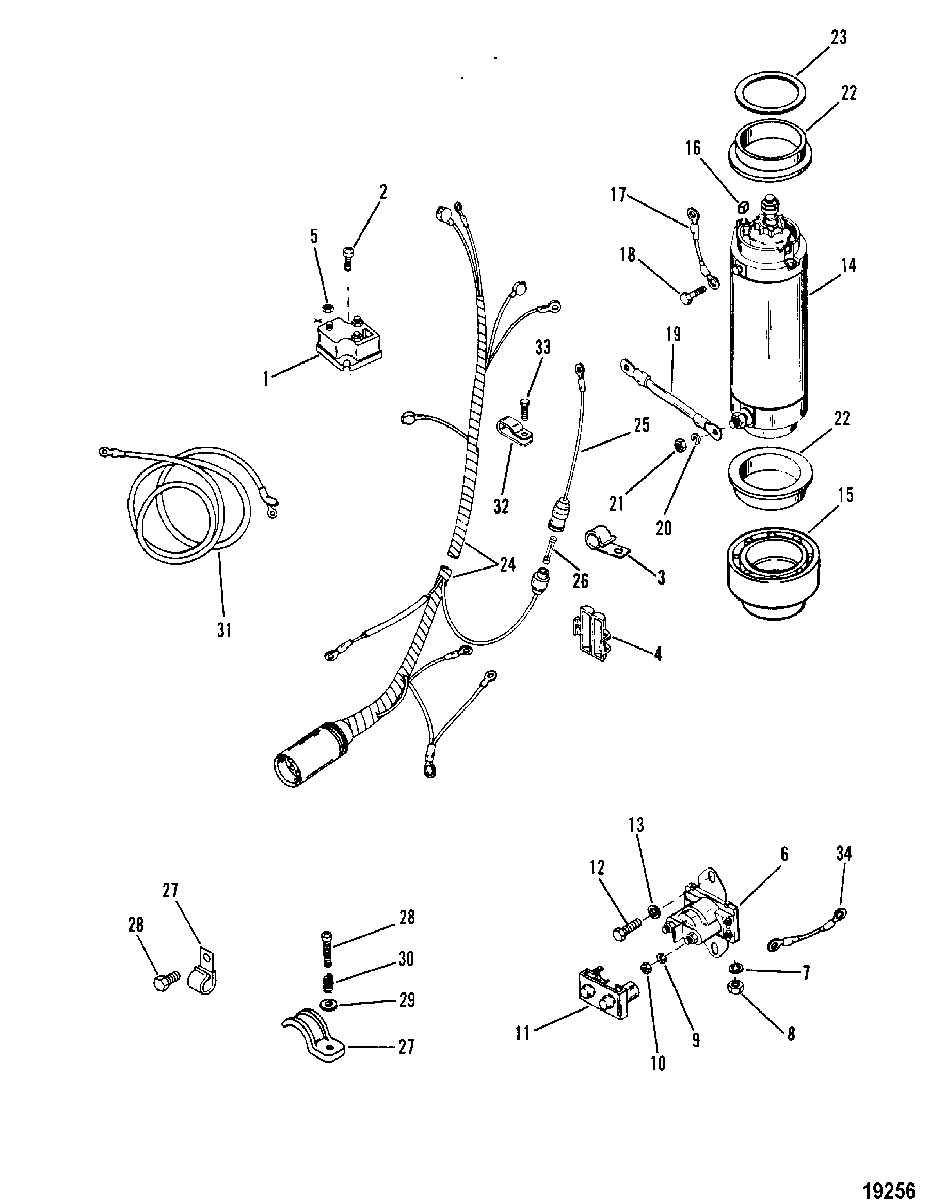

Starter Motor, Solenoid and Rectifier для Mercury - 50 (3 CYL.) 0B122930 THRU 0D000749

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-38055 SCREW, (.190-32 x .620), RECTIFIER TO PLATE
    SCREW, (.190-32 x .620), RECTIFIER TO PLATE
  • 3
    54-47483 J CLIP
    J CLIP
  • 4
    134731 HOLDER, Fuse
    HOLDER, Fuse
  • 5
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 6
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
  • 8
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 10
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 11
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 12
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, SOLENOID TO ATTENUATOR
    SCREW, (.250-20 x .500) Stainless Steel, SOLENOID TO ATTENUATOR
  • 12
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
  • 14
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    44368 ADAPTOR, STARTER MOTOR
    ADAPTOR, STARTER MOTOR
  • 16
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 17
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
    CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
  • 18
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 19
    84-93389A6 CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR - 9-1/2"
    (YELLOW)
    CABLE ASSEMBLY, SOLENOID TO STARTER MOTOR - 9-1/2"
    (YELLOW)
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 21
    11-64015 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 22
    23-8M0034918 COLLAR, RUBBER - STARTER MOUNT
    COLLAR, RUBBER - STARTER MOUNT
  • 23
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 24
    84-14614A1 HARNESS ASSEMBLY (INTERNAL)
    HARNESS ASSEMBLY (INTERNAL)
  • 25
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 26
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 27
    88751 CLAMP, WIRING HARNESS
    OLD DESIGN
    CLAMP, WIRING HARNESS
    OLD DESIGN
  • 28
    10-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    OLD DESIGN
    SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    OLD DESIGN
  • 29
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
    OLD DESIGN
    WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
    OLD DESIGN
  • 30
    24-28357 SPRING, WIRING HARNESS
    OLD DESIGN
    SPRING, WIRING HARNESS
    OLD DESIGN
  • 27
    54-63153 J CLIP, WIRING HARNESS
    NEW DESIGN
    J CLIP, WIRING HARNESS
    NEW DESIGN
  • 28
    10-62568 SCREW, (#10-16 x .375), CLAMP
    NEW DESIGN
    SCREW, (#10-16 x .375), CLAMP
    NEW DESIGN
  • 31
    84-88439A7 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 31
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 32
    54-28700 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 33
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
  • 34
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
