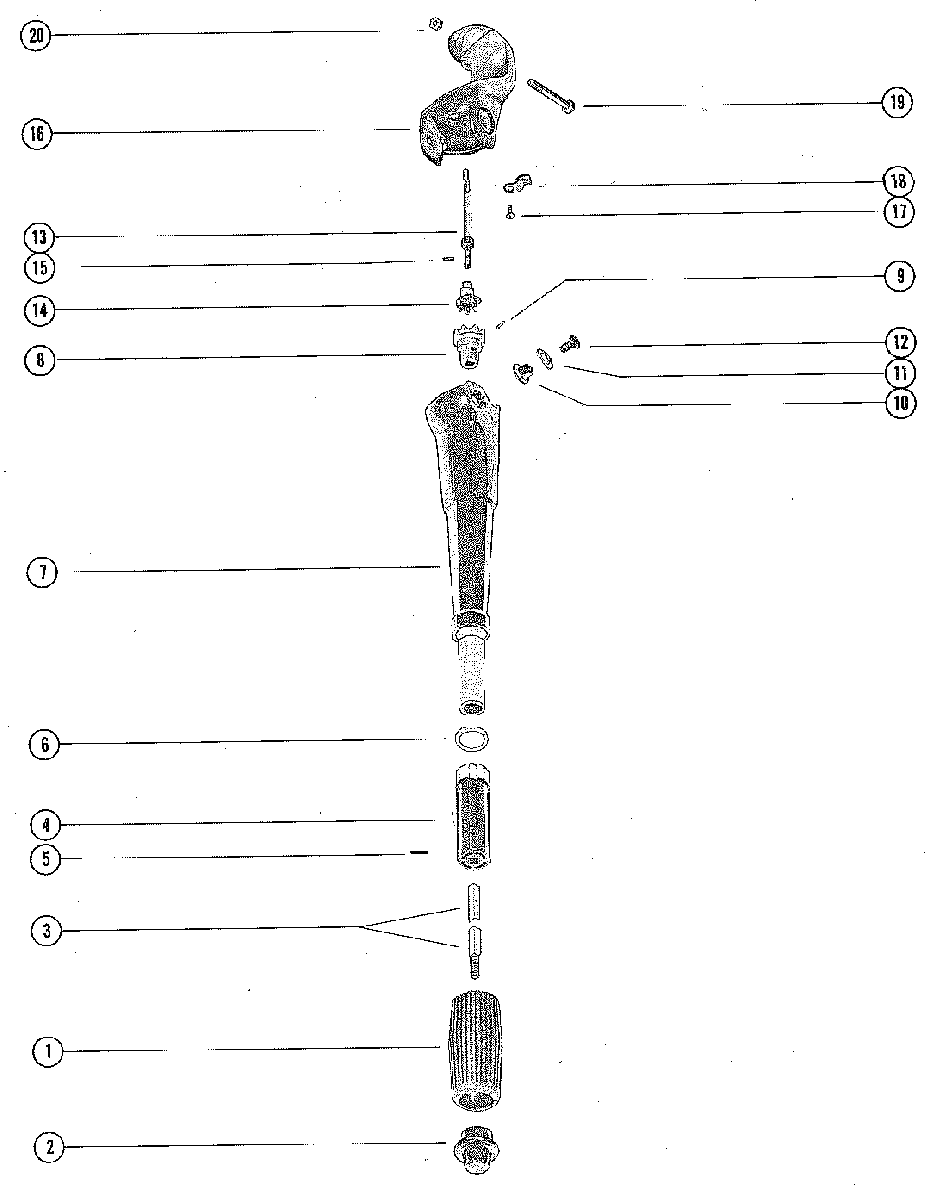

STEERING HANDLE ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 4107220 THRU 5595531

  • №
    Артикул
    Название
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    STEERING HANDLE ASSEMBLY, COMPLETE
  • 1
    60854 GRIP, HANDLE - THROTTLE
    GRIP, HANDLE - THROTTLE
  • 2
    62251 CAP, HANDLE THROTTLE
    CAP, HANDLE THROTTLE
  • 3
    66393 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 4
    66394A1 HANDLE ASSEMBLY, THROTTLE SHAFT
    HANDLE ASSEMBLY, THROTTLE SHAFT
  • 5
    17-46152 PIN, THROTTLE HADNLE
    PIN, THROTTLE HADNLE
  • 6
    12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM
    WASHER, THROTTLE HANDLE TO STEERING ARM
  • 7
    60850 ARM, STEERING HANDLE
    ARM, STEERING HANDLE
  • 8
    43-60852 GEAR, BALL THROTTLE SHAFT
    GEAR, BALL THROTTLE SHAFT
  • 9
    17-27088 PIN, BALL GEAR TO THROTTLE SHAFT
    PIN, BALL GEAR TO THROTTLE SHAFT
  • 10
    48003 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 11
    15-48002015 SHIM, HANDLE PIVOT TO BRACKET (.015)
    SHIM, HANDLE PIVOT TO BRACKET (.015)
  • 12
    10-64074 SCREW, HANDLE TO ARM BRACKET (5/8")
    SCREW, HANDLE TO ARM BRACKET (5/8")
  • 13
    60857A2 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 14
    43-60852 GEAR, BALL - UNIVERSAL JOINT
    GEAR, BALL - UNIVERSAL JOINT
  • 15
    17-77564 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
  • 16
    96130A1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 17
    10-62233 SCREW
    DETENT SPRING TO STEERING ARM BRACKET (5/8")
    SCREW
    DETENT SPRING TO STEERING ARM BRACKET (5/8")
  • 18
    24-72847 SPRING, DETENT - STEERING HANDLE
    SPRING, DETENT - STEERING HANDLE
  • 19
    10-30679 SCREW, BRACKET TO SADDLE (2 1/2")
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
    SCREW, BRACKET TO SADDLE (2 1/2")
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
  • 20
    11-20184 NUT, BRACKET SCREW
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
    NUT, BRACKET SCREW
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
  • 19
    10-78038 SCREW, BRACKET TO SADDLE (1 3/4")
    UNITED STATES 4869518 AND UP
    AUSTRALIA 8052880 AND UP
    BELGIUM 9186201 AND UP
    CANADA 7112923 AND UP
    SCREW, BRACKET TO SADDLE (1 3/4")
    UNITED STATES 4869518 AND UP
    AUSTRALIA 8052880 AND UP
    BELGIUM 9186201 AND UP
    CANADA 7112923 AND UP
