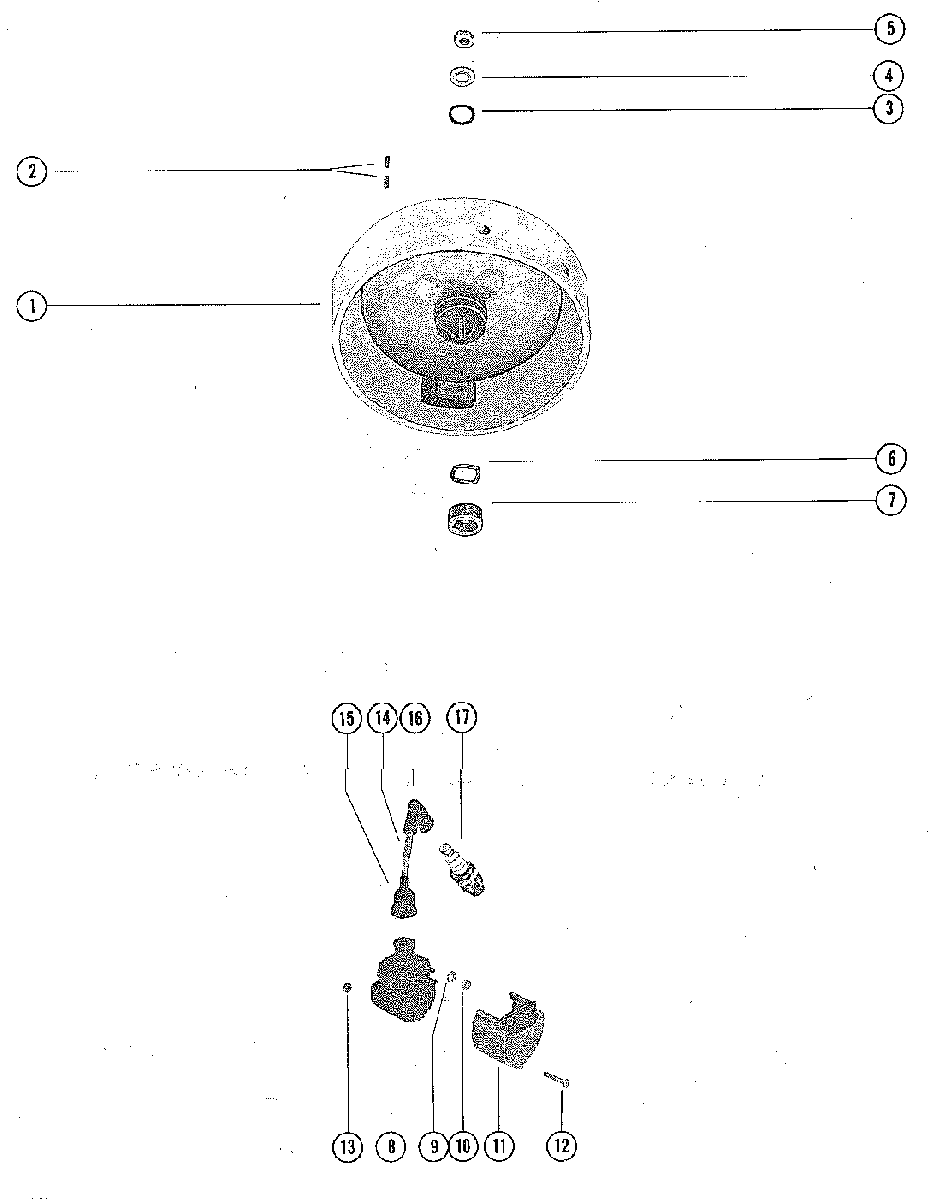

FLYWHEEL AND IGNITION COIL для Mercury - 45, 4.5 (1 CYL.) 4107220 THRU 5595531

  • №
    Артикул
    Название
  • 1
    236-4475A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    25-62701 "O" RING, FLYWHEEL NUT
    UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
    "O" RING, FLYWHEEL NUT
    UNITED STATES 4377556 AND BELOW
    AUSTRALIA 8037074 AND BELOW
    BELGIUM 9110488 AND BELOW
    CANADA 7072372 AND BELOW
  • 4
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 5
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 6
    13-35629 WASHER, WAVE - CAM TENSION
    WASHER, WAVE - CAM TENSION
  • 7
    336-4465 CAM, BREAKER
    CAM, BREAKER
  • 8
    336-4528T2 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 9
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 10
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 11
    66355 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 12
    10-61530 SCREW
    COIL COVER TO REAR SUPPRT BRACKET (3 3/4")
    SCREW
    COIL COVER TO REAR SUPPRT BRACKET (3 3/4")
  • 13
    11-27164 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 14
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 15
    332-2854T01 NIPLE, IGNITION COIL
    NIPLE, IGNITION COIL
  • 16
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 17
    33-97182Q SPARK PLUG (AC#40FFK)
    CANADA AND BELGIUM USE C-33-75739
    SPARK PLUG (AC#40FFK)
    CANADA AND BELGIUM USE C-33-75739
  • -
    27-78139A80 GASKET SET
    GASKET SET
