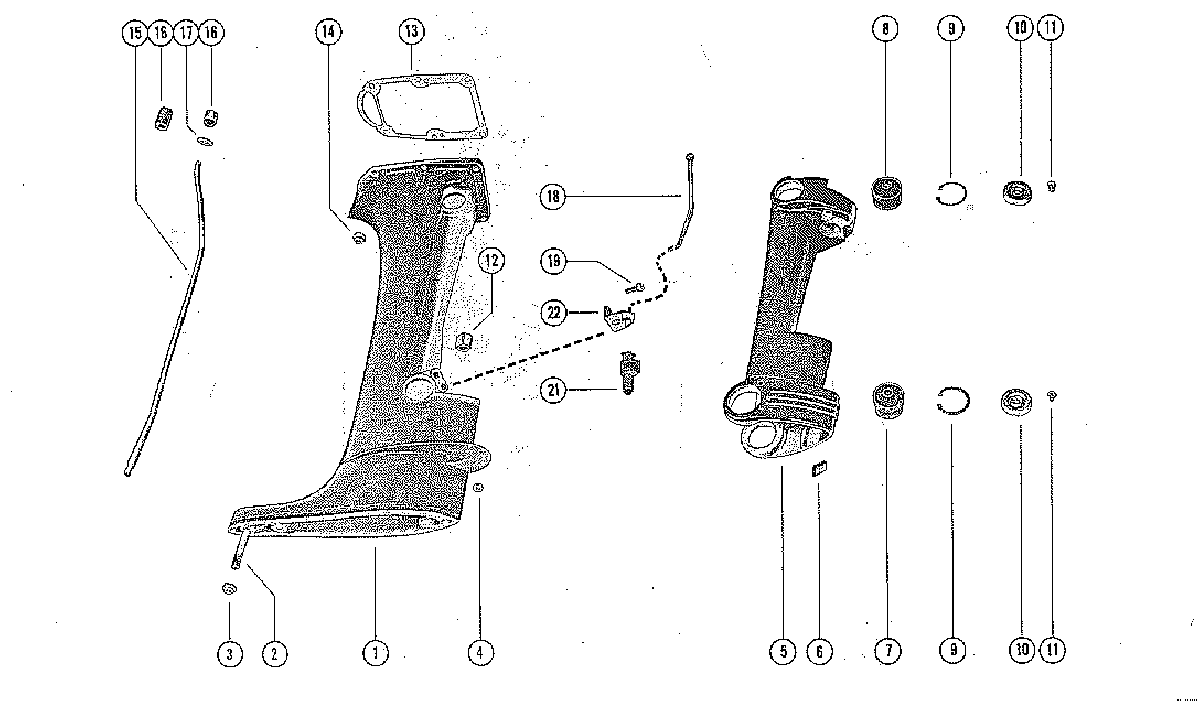

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 4107220 THRU 5595531

  • №
    Артикул
    Название
  • 1
    1538-8456A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1542-8452A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    11-82670911 NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT
    DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
  • 4
    11-8M0042636 NUT
    GEAR HOUSING TO DRIVE SHFT HOUSING STUD
    NUT
    GEAR HOUSING TO DRIVE SHFT HOUSING STUD
  • 5
    1539-8450A1 SADDLE ASSEMBLY
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
    SADDLE ASSEMBLY
    UNITED STATES 4869517 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    BELGIUM 9186200 AND BELOW
    CANADA 7112922 AND BELOW
  • 5
    1539-8450A1 SADDLE ASSEBMLY
    UNITED STATES 4869518 AND UP
    AUSTRALIA 8052880 AND UP
    BELGIUM 9186201 AND UP
    CANADA 7112923 AND UP
    SADDLE ASSEBMLY
    UNITED STATES 4869518 AND UP
    AUSTRALIA 8052880 AND UP
    BELGIUM 9186201 AND UP
    CANADA 7112923 AND UP
  • 6
    64076 BUMPER, THRUST - SADDLE
    BUMPER, THRUST - SADDLE
  • 7
    79896A1 MOUNT, OWER
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    MOUNT, OWER
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 8
    79985A1 MOUNT, UPPER (SEE NOTE BELOW)
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    MOUNT, UPPER (SEE NOTE BELOW)
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 7
    79896A1 MOUNT ASSEMBLY, LOWER
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    MOUNT ASSEMBLY, LOWER
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 8
    79985A1 MOUNT ASSEMBLY, UPPER (SEE NOTE BELOW)
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    MOUNT ASSEMBLY, UPPER (SEE NOTE BELOW)
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 9
    53-26406 RING, RETAINING - UPPER AND LOWER MOUNT
    RING, RETAINING - UPPER AND LOWER MOUNT
  • 10
    71490 COVER, UPPER AND LOWER MOUNT
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    COVER, UPPER AND LOWER MOUNT
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 11
    10-48408 SCREW
    UPPER AND LOWER MOUNT COVER RETAINING (1/2")
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    SCREW
    UPPER AND LOWER MOUNT COVER RETAINING (1/2")
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 10
    79907 COVER, UPPER AND LOWER MOUNT
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    COVER, UPPER AND LOWER MOUNT
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 12
    55435 BLOCK, BEARING - DRIVE SHAFT (LONG SHAFT0)
    BLOCK, BEARING - DRIVE SHAFT (LONG SHAFT0)
  • 13
    27-59079 GASKET, BOTTOM COWL TO DRIVE SHFT HOUSING
    GASKET, BOTTOM COWL TO DRIVE SHFT HOUSING
  • 14
    11-20184 NUT
    DRIVE SHAFT HOUSING TO POWERHEAD STUDS
    NUT
    DRIVE SHAFT HOUSING TO POWERHEAD STUDS
  • 14
    11-24652 NUT
    DRIVE SHAFT HOUSING TO POWERHEAD STUDS
    NUT
    DRIVE SHAFT HOUSING TO POWERHEAD STUDS
  • 15
    32-31940 TUBE, WATER OUTLET (SHORT SHAFT)
    TUBE, WATER OUTLET (SHORT SHAFT)
  • 15
    32-32077 TUBE, WATER OUTLET (LONG SHAFT)
    TUBE, WATER OUTLET (LONG SHAFT)
  • 16
    26-36556 SEAL, RUBBER - WATER OUTLET TUBE
    SEAL, RUBBER - WATER OUTLET TUBE
  • 17
    23-13127 BEARING, NYLON - OUTLET TUBE SEAL
    BEARING, NYLON - OUTLET TUBE SEAL
  • 18
    71057 LINK ROD, REVERSE LOCK
    LINK ROD, REVERSE LOCK
  • 19
    10-65414 SCREW
    CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
    SCREW
    CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
  • 21
    65216 CAM, REVERSE LOCK
    CAM, REVERSE LOCK
  • 22
    72007 RETAINER, REVERSE LOCK CAM
    RETAINER, REVERSE LOCK CAM
  • -
    27-78139A80 GASKET SET
    GASKET SET
