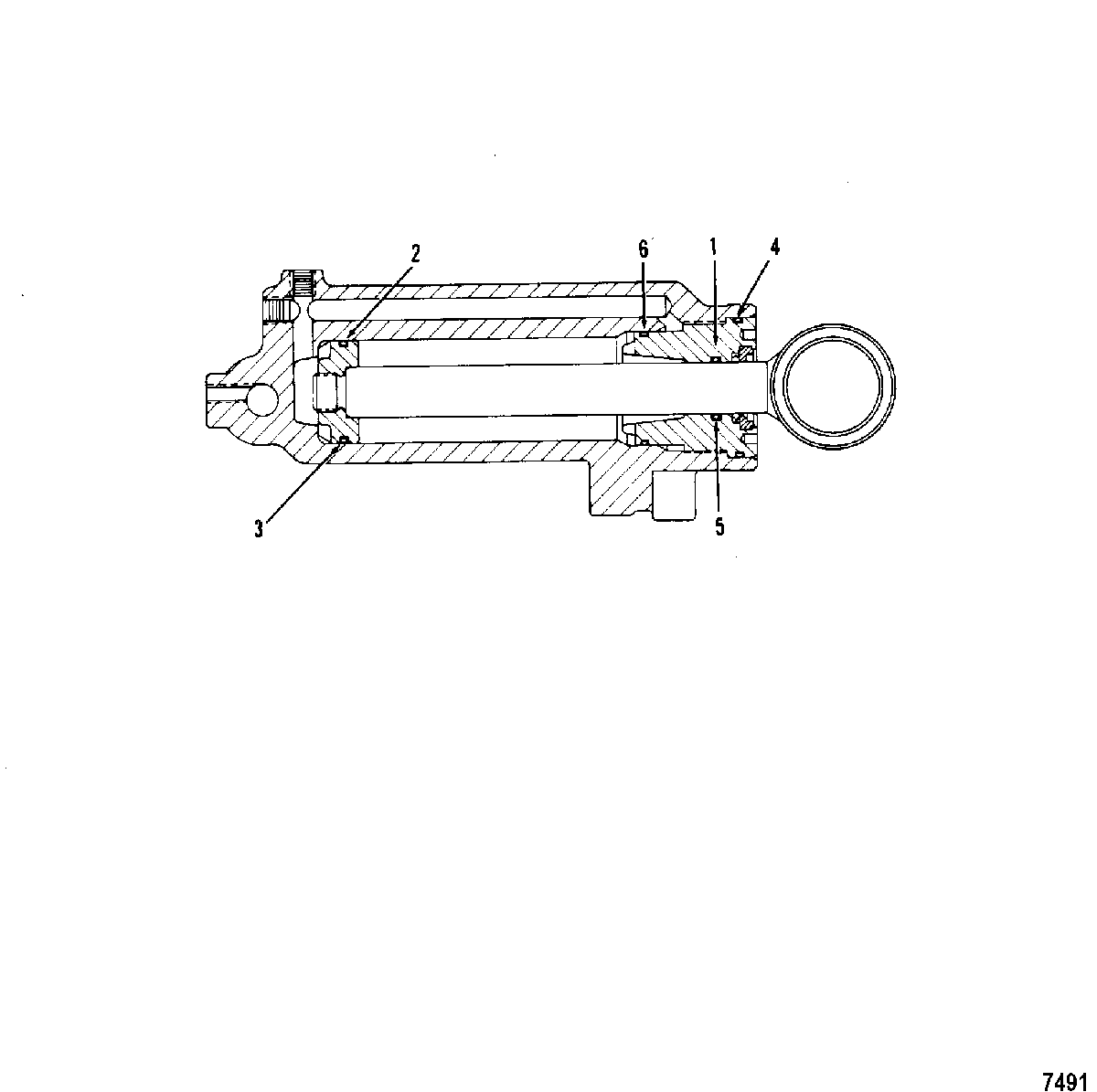

POWER TRIM CYLINDER REPAIR KITS(92194A14 AND 92194A20) для Mercury - 45 (4 CYL.) 9248006 THRU 9466691
-
№АртикулНазвание
-
-92188A2 REPAIR KITREPAIR KIT
-
1N.S.S. Not Sold Separate, Cylinder CapNot Sold Separate, Cylinder Cap
-
2N.S.S. Not Sold Separate, O-Ring (1-1/4" X X1-1/2" X 1/8")Not Sold Separate, O-Ring (1-1/4" X X1-1/2" X 1/8")
-
3N.S.S. Not Sold Separate, SpacerNot Sold Separate, Spacer
-
4N.S.S. Not Sold Separate, O-Ring (1-7/8" X 2-1/16" X 3/32")Not Sold Separate, O-Ring (1-7/8" X 2-1/16" X 3/32")
-
5N.S.S. Not Sold Separate, O-Ring (3/4" X 15/16" X 3/32")Not Sold Separate, O-Ring (3/4" X 15/16" X 3/32")
-
6N.S.S. Not Sold Separate, O-Ring )1-1/2" X 1-3/4" X 3/32")Not Sold Separate, O-Ring )1-1/2" X 1-3/4" X 3/32")
-
-92194A14 TRIM CYLINDERTRIM CYLINDER
-
-92194A20 TRIM CYLINDER
(IDENTIFIED BY NO CASTING #)TRIM CYLINDER
(IDENTIFIED BY NO CASTING #)
