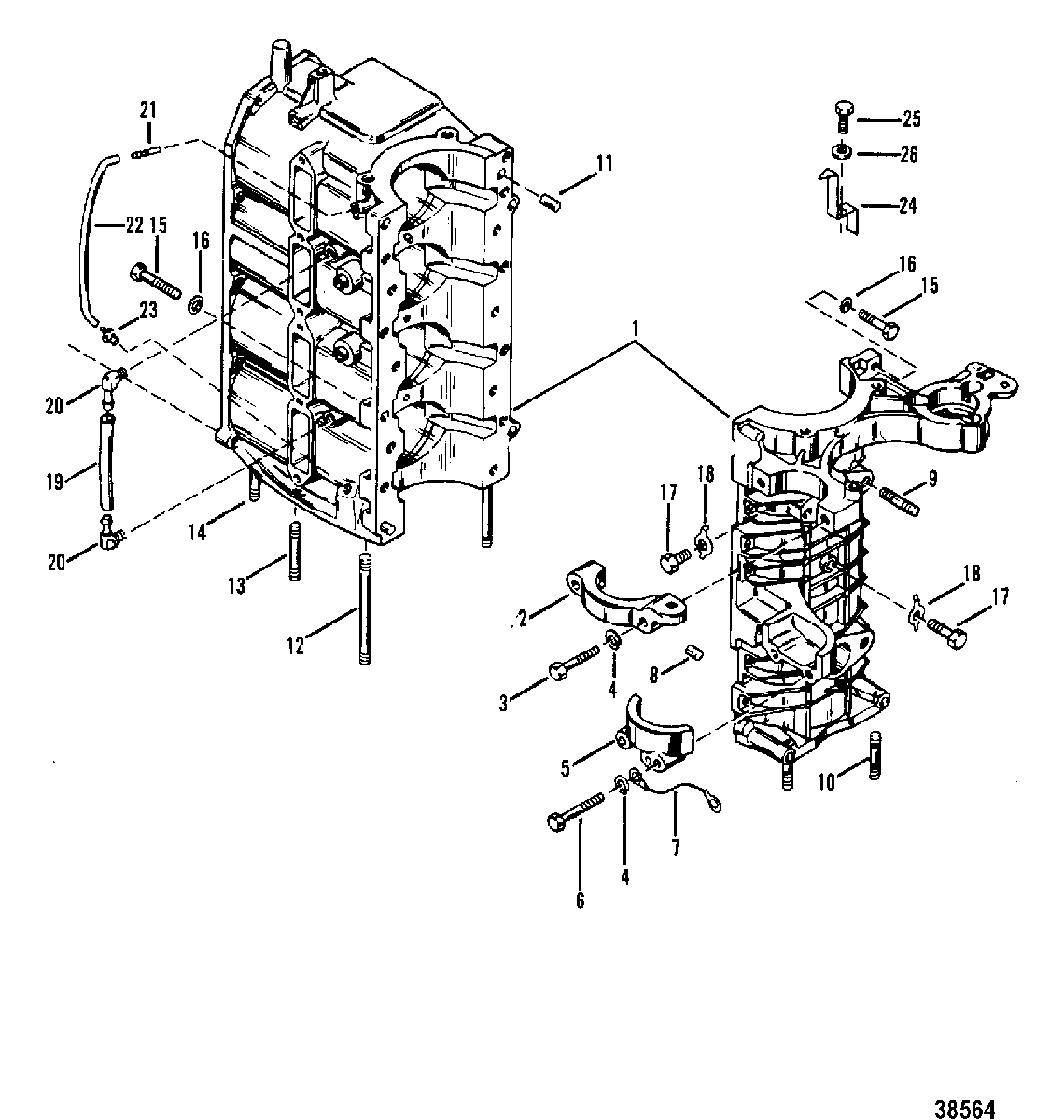

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 45 (4 CYL.) 9248006 THRU 9466691

  • №
    Артикул
    Название
  • 1
    863-8981A6 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    72038 BRACKET, STARTER MOTOR (UPPER)
    BRACKET, STARTER MOTOR (UPPER)
  • 3
    10-73279 SCREW, (.312-18 x 1.880), BRACKET TO CRANKCASE
    SCREW, (.312-18 x 1.880), BRACKET TO CRANKCASE
  • 4
    13-26993 LOCKWASHER, (.312), BRACKET SCREW
    LOCKWASHER, (.312), BRACKET SCREW
  • 5
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 6
    10-73279 SCREW, (.312-18 x 1.880), COVER TO CRANKCASE
    SCREW, (.312-18 x 1.880), COVER TO CRANKCASE
  • 7
    46933A7 CABLE ASSEMBLY, GROUND
    CABLE ASSEMBLY, GROUND
  • 8
    17-20032 PIN, Dowel, CYLINDER BLOCK TO MAIN BEARING
    PIN, Dowel, CYLINDER BLOCK TO MAIN BEARING
  • 9
    16-64936 STUD, CARBURETOR (1-1/4")
    STUD, CARBURETOR (1-1/4")
  • 10
    16-68165 STUD
    STUD
  • 11
    17-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
  • 12
    16-87901 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4")
  • 13
    16-68166 STUD, (.312 x 2.125), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
    STUD, (.312 x 2.125), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
  • 14
    16-68167 STUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
    STUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
  • 15
    10-55511 SCREW, (.312-18 x 1.500), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.500), CRANKCASE TO CYLINDER BLOCK
  • 15
    10-31984 SCREW, (.312-18 x 1.375), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.375), CRANKCASE TO CYLINDER BLOCK
  • 15
    10-73275 SCREW, (.312-18 x 2.88), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 2.88), CRANKCASE TO CYLINDER BLOCK
  • 16
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, CRANKCASE SCREW
    WASHER, (.323 x .563 x .063) Stainless Steel, CRANKCASE SCREW
  • 17
    10-20359 SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
    SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
  • 17
    10-98260 SCREW, (.375-16 x .620), MAIN BEARING LOCKING
    SCREW, (.375-16 x .620), MAIN BEARING LOCKING
  • 18
    14-20091 TAB WASHER, CENTER BEARING LOCKING SCREW
    TAB WASHER, CENTER BEARING LOCKING SCREW
  • 19
    32-8M0108355 LINE, (57.00 Inches Bulk), BALANCE - MAIN BEARING (5-1/2")
    LINE, (57.00 Inches Bulk), BALANCE - MAIN BEARING (5-1/2")
  • 20
    22-996642 ELBOW, BALANCE TUBE TO CYLINDER BLOCK
    ELBOW, BALANCE TUBE TO CYLINDER BLOCK
  • 21
    22-56759 CONNECTOR, BLEED HOSE (UPPER)
    CONNECTOR, BLEED HOSE (UPPER)
  • 22
    32-9938779 HOSE, CYLINDER BLEED (11")
    HOSE, CYLINDER BLEED (11")
  • 23
    21-428671 CHECK VALVE, BLEED HOSE (LOWER)
    CHECK VALVE, BLEED HOSE (LOWER)
  • 24
    99156 INDICATOR, TIMING - ELECTRIC
    INDICATOR, TIMING - ELECTRIC
  • 25
    10-39349 SCREW, (.312-18 x .750) Stainless Steel
    SCREW, (.312-18 x .750) Stainless Steel
  • 26
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • -
    97469T87 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
