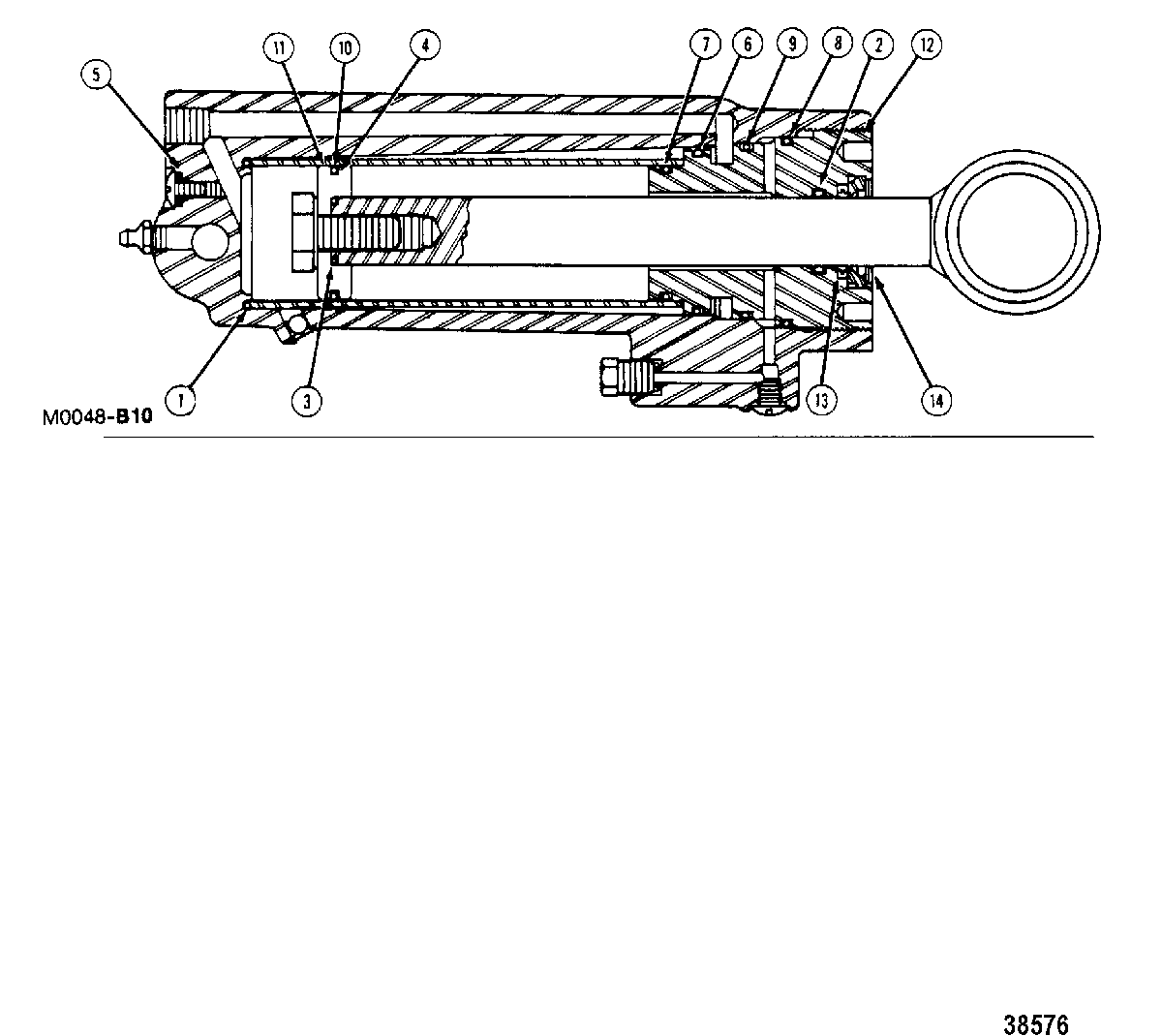

POWER TRIM CYLINDER REPAIR KITS(76509A3 AND 76509A23) для Mercury - 45 (4 CYL.) 9248006 THRU 9466691

  • №
    Артикул
    Название
  • -
    64507A1 REPAIR KIT
    REPAIR KIT
  • 1
    N.S.S. Not Sold Separate, O-Ring (1-1/2" X 1-5/8" X 1/16")
    Not Sold Separate, O-Ring (1-1/2" X 1-5/8" X 1/16")
  • 2
    N.S.S. Not Sold Separate, O-Ring (3/4" X 15/16" X 1/8")
    Not Sold Separate, O-Ring (3/4" X 15/16" X 1/8")
  • 3
    N.S.S. Not Sold Separate, O-Ring (5/8" X 3/4" X 1/1")
    Not Sold Separate, O-Ring (5/8" X 3/4" X 1/1")
  • 4
    N.S.S. Not Sold Separate, O-Ring (1-1/4" X 1-7/16" X 1/16")
    Not Sold Separate, O-Ring (1-1/4" X 1-7/16" X 1/16")
  • 5
    N.S.S. Not Sold Separate, O-Ring (7/32" X 11/32" X 1/16")
    Not Sold Separate, O-Ring (7/32" X 11/32" X 1/16")
  • 6
    N.S.S. Not Sold Separate, O-Ring (1-5/8" X 1-13/16" X 1/8")
    Not Sold Separate, O-Ring (1-5/8" X 1-13/16" X 1/8")
  • 7
    N.S.S. Not Sold Separate, O-Ring (1-5/16" X 1-1/2" X 1/8")
    Not Sold Separate, O-Ring (1-5/16" X 1-1/2" X 1/8")
  • 8
    N.S.S. Not Sold Separate, O-Ring (1-7/8" X 2" X 1/8")
    Not Sold Separate, O-Ring (1-7/8" X 2" X 1/8")
  • 9
    N.S.S. Not Sold Separate, O-Ring (1-3/4" X 1-15/16" X 1/8")
    Not Sold Separate, O-Ring (1-3/4" X 1-15/16" X 1/8")
  • 10
    N.S.S. Not Sold Separate, SEAL, SLIPPER - PISTON
    Not Sold Separate, SEAL, SLIPPER - PISTON
  • 11
    N.S.S. Not Sold Separate, PISTON, ROD - HEAVY DUTY
    Not Sold Separate, PISTON, ROD - HEAVY DUTY
  • 12
    64505A1 RETAINER ASSEMBLY, PISTON
    RETAINER ASSEMBLY, PISTON
  • 13
    N.S.S. Not Sold Separate, ROD, SCRAPER
    Not Sold Separate, ROD, SCRAPER
  • 14
    N.S.S. Not Sold Separate, RETAINER, SCRAPER
    Not Sold Separate, RETAINER, SCRAPER
  • -
    92194A14 TRIM CYLINDER
    (IDENTIFIED BY CASTING #78439
    TRIM CYLINDER
    (IDENTIFIED BY CASTING #78439
  • -
    92194A20 TRIM CYLINDER
    (IDENTIFIED BY CASTING #78439
    TRIM CYLINDER
    (IDENTIFIED BY CASTING #78439
