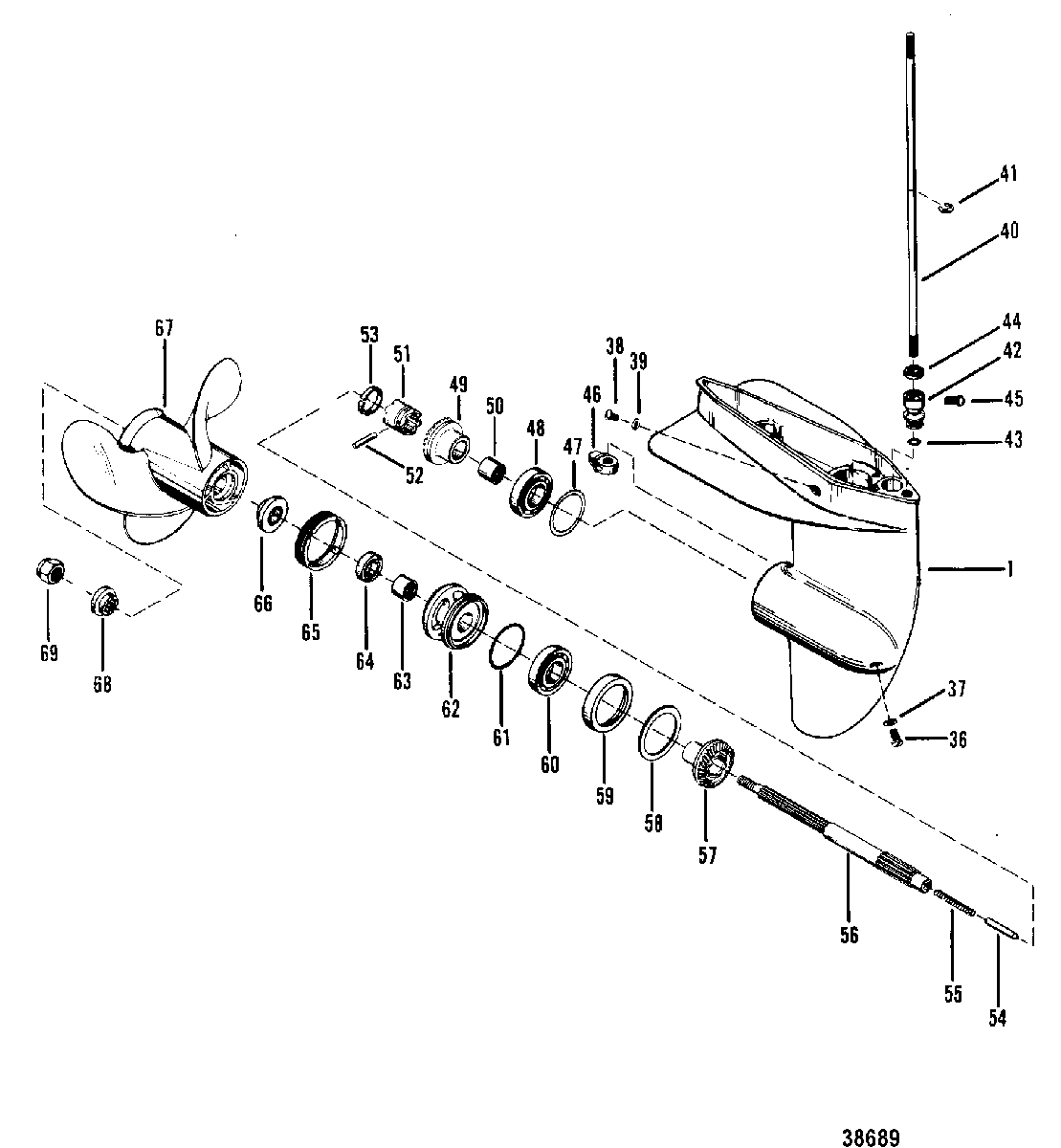

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 4.5 (1 CYL.) 8068065 & Up
-
№АртикулНазвание
-
-1630-7360A29 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) -
-1630-7360A30 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) -
11630-7360A11 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
3610-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER HOLESCREW, (.375-16 x .250), GREASE FILLER HOLE
-
3712-191833 WASHER, GREASE FILLER HOLE SCREWWASHER, GREASE FILLER HOLE SCREW
-
3810-28653 SCREW, (#10-32 x 0.25), GREASE VENT HOLESCREW, (#10-32 x 0.25), GREASE VENT HOLE
-
3919643 WASHER, GREASE VENT HOLE SCREWWASHER, GREASE VENT HOLE SCREW
-
4071659A1 SHIFT SHAFT ASSEMLBY, SHIFT
(SHORT SHAFT)SHIFT SHAFT ASSEMLBY, SHIFT
(SHORT SHAFT) -
4071658A1 SHIFT SHAFT ASSEMBLY, SHIFT
(LONG SHAFT)SHIFT SHAFT ASSEMBLY, SHIFT
(LONG SHAFT) -
4153-22899 RING, Retaining, SHIFT SHAFTRING, Retaining, SHIFT SHAFT
-
4223-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4325-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHINGO-RING, (.424 x .103), SHIFT SHAFT BUSHING
-
4426-30696 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4510-39149 SCREW, (#10-24 x .500)SCREW, (#10-24 x .500)
-
4644434 CAMCAM
-
4715-30522A1 SHIM ASSEMBLY (.002-3-5-10)SHIM ASSEMBLY (.002-3-5-10)
-
4830-21889 BEARING, Ball, FORWARD GEARBEARING, Ball, FORWARD GEAR
-
4943-48577A3 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-22458 BEARING, Roller, FORWARD GEARBEARING, Roller, FORWARD GEAR
-
5152-63314 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5217-30535 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
5353-32449 RING, Retaining, CROSS PINRING, Retaining, CROSS PIN
-
5431334 FOLLOWERFOLLOWER
-
5524-76298 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5644-75667A2 PROELLER SHAFT ASSEMBLYPROELLER SHAFT ASSEMBLY
-
5743-63316 GEAR, ReverseGEAR, Reverse
-
5871479 SLEEVE, THRUST - REVERSE GEARSLEEVE, THRUST - REVERSE GEAR
-
5915-30532A1 SHIM ASSEMBLY (.002-3-5-10)SHIM ASSEMBLY (.002-3-5-10)
-
6030-21889 BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
6125-30529 O-RING, (1.925 x .103), BEARING CARRIERO-RING, (1.925 x .103), BEARING CARRIER
-
6272673T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6331-22458 BEARING, Roller, BEARING CARRIERBEARING, Roller, BEARING CARRIER
-
6426-66022 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
6586236 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6686665A1 COLLAR, PROPELLERCOLLAR, PROPELLER
-
6748-63494A10 PROPELLER ASSEMBLY
(2 BLADE - ALUMINUM - 7" PITCH)PROPELLER ASSEMBLY
(2 BLADE - ALUMINUM - 7" PITCH) -
6748-63494A10 PROPELLER ASSEMBLY
(2 BLADE ALUMINUM - 6" PITCH)PROPELLER ASSEMBLY
(2 BLADE ALUMINUM - 6" PITCH) -
6811-64075A1 SPACER, SPLINED - PROPELLER NUTSPACER, SPLINED - PROPELLER NUT
-
6911-64075A1 NUTNUT
-
-27-78139A80 GASKET SETGASKET SET
