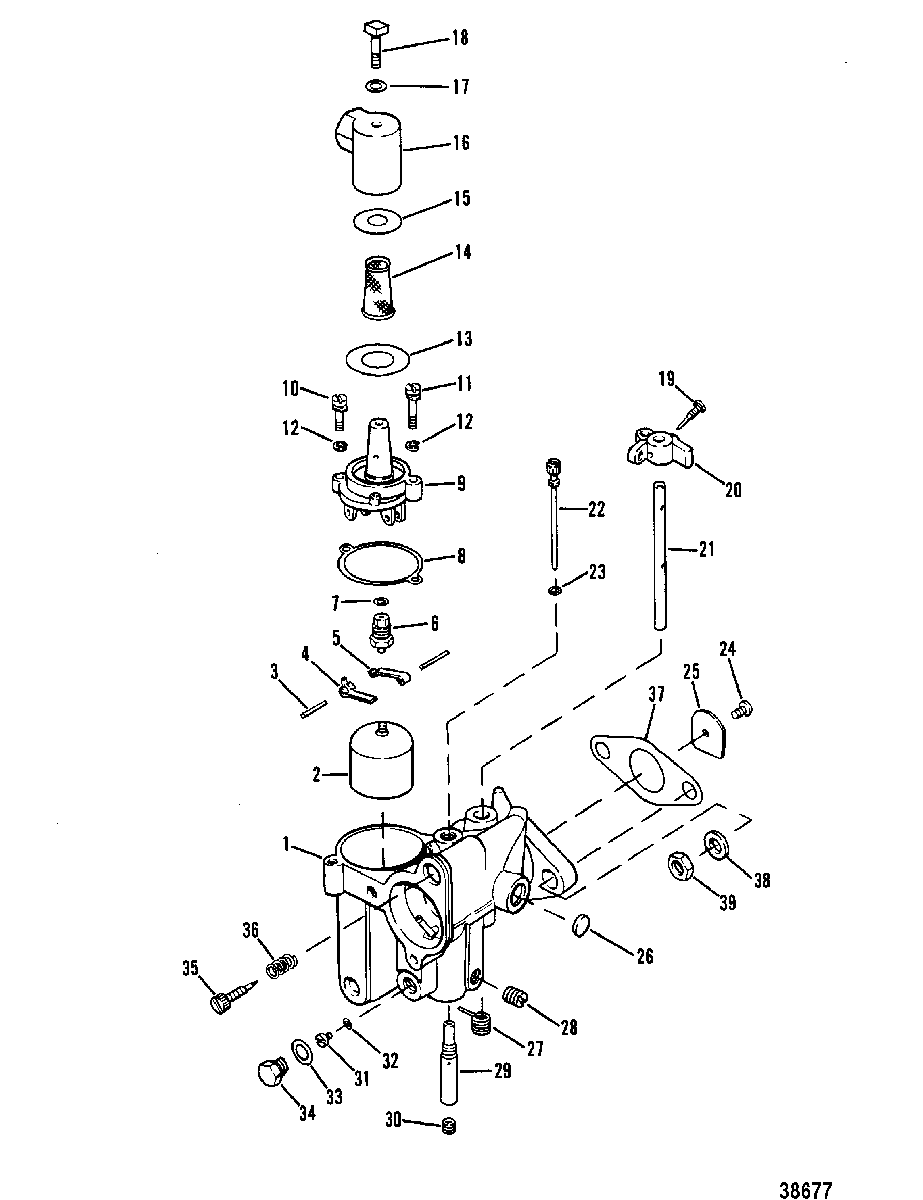

CARBURETOR ASSEMBLY(TILLOTSON) для Mercury - 4.5 (1 CYL.) 8068065 & Up
-
№АртикулНазвание
-
11341-8740A1 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3NSS NOT SOLD SEPARATE, Pin-Float Lever PinionNOT SOLD SEPARATE, Pin-Float Lever Pinion
-
4NSS NOT SOLD SEPARATE, Float Lever-LowerNOT SOLD SEPARATE, Float Lever-Lower
-
5NSS NOT SOLD SEPARATE, Float Lever-UpperNOT SOLD SEPARATE, Float Lever-Upper
-
61395-92581 NEEDLE/SEAT KIT, Inlet, SEAT AND GASKETNEEDLE/SEAT KIT, Inlet, SEAT AND GASKET
-
7NSS NOT SOLD SEPARATE, Gasket-Inlet SeatNOT SOLD SEPARATE, Gasket-Inlet Seat
-
8NSS NOT SOLD SEPARATE, Gasket-Float Bowl CoverNOT SOLD SEPARATE, Gasket-Float Bowl Cover
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL (SHORT)SCREW, FLOAT BOWL (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREWLOCKWASHER, (#8) Stainless Steel, FLOAT BOWL COVER SCREW
-
13NSS NOT SOLD SEPARATE, Gasket-Strainer cover (Large)NOT SOLD SEPARATE, Gasket-Strainer cover (Large)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
15NSS NOT SOLD SEPARATE, Gasket, Strainer cover (Small)NOT SOLD SEPARATE, Gasket, Strainer cover (Small)
-
161399-1135 COVER, STRAINER (90 DEGREES)COVER, STRAINER (90 DEGREES)
-
17NSS NOT SOLD SEPARATE, Gasket, Strainer cover ScrewNOT SOLD SEPARATE, Gasket, Strainer cover Screw
-
1810-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
211399-1716 SHAFTSHAFT
-
22NSS NOT SOLD SEPARATE, Idle TubeNOT SOLD SEPARATE, Idle Tube
-
23NSS NOT SOLD SEPARATE, Gasket, Idle tubeNOT SOLD SEPARATE, Gasket, Idle tube
-
24NSS NOT SOLD SEPARATE, Screw-throttle ShutterNOT SOLD SEPARATE, Screw-throttle Shutter
-
251399-3739 SHUTTERSHUTTER
-
26NSS NOT SOLD SEPARATE, Welch Plug, Body ChannelNOT SOLD SEPARATE, Welch Plug, Body Channel
-
27NSS NOT SOLD SEPARATE, Spring, throttle shaft returnNOT SOLD SEPARATE, Spring, throttle shaft return
-
2810-28845 SCREW, PLUG-BODY CHANNELSCREW, PLUG-BODY CHANNEL
-
29NSS NOT SOLD SEPARATE, Main NozzleNOT SOLD SEPARATE, Main Nozzle
-
3010-23178 SCREW, PLUG-MAIN NOZZLESCREW, PLUG-MAIN NOZZLE
-
311399-3252 JET, (.032), MAIN FUELJET, (.032), MAIN FUEL
-
311399-3251 JET, (.034), MAIN FUELJET, (.034), MAIN FUEL
-
311399-3026 JET, (.036), MAIN FUEL-STANDARDJET, (.036), MAIN FUEL-STANDARD
-
311399-2407 JET, Main Fuel (.039)JET, Main Fuel (.039)
-
311399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
32NSS NOT SOLD SEPARATE, Gasket-Main Fuel JetNOT SOLD SEPARATE, Gasket-Main Fuel Jet
-
33NSS NOT SOLD SEPARATE, Gasket, Jet Channel Plug ScrewNOT SOLD SEPARATE, Gasket, Jet Channel Plug Screw
-
3410-28405 SCREW, PLUG-MAIN FUEL JET CHANNELSCREW, PLUG-MAIN FUEL JET CHANNEL
-
351399-3740 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
36NSS NOT SOLD SEPARATE, Spring, Idle Adjustment ScrewNOT SOLD SEPARATE, Spring, Idle Adjustment Screw
-
3727-63309 GASKET, CARBURETOR TO REED BLOCKGASKET, CARBURETOR TO REED BLOCK
-
3812-20583 WASHER, CARBURETOR MOUNTING STUDWASHER, CARBURETOR MOUNTING STUD
-
3911-24652 NUT, (.250-28), CARBURETOR MOUNTING STUDNUT, (.250-28), CARBURETOR MOUNTING STUD
-
-1399-1717 GASKET SETGASKET SET
-
-1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
