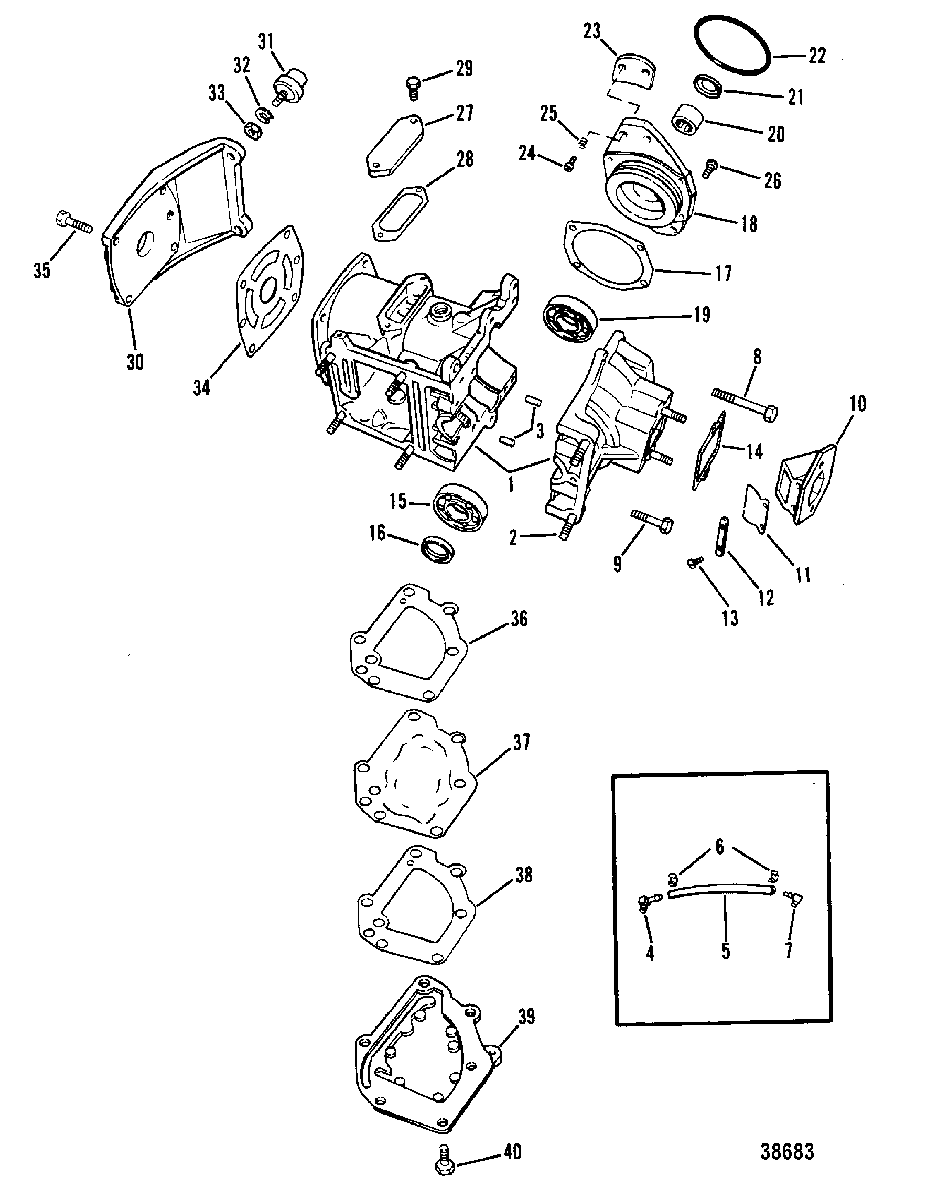

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 4.5 (1 CYL.) 8068065 & Up

  • №
    Артикул
    Название
  • 1
    843-8694A3 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    16-66021 STUD
    STUD
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
  • 4
    22-89275 FITTING, BLEED DRAIN
    FITTING, BLEED DRAIN
  • 5
    32-9912688 TUBING, (36.00 Inches Bulk), BLEED DRAIN
    TUBING, (36.00 Inches Bulk), BLEED DRAIN
  • 6
    54-68424 CLAMP, BLEED HOSE ATTACHING
    CLAMP, BLEED HOSE ATTACHING
  • 7
    22-887801 ELBOW, Tell-Tale Tubing, BLEED DRAIN
    ELBOW, Tell-Tale Tubing, BLEED DRAIN
  • 8
    10-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
  • 9
    10-76621 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 10
    70726 REED BLOCK
    REED BLOCK
  • 11
    34-35836 REED, INLET VALVE
    REED, INLET VALVE
  • 12
    34-22215 RETAINER, REED
    RETAINER, REED
  • 13
    10-28430 SCREW, (#6-32 x .25)
    SCREW, (#6-32 x .25)
  • 14
    27-357391 GASKET, REED BLOCK TO CRANKCASE
    GASKET, REED BLOCK TO CRANKCASE
  • 15
    30-72961 BEARING, Ball, CRANKCASE (LOWER)
    BEARING, Ball, CRANKCASE (LOWER)
  • 16
    26-56397 SEAL, Oil, CRANKCASE (LOWER)
    SEAL, Oil, CRANKCASE (LOWER)
  • 17
    15-31412A1 SHIM
    SHIM
  • 18
    1132-6352A1 HOUSING ASSEMBLY, Bearing, UPPER
    HOUSING ASSEMBLY, Bearing, UPPER
  • 19
    30-72961 BEARING, Ball, UPPER BEARING HOUSING
    BEARING, Ball, UPPER BEARING HOUSING
  • 20
    31-31410 BEARING, Roller, UPPER BEARING HOUSING
    BEARING, Roller, UPPER BEARING HOUSING
  • 21
    26-66301 SEAL, Oil, UPPER BEARING HOUSING
    SEAL, Oil, UPPER BEARING HOUSING
  • 22
    25-20863 O-RING, UPPER BEARING HOUSING
    O-RING, UPPER BEARING HOUSING
  • 23
    54-34598 CLAMP, HOLD DOWN
    CLAMP, HOLD DOWN
  • 24
    10-36205 SCREW, (#10-24 x .563)
    SCREW, (#10-24 x .563)
  • 25
    24-34731 SPRING, HOLD DOWN RING CLAMP
    SPRING, HOLD DOWN RING CLAMP
  • 26
    10-39002 SCREW (1/2")
    SCREW (1/2")
  • 27
    35658 COVER, TRANSFER COVER
    COVER, TRANSFER COVER
  • 28
    27-35657 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 29
    10-20720 SCREW, (.190-24 x .62)
    SCREW, (.190-24 x .62)
  • 30
    1016-7070A1 COVER ASSEMBLY, CYLINDER BLOCK
    COVER ASSEMBLY, CYLINDER BLOCK
  • 31
    66019 MOUNT, RUBBER - COVER TO TOP COWL
    MOUNT, RUBBER - COVER TO TOP COWL
  • 32
    13-20202 LOCKWASHER, RUBBER MOUNT
    LOCKWASHER, RUBBER MOUNT
  • 33
    11-22053 NUT, (.312-24), RUBBER MOUNT TO COVER
    NUT, (.312-24), RUBBER MOUNT TO COVER
  • 34
    27-416151 GASKET, COVER TO CYLINDER BLOCK
    GASKET, COVER TO CYLINDER BLOCK
  • 35
    10-76630 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 36
    27-416141 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 37
    46234 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 38
    27-416141 GASKET
    GASKET
  • 39
    46171 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 40
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • -
    27-78139A80 GASKET SET
    GASKET SET
  • -
    87096A79 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
