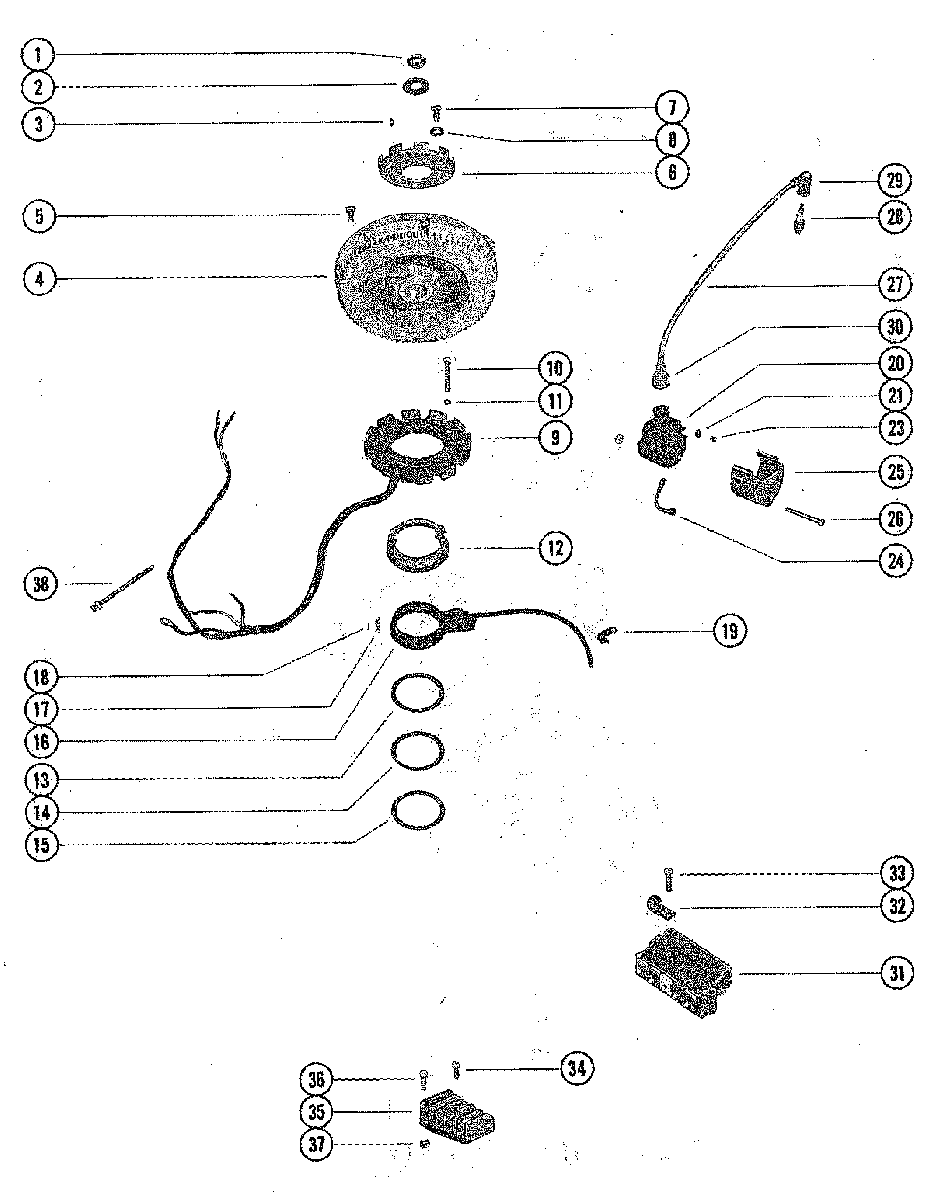

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402 8027440 THRU 8052124
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36258 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4242-4764A10 FLYWHEEL ASEEMBLY
UNITED STATES 4726797 AND BELOW
AUSTRALIA 8046299 AND BELOW
BELGIUM 9163104 AND BELOW
CANADA 7059933 AND BELOWFLYWHEEL ASEEMBLY
UNITED STATES 4726797 AND BELOW
AUSTRALIA 8046299 AND BELOW
BELGIUM 9163104 AND BELOW
CANADA 7059933 AND BELOW -
4242-4764A28 FLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPFLYWHEEL ASSEMBLY (MANUAL)
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
4242-4764A25 FLYWHEEL ASSEMBLY (ELECTRIC)
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPFLYWHEEL ASSEMBLY (ELECTRIC)
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")
-
650-65213 RATCHET, FLYWHEELRATCHET, FLYWHEEL
-
710-69088 SCREW, RATCHET TO FLYWHEEL (7/8")
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOWSCREW, RATCHET TO FLYWHEEL (7/8")
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOW -
710-69088 SCREW, RATCHET TO FLYWHEEL (7/8")
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UPSCREW, RATCHET TO FLYWHEEL (7/8")
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UP -
813-20202 LOCKWASHER, RATCHET SCREWLOCKWASHER, RATCHET SCREW
-
9398-5256 STATOR, IGNITION (MANUAL)STATOR, IGNITION (MANUAL)
-
9398-5255 STATOR, ALTERNATOR (ELECTRIC)STATOR, ALTERNATOR (ELECTRIC)
-
1010-56787 SCREW, STATOR TO UPPER END CAPT (2")SCREW, STATOR TO UPPER END CAPT (2")
-
1113-26996 LOCKWASHER, STATOR SCREWLOCKWASHER, STATOR SCREW
-
1261830 STATOR SUPPORTSTATOR SUPPORT
-
1312-62133 WASHER, TRIGGER TO STATOR SUPPORT (UPPER)WASHER, TRIGGER TO STATOR SUPPORT (UPPER)
-
1413-61983 WASHER, WAVE - TRIGGER TO STATOR SUPPORT (CENTER)WASHER, WAVE - TRIGGER TO STATOR SUPPORT (CENTER)
-
1512-61982 WASHER, TRIGGER TO STATOR SUPPORT (LOWER)WASHER, TRIGGER TO STATOR SUPPORT (LOWER)
-
16338-4731A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1724-62095 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1817-62768 PIN, SPRING RETENTIONPIN, SPRING RETENTION
-
1954-54457 "J" CLIP, TRIGGER LEADS TO RUBBER SUPPORT MOUNT"J" CLIP, TRIGGER LEADS TO RUBBER SUPPORT MOUNT
-
20339-5288T2 IGNITION COIL ASSEMBLY, COMPLETE
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOWIGNITION COIL ASSEMBLY, COMPLETE
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOW -
20339-5288T2 IGNITION COIL ASSEMBLY, COMPLETE
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UPIGNITION COIL ASSEMBLY, COMPLETE
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UP -
2123-62769 SPACER, COIL SWITCH BOX LEAD TERMINALSPACER, COIL SWITCH BOX LEAD TERMINAL
-
2311-45076 NUT, COIL TERMINALSNUT, COIL TERMINALS
-
2484-60466A1 GROUNG WIRE, COIL GROUND TO COIL COVER SCREWGROUNG WIRE, COIL GROUND TO COIL COVER SCREW
-
2576254 COVER, IGNITION COILCOVER, IGNITION COIL
-
2610-69002 SCREW, COIL COVER TO COIL BRACKET (1 2/4")SCREW, COIL COVER TO COIL BRACKET (1 2/4")
-
2610-60194 SCREW, COIL COVER TO COIL BRACKET (2 1/8")SCREW, COIL COVER TO COIL BRACKET (2 1/8")
-
2784-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
-
2833-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
2985-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
30332-2854T01 BOOT, LEAD TO IGNITION COILBOOT, LEAD TO IGNITION COIL
-
31332-4911A8 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
3254-54457 "J" CLIP, SWITCH BOX LEADS"J" CLIP, SWITCH BOX LEADS
-
3310-69067 SCREW, SWITCH BOX "J" CLIP TO BRACKETSCREW, SWITCH BOX "J" CLIP TO BRACKET
-
3410-45218 SCREW, TERMINAL BLOCK AND SWITCH BOX (3/8")SCREW, TERMINAL BLOCK AND SWITCH BOX (3/8")
-
3586-66754 TERMINAL BLOCK, SWITCH BOX LEADTERMINAL BLOCK, SWITCH BOX LEAD
-
3610-38055 SCREW, TERMINAL BLOCK ATTACHINGSCREW, TERMINAL BLOCK ATTACHING
-
3711-8267086 NUT, TERMINAL BLOCK ATTACHING SCREWSNUT, TERMINAL BLOCK ATTACHING SCREWS
-
3830660 STA-STRAP, STATOR LEADSSTA-STRAP, STATOR LEADS
Все узлы модели:
- BOTTOM COWL AND EXHAUST PLATE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
- CYLINDER BLOCK AND COIL MOUNTING BRACKET
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- • FLYWHEEL, IGNITION COIL AND SWITCH BOX
- FUEL PUMP ASSEMBLY AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- STARTER HOUSING
- STARTER MOTOR, RECTIFIER AND WIRING HARNESS
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TOP COWL ASSEMBLY
