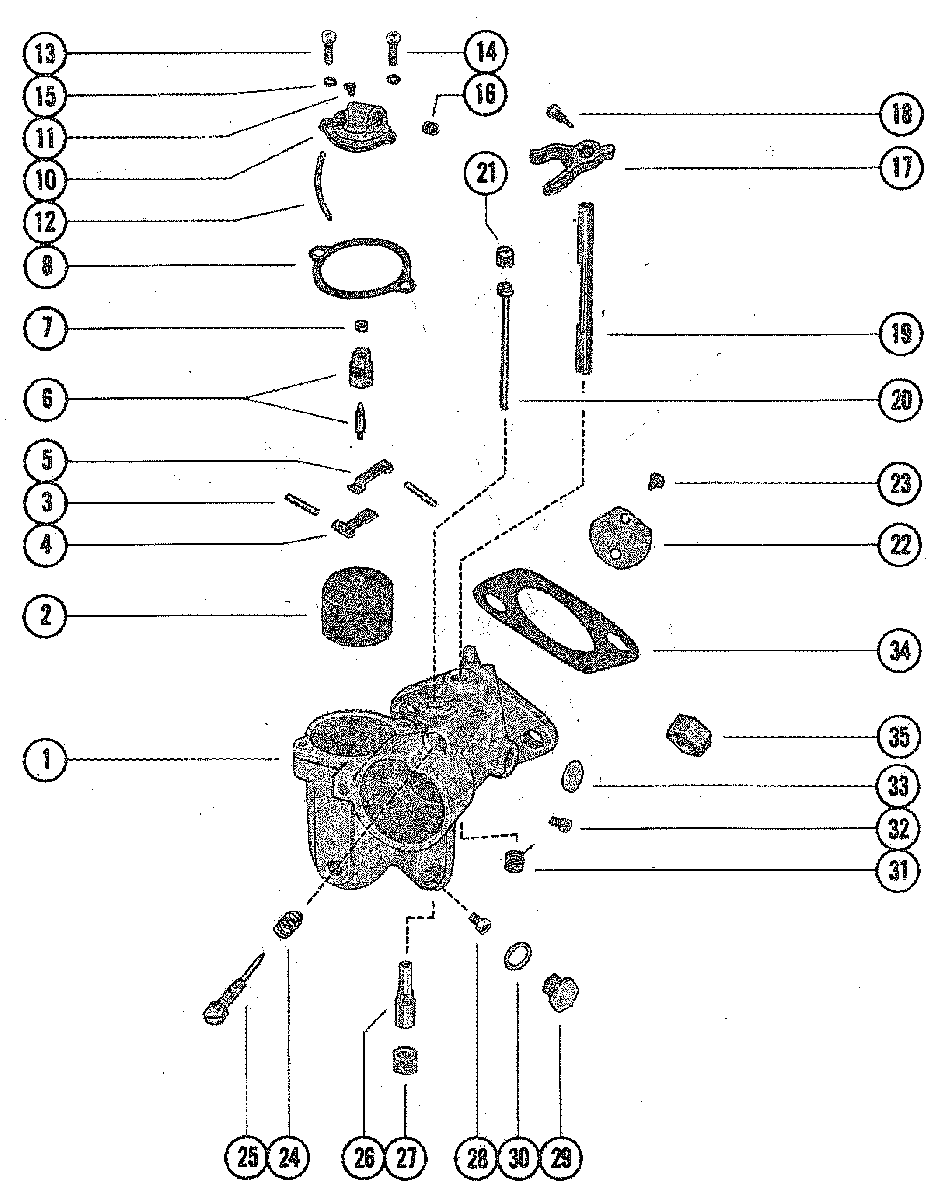

CARBURETOR ASSEMBLY для Mercury - 402 8027440 THRU 8052124
-
№АртикулНазвание
-
11368-5805A1 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN,FLOAT LEVER PINIONPIN,FLOAT LEVER PINION
-
490-8M0143356 KEVERM FKIAT (LOWER)KEVERM FKIAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASEKT, FLOAT BOWL COVERGASEKT, FLOAT BOWL COVER
-
101395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
111395-5733 JET, BOWL VENTJET, BOWL VENT
-
1232-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1310-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
141395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1513-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
161395-4805 SCREEN,FILTERSCREEN,FILTER
-
1774371 CLUSTER, THROTTLE
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOWCLUSTER, THROTTLE
UNITED STATES 4362214 AND BELOW
AUSTRALIA 8036449 AND BELOW
BELGIUM 9108563 AND BELOW
CANADA 7070272 AND BELOW -
1774371 CLUSTER, THROTTLE
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UPCLUSTER, THROTTLE
UNITED STATES 4362215 AND UP
AUSTRALIA 8036450 AND UP
BELGIUM 9108564 AND UP
CANADA 7070273 AND UP -
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
191395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2090-8M0143356 TUBE, IDLETUBE, IDLE
-
211395-4540 SCREW, BOD (IDLE TUBE)SCREW, BOD (IDLE TUBE)
-
221395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2390-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
2490-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
251399-5315 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2690-8M0143356 NOZZLE MAINNOZZLE MAIN
-
271395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
281395-6201 JET MAIN FULE (.080)JET MAIN FULE (.080)
-
281399-3520 JET, MAIN (.0785) - STANDARDJET, MAIN (.0785) - STANDARD
-
281399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
281399-3794 JET, MAIN FUEL (.074)JET, MAIN FUEL (.074)
-
291395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3190-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
321395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
3390-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1395-879194024 GASKET, PACKING SET (1 PER CARBURETOR)GASKET, PACKING SET (1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3427-481641 GASKET, CARUBRETOR FLANGEGASKET, CARUBRETOR FLANGE
-
3511-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
