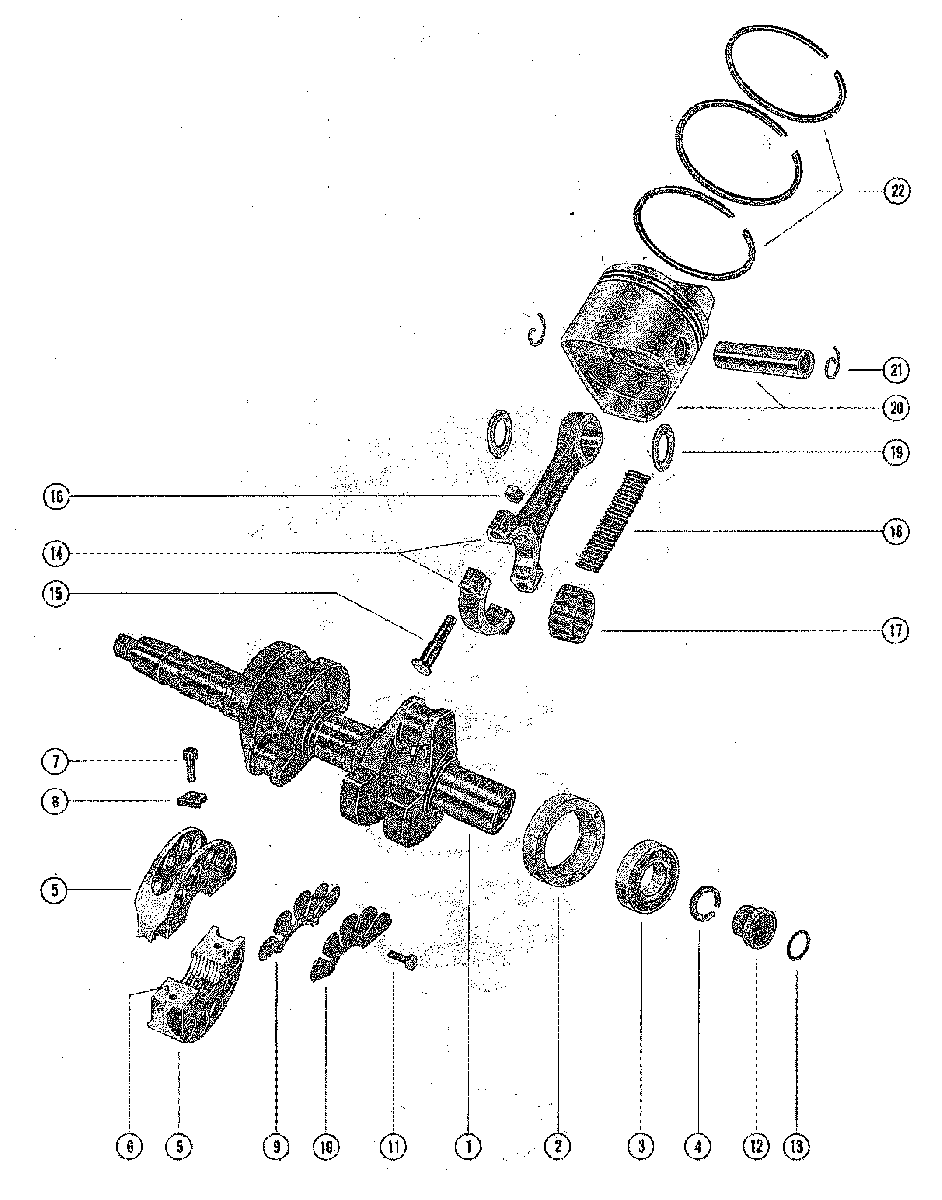

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 402 8027440 THRU 8052124
-
№АртикулНазвание
-
1454-9073A1 CRANKSHAFT ASESMBLYCRANKSHAFT ASESMBLY
-
278308A1 RETAINER ASSEMBLY, BALL BEARINGRETAINER ASSEMBLY, BALL BEARING
-
330-63742T BALL BEARING,RETAINER (CRANKSHAFT)BALL BEARING,RETAINER (CRANKSHAFT)
-
453-63634 RETAINING RING, BALL BEARINGRETAINING RING, BALL BEARING
-
5540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
617-20032 DOWEL PIN,MAIN BEARINGDOWEL PIN,MAIN BEARING
-
710-45775 SCREW,MAIN BEARING CLAMPING (9/16")SCREW,MAIN BEARING CLAMPING (9/16")
-
811-45774 NUT,MAIN BEARING CLAMPING SCREWNUT,MAIN BEARING CLAMPING SCREW
-
934-56007A1 REED SET, MAIN BEARING (MATCHED)REED SET, MAIN BEARING (MATCHED)
-
1034-56008 REED STOP,MAIN BEARING REED VALVESREED STOP,MAIN BEARING REED VALVES
-
1110-20055 SCREW,REED STOP MOUNTING (3/8")SCREW,REED STOP MOUNTING (3/8")
-
1260834A3 CARRIER ASSEMBLY,SEAL
PART OF A-454-5628A3 CRANKSHAFT ASSEMBLYCARRIER ASSEMBLY,SEAL
PART OF A-454-5628A3 CRANKSHAFT ASSEMBLY -
1364254001 SEAL,CARRIERSEAL,CARRIER
-
14624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-54803 SCRWE, CONNECTING RODSCRWE, CONNECTING ROD
-
1611-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1731-62596A1 BEARING ASSEMBLY,CRANKPINBEARING ASSEMBLY,CRANKPIN
-
1829-47270 BEARING, NEEDLE-PISTON PINBEARING, NEEDLE-PISTON PIN
-
1912-8M0032839 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
20774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2153-857196 LOCK RING,PISTON PINLOCK RING,PISTON PIN
-
2239-78816A12 RING,PISTONRING,PISTON
-
-774-9137A13 PISTON AND PISTON PIN ASSEMBLY
.015 OVERSIZE PISTONS AND RINGSPISTON AND PISTON PIN ASSEMBLY
.015 OVERSIZE PISTONS AND RINGS -
-39-78811A12 RING,PISTON(.015 OVERSIZE)
.015 OVERSIZE PISTONS AND RINGSRING,PISTON(.015 OVERSIZE)
.015 OVERSIZE PISTONS AND RINGS
