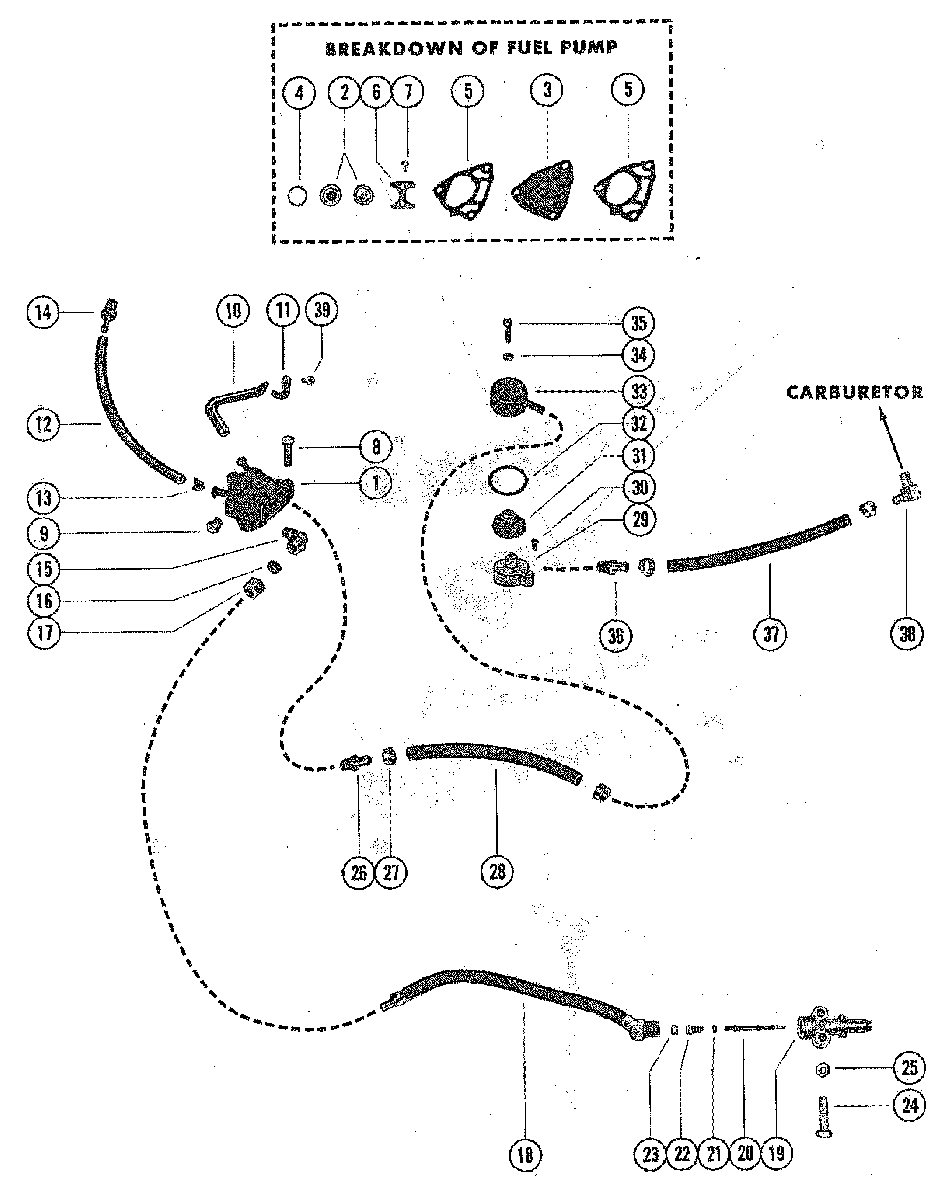

FUEL PUMP ASSEMBLY AND FUEL LINES для Mercury - 402 7047608 THRU 7112422
-
№АртикулНазвание
-
162973A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A3 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
590-8M0143356 GASKET,FUEL PUMPGASKET,FUEL PUMP
-
623004 RETAINER,CHECK VALVERETAINER,CHECK VALVE
-
790-98789 SCREW,RETAINER TO HOUSINGSCREW,RETAINER TO HOUSING
-
810-69093 SCREW,FUEL PUMP MOUNTING(1 1/2")SCREW,FUEL PUMP MOUNTING(1 1/2")
-
922-328022 PLUG,PIPE-FUEL PUMPPLUG,PIPE-FUEL PUMP
-
1069791A2 HOSE AND NOZZLE, TELL TALE-PART OF BOTTOM COWL ASSEMBLYHOSE AND NOZZLE, TELL TALE-PART OF BOTTOM COWL ASSEMBLY
-
1166849 CLAMP,TELL TALE HOSE AND NOZZLE-PART OF BOTTOM COWL ASSEMBLYCLAMP,TELL TALE HOSE AND NOZZLE-PART OF BOTTOM COWL ASSEMBLY
-
1232-8M0108355 HOSE ASSEMBLY,CYLINDER BLOCK TO FUEL PUMP (11")HOSE ASSEMBLY,CYLINDER BLOCK TO FUEL PUMP (11")
-
1354-20386 CLAMP,HOSECLAMP,HOSE
-
1422-291112 FITTING,BLOCK TO FUEL PUMP HOSEFITTING,BLOCK TO FUEL PUMP HOSE
-
1522-30174 ELBOW,PUMP INLET TO FUEL LINE (90)ELBOW,PUMP INLET TO FUEL LINE (90)
-
1622-30175 SLEEVE,RUBBER-ELBOWSLEEVE,RUBBER-ELBOW
-
1722-30177 ,NUT,ELBOW TO FUEL LINE,NUT,ELBOW TO FUEL LINE
-
1832-56367 FUEL LINE, FUEL PUMP TO ADAPTORFUEL LINE, FUEL PUMP TO ADAPTOR
-
1922833 ADAPTOR, CHECK UNIT (FUEL PUMP)ADAPTOR, CHECK UNIT (FUEL PUMP)
-
2023069 STEM,CHECK UNIT ADAPTORSTEM,CHECK UNIT ADAPTOR
-
2125-16524 "O" RING,ADAPTOR STEM"O" RING,ADAPTOR STEM
-
2224-23067T SPRING,ADAPTOR STEMSPRING,ADAPTOR STEM
-
2330188 CUP WASHER,ADAPTORCUP WASHER,ADAPTOR
-
2410-56500 SCREW,ADAPTOR TO BOTTOM COWL(1 1/4")SCREW,ADAPTOR TO BOTTOM COWL(1 1/4")
-
2511-826709109 NUT,ADAPTOR SCREWNUT,ADAPTOR SCREW
-
2622-70007 FITTING,FUELFITTING,FUEL
-
2754-68424 CLAMP,FUEL LINE ATTACHINGCLAMP,FUEL LINE ATTACHING
-
2832-8M0108355 FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
-
2970929 BASE,FUEL PUMPBASE,FUEL PUMP
-
3010-71913 SCREW,BASE TO TRANSFER PORT COVERSCREW,BASE TO TRANSFER PORT COVER
-
3135-59072 SCREEN, FILTER-INLETSCREEN, FILTER-INLET
-
3225-35480 "O" RING, COVER TO HOUSING"O" RING, COVER TO HOUSING
-
3335-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
3427-25848 GASKET, NYLON-FILTER COVER SCREWGASKET, NYLON-FILTER COVER SCREW
-
3510-37370 SCREW,COVER TO FUEL PUMP (5/8")SCREW,COVER TO FUEL PUMP (5/8")
-
3622-64705 FITTING,FILTER BASEFITTING,FILTER BASE
-
3732-8M0108355 FUEL LINE,FILTER COVER TO BASE PUMP(6")FUEL LINE,FILTER COVER TO BASE PUMP(6")
-
3822-19688 FITTING,ELBOW-CARBURETORFITTING,ELBOW-CARBURETOR
-
3910-48408 SCREW,CLAMP TO BOTTOM COWLSCREW,CLAMP TO BOTTOM COWL
