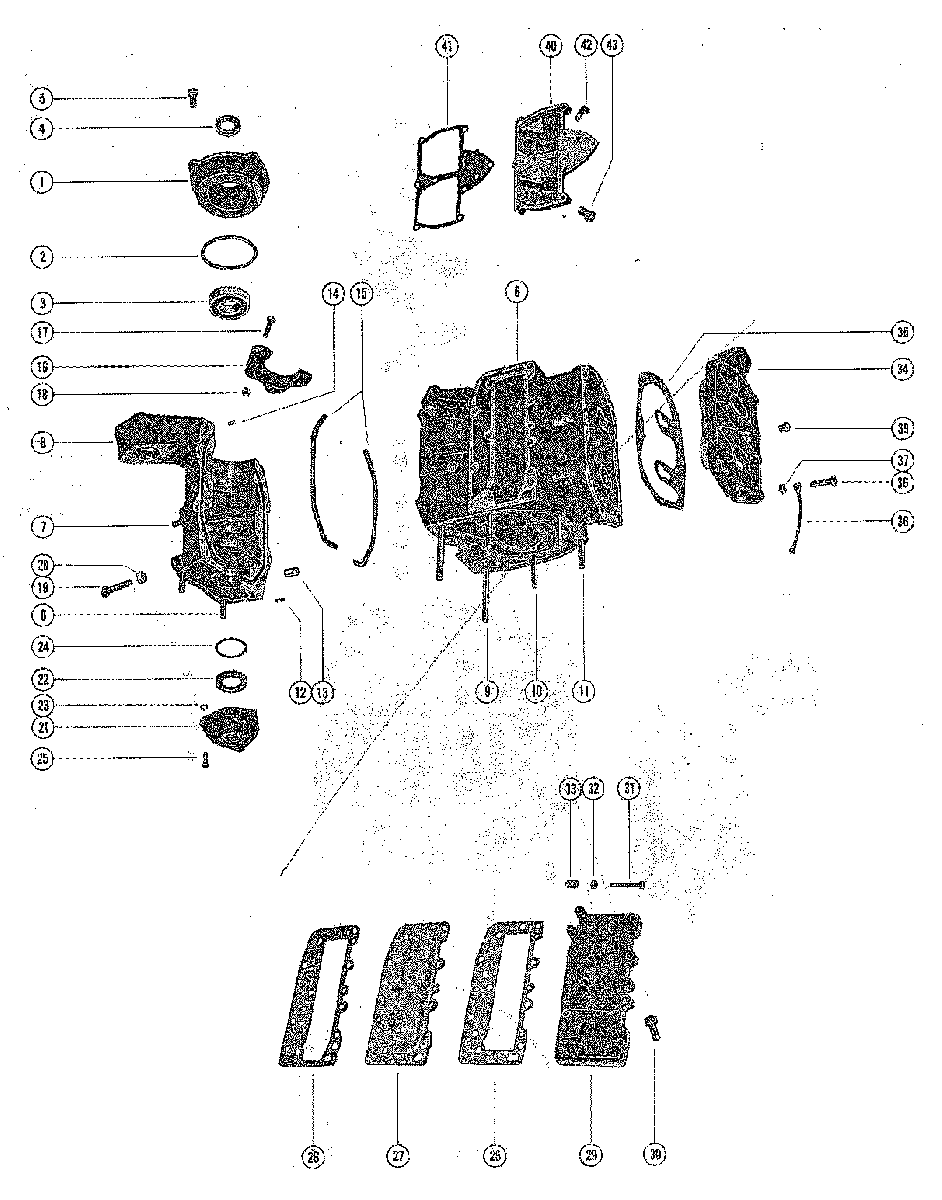

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 402 7047608 THRU 7112422

  • №
    Артикул
    Название
  • 1
    1151-4732A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
    0 ₽
  • 2
    25-47254 "O" RING, UPPER END CAP
    "O" RING, UPPER END CAP
    430 ₽
  • 3
    31-62066T BALL BEARING, UPPER END CAP
    BALL BEARING, UPPER END CAP
    18 980 ₽
  • 5
    10-30225 SCREW,UPPER END CAP MOUNTING (1")
    SCREW,UPPER END CAP MOUNTING (1")
    70 ₽
  • 6
    851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS"Y
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASS"Y
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    0 ₽
  • 6
    851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS"Y
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    CYLINDER BLOCK AND CRANKCASE ASS"Y
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    0 ₽
  • 7
    16-64936 STUD,CARBURETOR MOUNTING (1 1/4")
    STUD,CARBURETOR MOUNTING (1 1/4")
    0 ₽
  • 8
    16-68165 STUD,CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD,CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    0 ₽
  • 9
    16-68168 STUD, CYLINDER BLOCK TO DRIBE SHAFT HOUSING (3 11/16")
    STUD, CYLINDER BLOCK TO DRIBE SHAFT HOUSING (3 11/16")
    0 ₽
  • 10
    16-68166 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/64")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/64")
    4 770 ₽
  • 11
    16-68167 STUD,CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 9/16")
    STUD,CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 9/16")
    1 940 ₽
  • 12
    17-57211 DOWEL PIN, RETAINER TO CYLINDER BLOCK
    DOWEL PIN, RETAINER TO CYLINDER BLOCK
    0 ₽
  • 13
    17-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    290 ₽
  • 14
    17-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    320 ₽
  • 15
    27-55158 GASKET,SEALING-CYLINDER BLOCK
    GASKET,SEALING-CYLINDER BLOCK
    230 ₽
  • 16
    62064 BRACKET, STARTER MOTOR
    BRACKET, STARTER MOTOR
    0 ₽
  • 17
    10-35213 SCREW,BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRIC
    SCREW,BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRIC
    0 ₽
  • 17
    10-21339 SCREW,STARTER MOTOR BRACKET TO BLOCK (1 3/8") - MANUAL
    SCREW,STARTER MOTOR BRACKET TO BLOCK (1 3/8") - MANUAL
    0 ₽
  • 18
    11-29250 NUT,STARTER MOTOR BRACKET SCREW - MANUAL
    NUT,STARTER MOTOR BRACKET SCREW - MANUAL
    180 ₽
  • 19
    10-69096 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")0
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")0
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    0 ₽
  • 19
    10-69098 SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    0 ₽
  • 19
    10-69090 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    0 ₽
  • 20
    11-29250 NUT,CRANKCSAE FASTENING SCREW
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    NUT,CRANKCSAE FASTENING SCREW
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    180 ₽
  • 19
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    230 ₽
  • 19
    10-63328 SCREW, CRANKCASE TO CYLINDER BLOCK (3")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    SCREW, CRANKCASE TO CYLINDER BLOCK (3")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    490 ₽
  • 21
    1152-7267A1 END CAP ASSEMBLY,LOWER
    END CAP ASSEMBLY,LOWER
    0 ₽
  • 22
    26-41953 OIL SEAL,LOWER END CAP
    OIL SEAL,LOWER END CAP
    1 140 ₽
  • 23
    25-64068 "O" RING,LOWER END CAP SCREW
    "O" RING,LOWER END CAP SCREW
    120 ₽
  • 24
    25-823683 "O" RING,LOWER END CAP
    "O" RING,LOWER END CAP
    220 ₽
  • 25
    10-63365 SCREW,LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
    SCREW,LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
    0 ₽
  • 26
    27-854891 GASKET,CYLINDER BLOCK TO BAFFLE PLATE
    GASKET,CYLINDER BLOCK TO BAFFLE PLATE
    0 ₽
  • 27
    55190 PLATE,DIVIDER-EXHAUST MANIFOLD
    PLATE,DIVIDER-EXHAUST MANIFOLD
    0 ₽
  • 28
    27-854882 GASKET,BAFFLE PLATE TO EXHAUST COVER
    GASKET,BAFFLE PLATE TO EXHAUST COVER
    600 ₽
  • 29
    551572 COVER,EXHAUST MANIFOLD
    COVER,EXHAUST MANIFOLD
    0 ₽
  • 30
    10-60411 SCREW,MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")
    SCREW,MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")
    130 ₽
  • 30
    10-31984 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")
    140 ₽
  • 31
    10-64021 SCREW,ADJUSTING-EXHAUST COVER (1 7/8")
    SCREW,ADJUSTING-EXHAUST COVER (1 7/8")
    0 ₽
  • 32
    11-64015 NUT,ADJUSTING SCREW
    NUT,ADJUSTING SCREW
    150 ₽
  • 33
    26852 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
    320 ₽
  • 34
    1024-91101 COVER,CYLINDER BLOCK
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    COVER,CYLINDER BLOCK
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 35
    27-85490 GASKET, CYLINDER BLOCK COVER
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    GASKET, CYLINDER BLOCK COVER
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 34
    1024-91101 COVER,CYLINDER BLOCK
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    COVER,CYLINDER BLOCK
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 35
    27-85490 GASKET, CYLINDER BLOCK COVER
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    GASKET, CYLINDER BLOCK COVER
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 36
    10-56500 SCREW,CYLINDER BLOCK COVER MOUNTING (1 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    SCREW,CYLINDER BLOCK COVER MOUNTING (1 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    210 ₽
  • 37
    11-20184 NUT, COVER MOUNTING SCREW
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    NUT, COVER MOUNTING SCREW
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    120 ₽
  • 36
    10-76213 SCREW,CYLINDER BLOCK COVER MOUNTING (1 1/8")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    SCREW,CYLINDER BLOCK COVER MOUNTING (1 1/8")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    150 ₽
  • 38
    46933A3 GROUND STRAP,POWERHEAD TO BOTTOM COWL
    GROUND STRAP,POWERHEAD TO BOTTOM COWL
    0 ₽
  • 39
    22-328022 PLUG,PIPE-CYLINDER BLOCK COVER
    PLUG,PIPE-CYLINDER BLOCK COVER
    600 ₽
  • 40
    63970 COVER,TRANSFER PORT
    COVER,TRANSFER PORT
    0 ₽
  • 41
    27-552791 GASKET,TRANSFER PORT COVER
    GASKET,TRANSFER PORT COVER
    660 ₽
  • 42
    54-54457 "J" CLIP, COIL HARNESS
    "J" CLIP, COIL HARNESS
    280 ₽
  • 43
    10-76630 SCREW,TRANSFER PORT COVER MOUNTING (1")
    SCREW,TRANSFER PORT COVER MOUNTING (1")
    170 ₽
