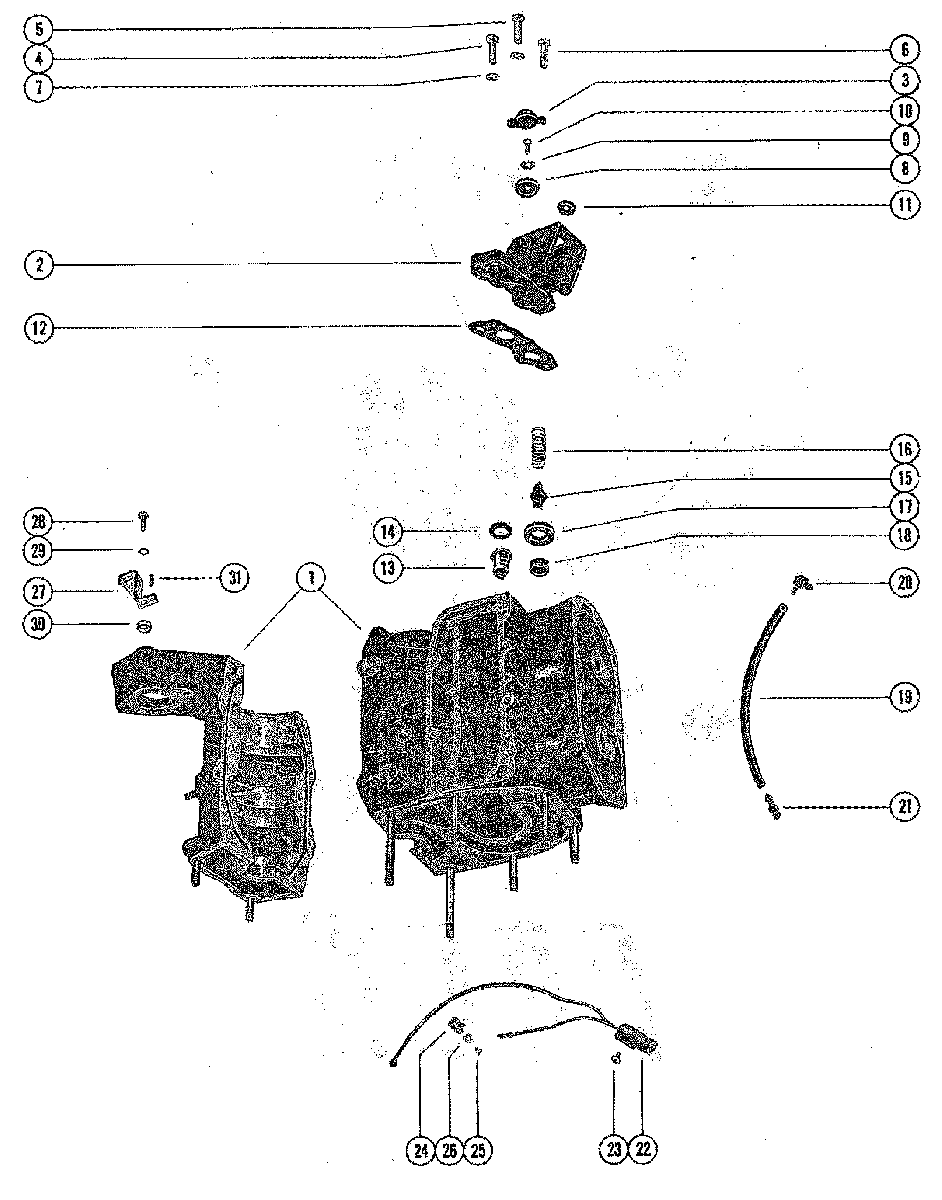

CYLINDER BLOCK AND COIL MOUNTING BRACKET для Mercury - 402 7047608 THRU 7112422
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS"Y
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWCYLINDER BLOCK AND CRANKCASE ASS"Y
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
1851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS"Y
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UPCYLINDER BLOCK AND CRANKCASE ASS"Y
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UP -
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
410-31984 SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")SCREW, COIL MOUNTING BRACKET TO BLOCK (1 3/8")
-
510-31984 SCREW,STARTER BRACKET AND COVER TO BLOCK (1 3/8")SCREW,STARTER BRACKET AND COVER TO BLOCK (1 3/8")
-
610-58414 SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")SCREW, COVER AND COIL BRACKET TO BLOCK (2 1/2")
-
713-26993 LOCKWASHER,COIL MOUNTING BRACKET SCREWLOCKWASHER,COIL MOUNTING BRACKET SCREW
-
8648771 DIAPHRAGM, POPPET VALVEDIAPHRAGM, POPPET VALVE
-
912-76451 WASHER,DIAPHRAGMWASHER,DIAPHRAGM
-
1010-69570 SCREW, WASHER AND DIAPHRAGM TO POPPET VALVESCREW, WASHER AND DIAPHRAGM TO POPPET VALVE
-
1125-39597 GROMMET,COIL MOUNTING BRACKETGROMMET,COIL MOUNTING BRACKET
-
1227-66847 GASKET,COIL MOUNTING BRACKET TO BLOCKGASKET,COIL MOUNTING BRACKET TO BLOCK
-
1375692 THERMOSTATTHERMOSTAT
-
1427-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
1586596 POPPET, RELIEF VALVEPOPPET, RELIEF VALVE
-
1624-66852 SPRING, COMPRESSION-POPPET RELIEF VALVESPRING, COMPRESSION-POPPET RELIEF VALVE
-
1765848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
1825-64872 GROMMET,POPPET VALVEGROMMET,POPPET VALVE
-
1932-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
2021-64871A3 ELBOW ASSEMBLY,CYLINDER BLEEDELBOW ASSEMBLY,CYLINDER BLEED
-
2122-56759 FITTING CYLINDER BLEEDFITTING CYLINDER BLEED
-
2258124A17 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
2310-48409 SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")SCREW, MERCURY SWITCH TO EXHAUST COVER (5/8")
-
2454-26550 CLIP, MERCURY SWITCH LEADCLIP, MERCURY SWITCH LEAD
-
2510-62568 SCREW, MERCURY SWITCH CLIP (3/8")SCREW, MERCURY SWITCH CLIP (3/8")
-
268M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
2776184 INDICATOR, TIMING
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPINDICATOR, TIMING
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
2810-25299 SCREW, INDICATOR ATTACHING (3/4")
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPSCREW, INDICATOR ATTACHING (3/4")
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
2912-20084 WASHER, INDICATOR ATTACHING SCREW
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPWASHER, INDICATOR ATTACHING SCREW
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
3023-62769 SPACER, INDICATOR ATTACHING SCREW
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPSPACER, INDICATOR ATTACHING SCREW
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP -
3117-29908 ROLL PIN, INDICATOR LOCATING
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UPROLL PIN, INDICATOR LOCATING
UNITED STATES 4726798 AND UP
AUSTRALIA 8046300 AND UP
BELGIUM 9163105 AND UP
CANADA 7101848 AND UP
