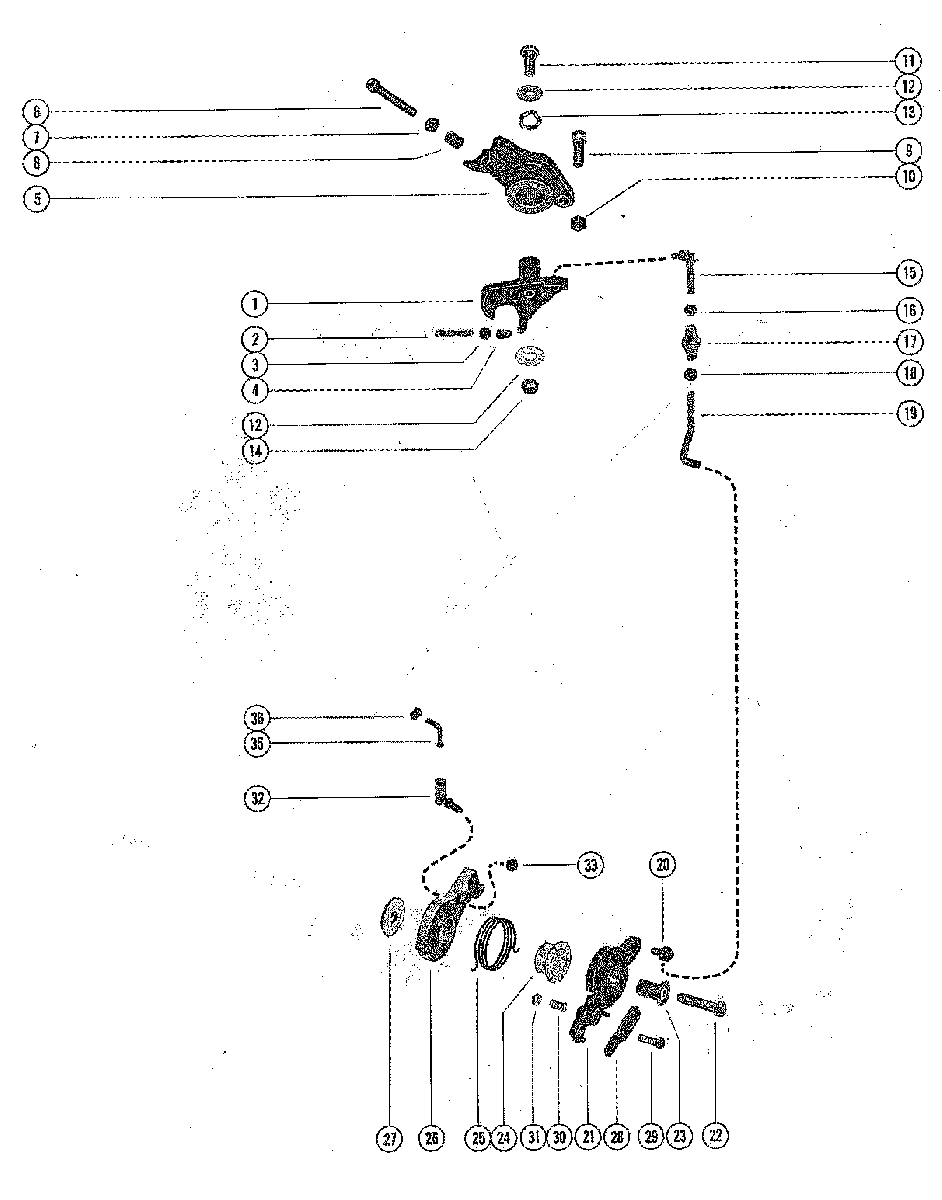

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 402 4117710 THRU 4860102
-
№АртикулНазвание
-
195044A1 THROTTLE CAM ACTUATORTHROTTLE CAM ACTUATOR
-
210-63102 SCREW,ADJUSTING-THROTTLE CAMSCREW,ADJUSTING-THROTTLE CAM
-
311-64015 NUT,JAM-ADJUSTING SCREWNUT,JAM-ADJUSTING SCREW
-
426852 CAP,NYLON-ADJUSTING SCREWCAP,NYLON-ADJUSTING SCREW
-
539522T BRACKET, THROTTLE CONTROL SHAFT(NOT AS SHOWN)BRACKET, THROTTLE CONTROL SHAFT(NOT AS SHOWN)
-
610-64021 SCREW,ADJUSTING-THROTTLE CONTROL BRACKET (1 7/8")SCREW,ADJUSTING-THROTTLE CONTROL BRACKET (1 7/8")
-
711-64015 NUT,JAM-ADJUSTING SCREWNUT,JAM-ADJUSTING SCREW
-
826852 CAP,NYLON-ADJUSTING SCREWCAP,NYLON-ADJUSTING SCREW
-
910-20639 SCREW,THROTTLE CONTROL BRACKET (1 1/8")SCREW,THROTTLE CONTROL BRACKET (1 1/8")
-
1011-29250 NUT,THROTTLE CONTROL BRACKET SCREWNUT,THROTTLE CONTROL BRACKET SCREW
-
1110-34438 SCREW,THROTTLE CONTROL BRACKET TO THROTTLE CAM(2 3/8")SCREW,THROTTLE CONTROL BRACKET TO THROTTLE CAM(2 3/8")
-
1212-25893 WASHER,THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREWWASHER,THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
-
1313-62172 WAVE WASHER,THROTTLE BRACKET/THROTTLE CAM SCREWWAVE WASHER,THROTTLE BRACKET/THROTTLE CAM SCREW
-
1411-29250 NUT,THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREWNUT,THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
-
1595044A1 BALL JOINT,THROTTLE CAMBALL JOINT,THROTTLE CAM
-
1611-20013 NUT,JAM-BALL JOINT TO TURNBUCKLENUT,JAM-BALL JOINT TO TURNBUCKLE
-
1795044A1 TURNBUCKLE,SPARK ADVANCE LINKAGETURNBUCKLE,SPARK ADVANCE LINKAGE
-
1811-20754 NUT,JAM-UPPER LINK ROD TO TURNBUCKLENUT,JAM-UPPER LINK ROD TO TURNBUCKLE
-
1995044A1 ROD,LINK UPPERROD,LINK UPPER
-
2057440 SWIVEL,UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL,UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
2195044A1 LEVER,THROTTLE CONTROLLEVER,THROTTLE CONTROL
-
2210-818165 SCREW,THROTTLE CONTROL LEVER TO CYLINDER BLOCK(1 3/4")SCREW,THROTTLE CONTROL LEVER TO CYLINDER BLOCK(1 3/4")
-
2323-55164 BUSHING,THROTTLE CONTROL LEVER SCREWBUSHING,THROTTLE CONTROL LEVER SCREW
-
2423-55171 BUSHING,THROTTLE CONTROL LEVER SCREWBUSHING,THROTTLE CONTROL LEVER SCREW
-
2524-55162 SPRING,RETURN-SPARK ADVANCE LEVERSPRING,RETURN-SPARK ADVANCE LEVER
-
2695044A1 LEVER,SPARK ADVANCELEVER,SPARK ADVANCE
-
2712-46765 WASHER,THROTTLE CONTROL LEVER SCREWWASHER,THROTTLE CONTROL LEVER SCREW
-
2839483 LATCH,THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH,THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
2910-69026 SCREW,LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW,LATCH TO THROTTLE CONTROL LEVER (7/8")
-
3024-20099 SPRING,COMPRESSION-LATCH SCREWSPRING,COMPRESSION-LATCH SCREW
-
3111-826709109 NUT,LATCH SCREWNUT,LATCH SCREW
-
3262459T BALL JOINT,SPARK ADVANCE LEVERBALL JOINT,SPARK ADVANCE LEVER
-
3311-46438 NUT,BALL JOINT TO SPARK ADVANCE LEVERNUT,BALL JOINT TO SPARK ADVANCE LEVER
-
3561940 LINK RODLINK ROD
-
3661939 PIVOT,THREADED-TRIGGER PLATE TO LINK RODPIVOT,THREADED-TRIGGER PLATE TO LINK ROD
