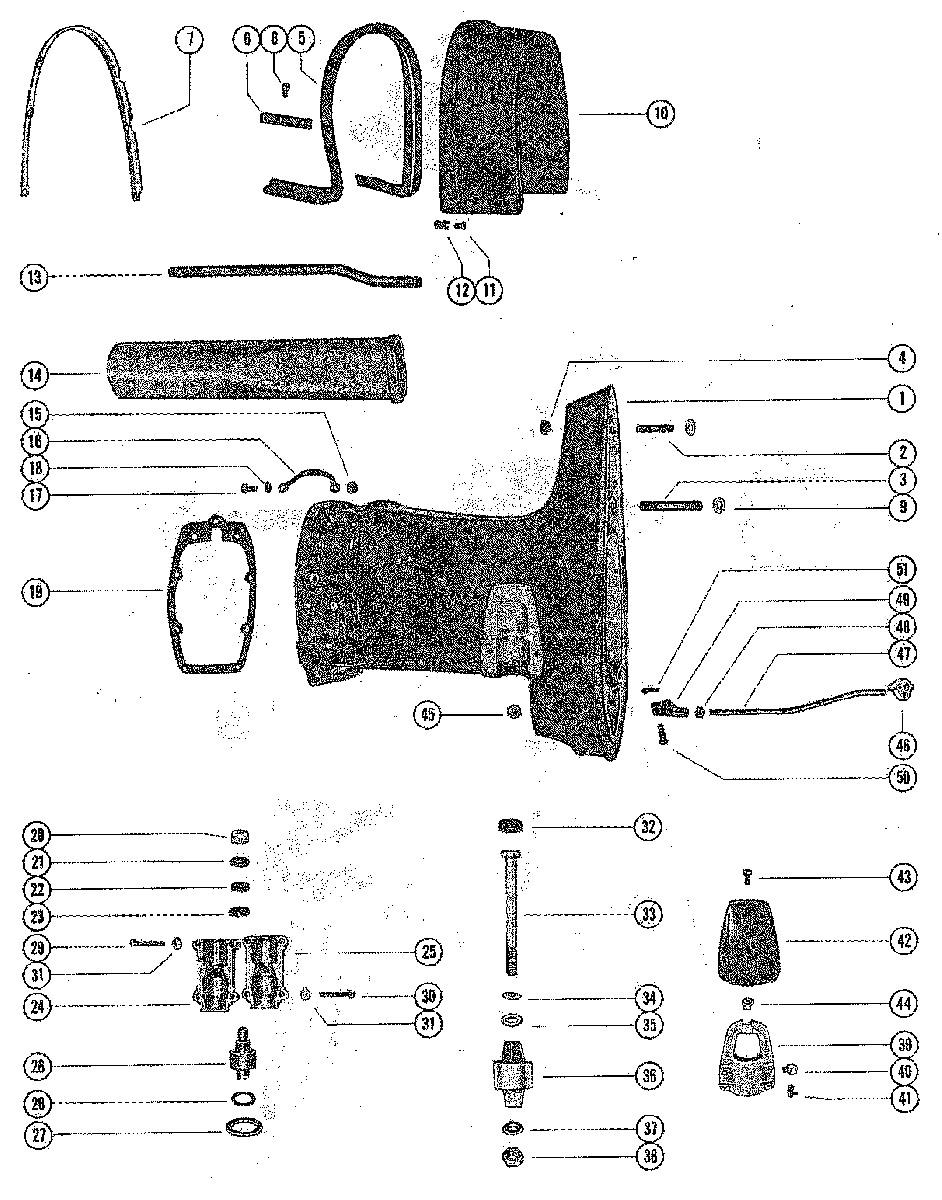

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 402 4117710 THRU 4860102
-
№АртикулНазвание
-
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UPDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UP -
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UPDRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UP -
216-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
316-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
419-64649 PLUG,PLASTIC-WATER PICK-UP HOLEPLUG,PLASTIC-WATER PICK-UP HOLE
-
563139 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
663177 STRIP, RETAINING-TRIM COVER SEAL(SIDE)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWSTRIP, RETAINING-TRIM COVER SEAL(SIDE)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
738158 STRIP, RETAINING-TRIM COVER SEAL (REAR)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWSTRIP, RETAINING-TRIM COVER SEAL (REAR)
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
810-48408 SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOWSCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")
UNITED STATES 4564001 AND BELOW
AUSTRALIA 8041799AND BELOW
BELGIUM 9135224 AND BELOW
CANADA 7086372 AND BELOW -
912-65791 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDSWASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
-
1060769 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
1110-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
1225-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
1332-37727 TUBE, WATER OUTLET(SHORT SHAFT)TUBE, WATER OUTLET(SHORT SHAFT)
-
1332-45679 TUBE, WATER OUTLET(LONG SHAFT)TUBE, WATER OUTLET(LONG SHAFT)
-
14695431 TUBE, EXHAUST(SHORT SHAFT)TUBE, EXHAUST(SHORT SHAFT)
-
14695441 TUBE, EXHAUST(LONG SHAFT)TUBE, EXHAUST(LONG SHAFT)
-
1511-64809 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1646933A2 GROUND STRAP,BOTTOM COWL TO DRIVE SHAFT HOUSINGGROUND STRAP,BOTTOM COWL TO DRIVE SHAFT HOUSING
-
1710-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
1813-69432 LOCKWASHER, GROUND STRAP SCREWLOCKWASHER, GROUND STRAP SCREW
-
1927-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
2011-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2112-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
2212-66966 WASHER, RUBBER- UPPER MOUNT BOLTWASHER, RUBBER- UPPER MOUNT BOLT
-
2312-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
2479680A1 COVER, UPPER MOUNT- OUTSIDE HALFCOVER, UPPER MOUNT- OUTSIDE HALF
-
2579680A1 COVER, UPPER MOUNT- INSIDE HALFCOVER, UPPER MOUNT- INSIDE HALF
-
2675301 MOUNT, RUBBER- UPPERMOUNT, RUBBER- UPPER
-
2724929 PACKING, "U" CUP- UPPER MOUNT COVERSPACKING, "U" CUP- UPPER MOUNT COVERS
-
2825-65936 "O" RING,UPPER MOUNT BOLT"O" RING,UPPER MOUNT BOLT
-
2910-37941 SCREW, UPPER MOUNT COVER-REAR (1 3/4")SCREW, UPPER MOUNT COVER-REAR (1 3/4")
-
3010-49987 SCRWE, UPPER MOUNT COVER -FRONT (1 1/2")SCRWE, UPPER MOUNT COVER -FRONT (1 1/2")
-
3111-69431 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3225067 BUMPER, RUBBER- LOWER MOUNT SCREWBUMPER, RUBBER- LOWER MOUNT SCREW
-
3310-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
3412-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3512-28053 WASHER, RUBBER- LOWER MOUNT SCREWWASHER, RUBBER- LOWER MOUNT SCREW
-
3675302T1 MOUNT, RUBBER- LOWERMOUNT, RUBBER- LOWER
-
3712-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3811-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
3969592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4010-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
4124-35522 SPRING, TENSION- LOWER MOUNT CLAMPSPRING, TENSION- LOWER MOUNT CLAMP
-
4235474T COVER,LOWER MOUNT CLAMPCOVER,LOWER MOUNT CLAMP
-
4310-29722 SCREW,COVER TO LOWER CLAMP(5/8")SCREW,COVER TO LOWER CLAMP(5/8")
-
4411-35521 NUT,LOWER MOUNT CLAMP COVERNUT,LOWER MOUNT CLAMP COVER
-
4511-34933 NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4652917 GUIDE, PUSH ROD
UNITED STATES 4275244 AND BELOW
AUSTRALIA 8033704 AND BELOW
BELGIUM 9099813 AND BELOW
CANADA 7059932 AND BELOWGUIDE, PUSH ROD
UNITED STATES 4275244 AND BELOW
AUSTRALIA 8033704 AND BELOW
BELGIUM 9099813 AND BELOW
CANADA 7059932 AND BELOW -
46933361 GUIDE, PUSH ROD
UNITED STATES 4275245 THRU 4564001
AUSTRALIA 8033705 THRU 8041799
BELGIUM 9099814 THRU 9135224
CANADA 7059933 THRU 7086372GUIDE, PUSH ROD
UNITED STATES 4275245 THRU 4564001
AUSTRALIA 8033705 THRU 8041799
BELGIUM 9099814 THRU 9135224
CANADA 7059933 THRU 7086372 -
46933361 GUIDE, PUSH ROD
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UPGUIDE, PUSH ROD
UNITED STATES 4564002 AND UP
AUSTRALIA 8041800 AND UP
BELGIUM 9135225 AND UP
CANADA 7086373 AND UP -
4759721 ROD, PUSH-REVERSE LOCK(SHORT SHAFT)ROD, PUSH-REVERSE LOCK(SHORT SHAFT)
-
4759720 ROD, PUSH-REVERSE LOCK (LONG SHAFT)ROD, PUSH-REVERSE LOCK (LONG SHAFT)
-
4811-28770 NUT, JAM-PUSH RODNUT, JAM-PUSH ROD
-
4959722 ROD END, PUSH RODROD END, PUSH ROD
-
5017-72524 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
5118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
