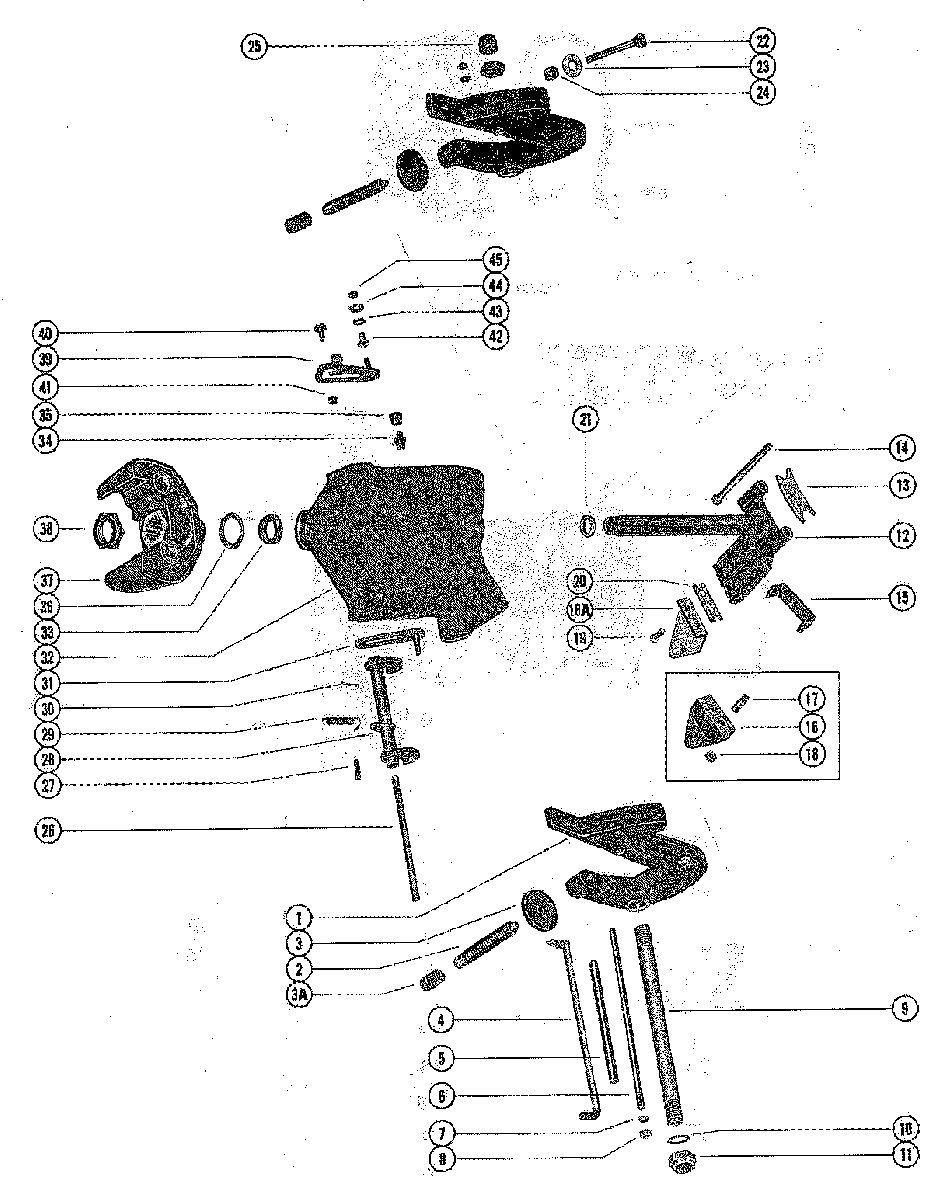

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 402 4117710 THRU 4860102

  • №
    Артикул
    Название
  • 1
    1427-5611A4 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    THUMB SCREW ASSEMBLY
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 3
    12-70988 WASHER, THUMB SCREW
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    WASHER, THUMB SCREW
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 1
    1427-5611A4 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    THUMB SCREW ASSEMBLY
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 3A
    75043 CAP, THUMB SCREW
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    CAP, THUMB SCREW
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 4
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
    4 970 ₽
  • 5
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
    0 ₽
  • 6
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
    0 ₽
  • 7
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
    140 ₽
  • 8
    11-28770 NUT,CLAMP BRACKET STUD
    NUT,CLAMP BRACKET STUD
    110 ₽
  • 9
    8M0041936 TUBE,TILT-CLAMP BRACKET TO SWIVEL BRACKET
    TUBE,TILT-CLAMP BRACKET TO SWIVEL BRACKET
    2 820 ₽
  • 10
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    0 ₽
  • 11
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
    330 ₽
  • 12
    74316A2 SWIVEL PIN ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    SWIVEL PIN ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 12
    74316A1 SWIVEL PIN ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    SWIVEL PIN ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 12
    74316A2 SWIVEL PIN ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    SWIVEL PIN ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 12
    74316A1 SWIVEL PIN ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    SWIVEL PIN ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 13
    30711 BUMPER,STEERING ARM
    BUMPER,STEERING ARM
    0 ₽
  • 14
    10-33986 SCREW, UPPER MOUNT TO STEERING ARM
    SCREW, UPPER MOUNT TO STEERING ARM
    0 ₽
  • 15
    62297 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
    0 ₽
  • 16
    76535T BRACKET, RIDE-GUIDE ATTACHING
    BRACKET, RIDE-GUIDE ATTACHING
    2 910 ₽
  • 17
    16-39781 STUD, BRACKET TO STEERING ARM(1 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    STUD, BRACKET TO STEERING ARM(1 1/4")
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    0 ₽
  • 18
    11-8M0042636 NUT, BRACKET STUD
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    NUT, BRACKET STUD
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    150 ₽
  • 16A
    76535T BRACKET,RIDE-GUIDE ATTACHING
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    BRACKET,RIDE-GUIDE ATTACHING
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    2 910 ₽
  • 19
    10-34352 SCREW,BRACKET TO STEERING ARM (7/8")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    SCREW,BRACKET TO STEERING ARM (7/8")
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    100 ₽
  • 20
    76533 STRAP, BRACKET SCREW
    STRAP, BRACKET SCREW
    180 ₽
  • 21
    12-52865 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
    260 ₽
  • 22
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM(LOWER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM(LOWER)
    0 ₽
  • 22
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM(UPPER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM(UPPER)
    500 ₽
  • 23
    12-46765 WASHER, CLAMP BRACKET BOLT(LOWER)
    WASHER, CLAMP BRACKET BOLT(LOWER)
    570 ₽
  • 23
    12-68300 WASHER,CLAMP BRACKET BOLT(UPPER)
    WASHER,CLAMP BRACKET BOLT(UPPER)
    0 ₽
  • 24
    11-82670912 NUT,CLAMP BRACKET BOLT
    NUT,CLAMP BRACKET BOLT
    410 ₽
  • 25
    53078 CAP, PLASTIC-TILT TUBE
    CAP, PLASTIC-TILT TUBE
    0 ₽
  • 26
    56349 SHAFT,REVERSE LOCK TO SWIVEL BRACKET
    SHAFT,REVERSE LOCK TO SWIVEL BRACKET
    0 ₽
  • 27
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
    0 ₽
  • 28
    87430 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
    0 ₽
  • 29
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
    0 ₽
  • 30
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
    280 ₽
  • 31
    47912A2 LEVER ASSEMBLY,TILT STOP-STARBOARD SIDE
    LEVER ASSEMBLY,TILT STOP-STARBOARD SIDE
    0 ₽
  • 32
    1481-7656A1 SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 32
    1480-7655A1 SWIVEL BRACKET ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    SWIVEL BRACKET ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    0 ₽
  • 32
    1481-7656A1 SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 32
    1480-7655A1 SWIVEL BRACKET ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    SWIVEL BRACKET ASSEMBLY(LONG SHAFT)
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    0 ₽
  • 33
    26-32911 OIL SEAL BRACKET
    OIL SEAL BRACKET
    560 ₽
  • 34
    22-69059 FITTING,GREASE-SWIVEL BRACKET
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    FITTING,GREASE-SWIVEL BRACKET
    UNITED STATES 4362214 AND BELOW
    AUSTRALIA 8036449 AND BELOW
    BELGIUM 9108563 AND BELOW
    CANADA 7070272 AND BELOW
    720 ₽
  • 34
    22-74036 FITTING GREASE-SWIVEL BRACKET
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    FITTING GREASE-SWIVEL BRACKET
    UNITED STATES 4362215 AND UP
    AUSTRALIA 8036450 AND UP
    BELGIUM 9108564 AND UP
    CANADA 7070273 AND UP
    340 ₽
  • 35
    19-77633Q LUBRICAP,SWIVEL BRACKET GREASE FITTING
    LUBRICAP,SWIVEL BRACKET GREASE FITTING
    450 ₽
  • 36
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE(.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE(.060)
    0 ₽
  • 36
    12-26837 WASHER,SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER,SWIVEL PIN TO BOTTOM YOKE (.065)
    0 ₽
  • 37
    77416T1 YOKE, BOTTOM
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    YOKE, BOTTOM
    UNITED STATES 4564001 AND BELOW
    AUSTRALIA 8041799AND BELOW
    BELGIUM 9135224 AND BELOW
    CANADA 7086372 AND BELOW
    4 320 ₽
  • 37
    77416T1 YOKE, BOTTOM
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    YOKE, BOTTOM
    UNITED STATES 4564002 AND UP
    AUSTRALIA 8041800 AND UP
    BELGIUM 9135225 AND UP
    CANADA 7086373 AND UP
    4 320 ₽
  • 38
    11-71956 NUT, RETAINING-SWIVEL PIN
    NUT, RETAINING-SWIVEL PIN
    0 ₽
  • 39
    47913A2 LEVER ASSEMBLY, TILT LOCK-PORT SIDE
    LEVER ASSEMBLY, TILT LOCK-PORT SIDE
    0 ₽
  • 40
    10-69087 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    190 ₽
  • 41
    11-29250 NUT, TILT LOCK AND STOP LEVER SCREW
    NUT, TILT LOCK AND STOP LEVER SCREW
    180 ₽
  • 42
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
    0 ₽
  • 43
    13-34632 WASHER,WAVE-TILT LOCK AND STOP LEVER
    WASHER,WAVE-TILT LOCK AND STOP LEVER
    140 ₽
  • 44
    12-56720 WASHER, TILT LOCK AND STOP LEVER
    WASHER, TILT LOCK AND STOP LEVER
    140 ₽
  • 45
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    180 ₽
