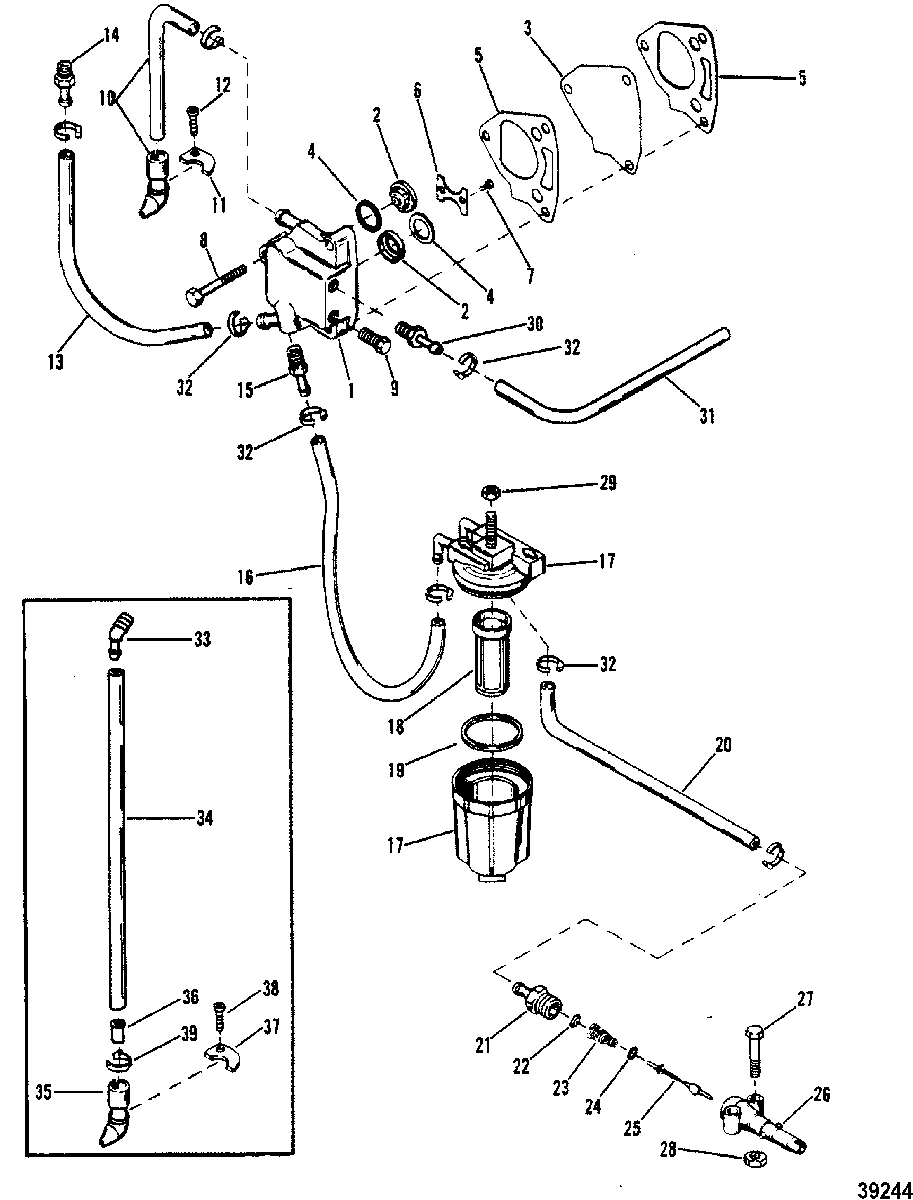

FUEL PUMP AND FUEL LINE для Mercury - 402, 40 (2 CYL.) 7144763 & Up

  • №
    Артикул
    Название
  • 1
    62973A4 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-8M0084275 CHECK VALVE ASSEMLBY
    CHECK VALVE ASSEMLBY
  • 3
    55278A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    NSS NOT SOLD SEPARATE, GASKET, CHECK VALVE
    NOT SOLD SEPARATE, GASKET, CHECK VALVE
  • 5
    NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP
    NOT SOLD SEPARATE, GASKET, FUEL PUMP
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-69093 SCREW, (.250-20 x 1.50), FUEL PUMP MOUNTING
    SCREW, (.250-20 x 1.50), FUEL PUMP MOUNTING
  • 9
    22-328022 PLUG, Pipe (.125-27), FUEL PUMP
    PLUG, Pipe (.125-27), FUEL PUMP
  • 10
    69791A2 HOSE AND NOZZLE, TELL TALE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
    HOSE AND NOZZLE, TELL TALE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
  • 11
    66849 CLAMP, HOSE AND NOZZLE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
    CLAMP, HOSE AND NOZZLE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
  • 12
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
    SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
  • 13
    32-8M0108355 HOSE, BLOCK TO PUMP (11")
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
    HOSE, BLOCK TO PUMP (11")
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
  • 14
    22-291112 CONNECTOR, BLOCK TO FUEL PUMP HOSE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
    CONNECTOR, BLOCK TO FUEL PUMP HOSE
    SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below
  • 14
    22-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    PLUG, Pipe (.125-27), CYLINDER BLOCK
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 15
    22-64705 FITTING, PUMP INLET
    FITTING, PUMP INLET
  • 16
    32-8M0108355 LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")
    LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")
  • 17
    35-889527A07 FILTER ASSEMBLY, Fuel
    FILTER ASSEMBLY, Fuel
  • 18
    35-87946Q04 FILTER ASSEMBLY
    FILTER ASSEMBLY
  • 19
    25-897536 SEAL, FUEL FILTER
    SEAL, FUEL FILTER
  • 20
    32-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")
    LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")
  • 21
    22-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
    FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
  • 22
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 23
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 24
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 25
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 26
    22833 ADAPTOR, CHECK UNIT (FUEL PUMP)
    ADAPTOR, CHECK UNIT (FUEL PUMP)
  • 27
    10-56500 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
  • 28
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 29
    11-400212 NUT, (M6) Stainless Steel, FUEL FILTER
    NUT, (M6) Stainless Steel, FUEL FILTER
  • 30
    22-64705 FITTING, PUMP OUTLET
    FITTING, PUMP OUTLET
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")
    LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")
  • 32
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 33
    22-782792 ELBOW, TELL TALE HOSE TO BLOCK
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    ELBOW, TELL TALE HOSE TO BLOCK
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 34
    32-7568058 HOSE, TELL TALE (6")
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    HOSE, TELL TALE (6")
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 35
    69791 NOZZLE, TELL TALE HOSE TO COWL
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    NOZZLE, TELL TALE HOSE TO COWL
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 36
    23-90882 SLEEVE, NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    SLEEVE, NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 37
    66849 CLAMP, NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    CLAMP, NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 38
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • 39
    56762 TIE STRAP, (4.00 Inches), NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
    TIE STRAP, (4.00 Inches), NOZZLE
    SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up
  • -
    27-78028A78 GASKET SET
    GASKET SET
