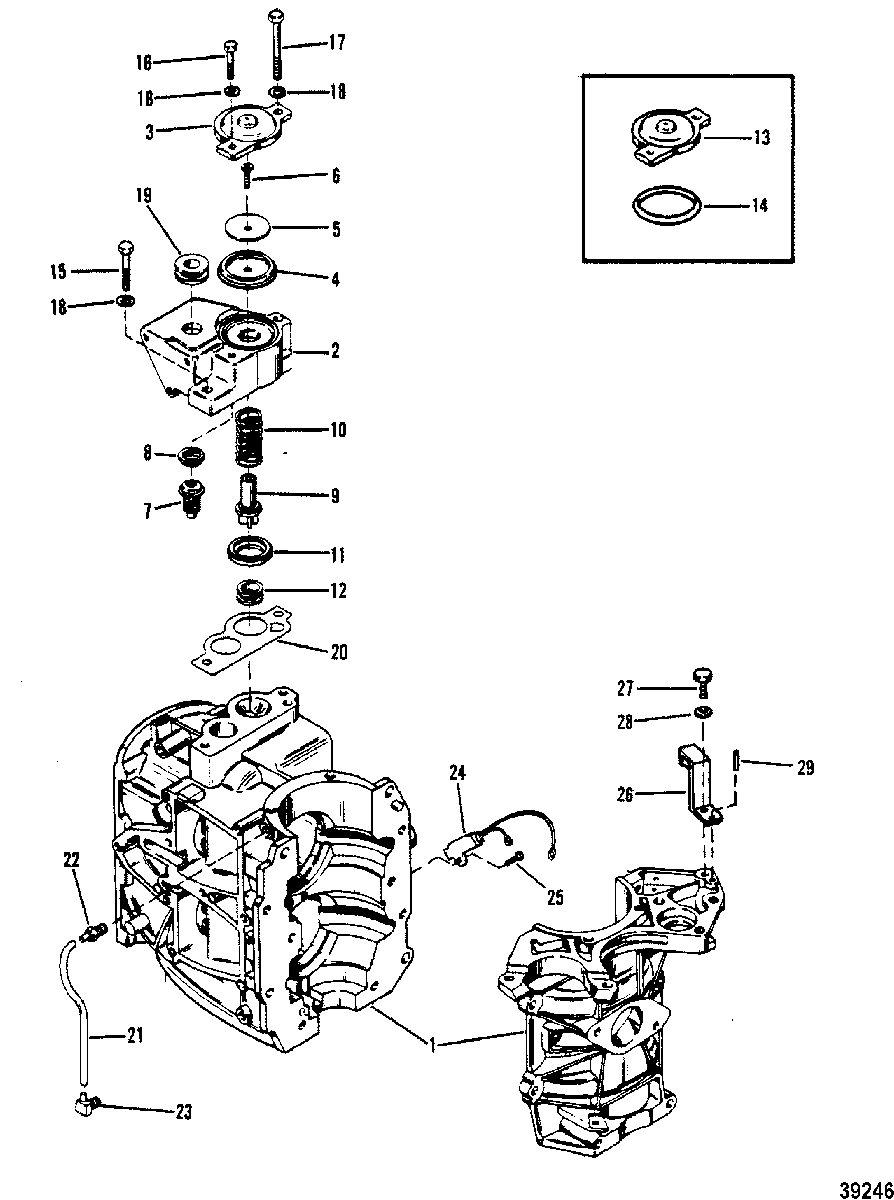

CYLINDER BLOCK AND THERMOSTAT для Mercury - 402, 40 (2 CYL.) 7144763 & Up

  • №
    Артикул
    Название
  • 1
    851-7940A6 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    66843T BRACKET, COIL MOUNTING
    BRACKET, COIL MOUNTING
  • 3
    99436A1 COVER, DIAPHRAGM
    WITH THERMOSTAT
    COVER, DIAPHRAGM
    WITH THERMOSTAT
  • 4
    648771 DIAPHRAGM, POPPET VALVE
    WITH THERMOSTAT
    DIAPHRAGM, POPPET VALVE
    WITH THERMOSTAT
  • 5
    12-76451 WASHER, DIAPHRAGM
    WITH THERMOSTAT
    WASHER, DIAPHRAGM
    WITH THERMOSTAT
  • 6
    10-69570 SCREW, (#10-16 x .750), WASHER AND DIAPHRAGM
    WITH THERMOSTAT
    SCREW, (#10-16 x .750), WASHER AND DIAPHRAGM
    WITH THERMOSTAT
  • 7
    75692 THERMOSTAT
    WITH THERMOSTAT
    THERMOSTAT
    WITH THERMOSTAT
  • 8
    27-62386001 GASKET, THERMOSTAT
    WITH THERMOSTAT
    GASKET, THERMOSTAT
    WITH THERMOSTAT
  • 9
    86596 POPPET VALVE, RELIEF VALVE
    WITH THERMOSTAT
    POPPET VALVE, RELIEF VALVE
    WITH THERMOSTAT
  • 10
    24-66852 SPRING, COMPRESSION
    WITH THERMOSTAT
    SPRING, COMPRESSION
    WITH THERMOSTAT
  • 11
    65848 CARRIER, POPPET VALVE
    WITH THERMOSTAT
    CARRIER, POPPET VALVE
    WITH THERMOSTAT
  • 12
    25-64872 GROMMET, POPPET VALVE
    WITH THERMOSTAT
    GROMMET, POPPET VALVE
    WITH THERMOSTAT
  • 13
    99436A1 COVER ASSEMBLY, COIL BRACKET
    W/O THERMOSTAT
    COVER ASSEMBLY, COIL BRACKET
    W/O THERMOSTAT
  • 14
    25-823683 O-RING, COVER
    W/O THERMOSTAT
    O-RING, COVER
    W/O THERMOSTAT
  • 15
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 16
    10-88760 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 17
    10-58414 SCREW (2-1/2")
    SCREW (2-1/2")
  • 18
    13-26993 LOCKWASHER, (.312), COIL MOUNTING BRACKET SCREW
    LOCKWASHER, (.312), COIL MOUNTING BRACKET SCREW
  • 19
    25-39597 GROMMET, COIL MOUNTING BRACKET
    GROMMET, COIL MOUNTING BRACKET
  • 20
    27-66847 GASKET, COIL MOUNTING BRACKET TO BLOCK
    GASKET, COIL MOUNTING BRACKET TO BLOCK
  • 21
    32-9938779 HOSE, CYLINDER BLEED (8")
    HOSE, CYLINDER BLEED (8")
  • 22
    21-42866 CHECK VALVE, CYLINDER BLEED (TOP)
    CHECK VALVE, CYLINDER BLEED (TOP)
  • 23
    21-42863 FITTING, CYLINDER BLEED (BOTTOM)
    FITTING, CYLINDER BLEED (BOTTOM)
  • 24
    58124A17 SWITCH ASSEMBLY, MERCURY
    SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below
    SWITCH ASSEMBLY, MERCURY
    SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below
  • 24
    58124A27 SWITCH ASSEMBLY, MERCURY
    SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up
    SWITCH ASSEMBLY, MERCURY
    SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up
  • 25
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 26
    76184 INDICATOR, TIMING
    ELECTRIC
    INDICATOR, TIMING
    ELECTRIC
  • 27
    10-25299 SCREW, (.312-18 x .75), INDICATOR ATTACHING
    ELECTRIC
    SCREW, (.312-18 x .75), INDICATOR ATTACHING
    ELECTRIC
  • 28
    12-20084 WASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
    ELECTRIC
    WASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
    ELECTRIC
  • 29
    17-29908 PIN, INDICATOR LOCATING
    ELECTRIC
    PIN, INDICATOR LOCATING
    ELECTRIC
  • -
    27-78028A78 GASKET SET
    GASKET SET
