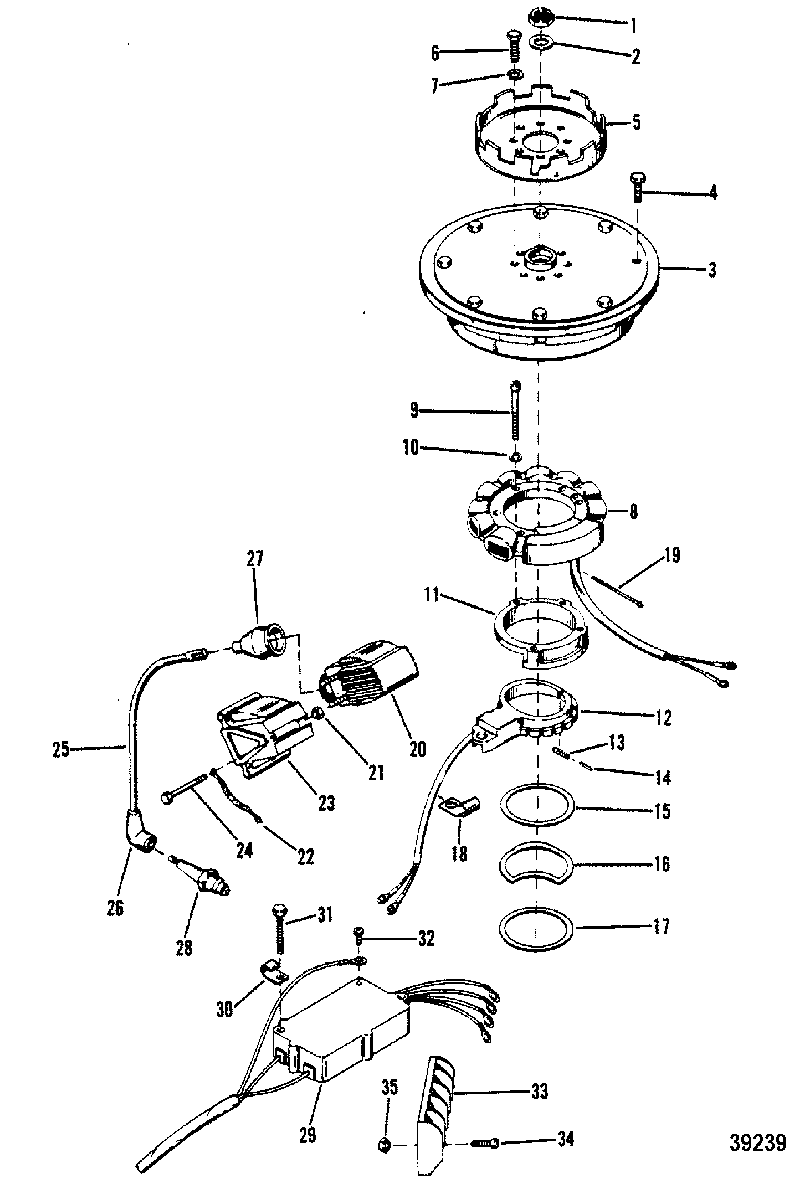

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402, 40 (2 CYL.) 7144763 & Up
-
№АртикулНазвание
-
111-22339 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
3242-4764A28 FLYWHEEL ASSEMBLY
(MANUAL)FLYWHEEL ASSEMBLY
(MANUAL) -
3242-4764A25 FLYWHEEL ASSEMBLY
(ELECTRIC)FLYWHEEL ASSEMBLY
(ELECTRIC) -
410-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
550-65213 RATCHET, FLYWHEEL
MANUALRATCHET, FLYWHEEL
MANUAL -
610-69088 SCREW
MANUALSCREW
MANUAL -
713-20202 LOCKWASHER, RATCHET SCREW
MANUALLOCKWASHER, RATCHET SCREW
MANUAL -
8398-5256 STATOR, IGNITION
MANUALSTATOR, IGNITION
MANUAL -
8398-5255 STATOR, ALTERNATOR
ELECTRICSTATOR, ALTERNATOR
ELECTRIC -
910-56787 SCREW, STATOR TO UPPER END CAP (2")SCREW, STATOR TO UPPER END CAP (2")
-
1013-26996 LOCKWASHER, (#10) Stainless Steel, STATOR SCREWLOCKWASHER, (#10) Stainless Steel, STATOR SCREW
-
1161830 SUPPORT, StatorSUPPORT, Stator
-
12338-4731A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1324-62095 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1417-62768 PIN, SPRING RETENTIONPIN, SPRING RETENTION
-
1512-62133 WASHER (UPPER)WASHER (UPPER)
-
1613-61983 WASHER, CENTER)WASHER, CENTER)
-
1712-61982 WASHER (LOWER)WASHER (LOWER)
-
1854-54457 J CLIPJ CLIP
-
1961990 TIE STRAP, (14.00 Inches), STATOR LEADSTIE STRAP, (14.00 Inches), STATOR LEADS
-
20339-5288T2 COIL ASSEMBLY, Ignition, COMPLETECOIL ASSEMBLY, Ignition, COMPLETE
-
2111-45076 NUT, (#10-32) Brass, COIL TERMINALSNUT, (#10-32) Brass, COIL TERMINALS
-
2284-60466A1 CABLE ASSEMBLY, Black (2.50 Inches)CABLE ASSEMBLY, Black (2.50 Inches)
-
2376254 COVER, IGNITION COILCOVER, IGNITION COIL
-
2410-69002 SCREW, (#10-24 x 1.750)SCREW, (#10-24 x 1.750)
-
2410-60194 SCREW (2-1/8")SCREW (2-1/8")
-
2584-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
-
2685-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
27332-2854T01 BOOT, LEAD TO IGNITION COILBOOT, LEAD TO IGNITION COIL
-
2833-14103550 SPARK PLUG (CHAMPION #QL-76V)
CANADA AND BELGIUMSPARK PLUG (CHAMPION #QL-76V)
CANADA AND BELGIUM -
2833-97180Q SPARK PLUG (AV#V-40FFM)SPARK PLUG (AV#V-40FFM)
-
29332-4911A8 SWITCHBOX ASSEMBLY, COMPLETESWITCHBOX ASSEMBLY, COMPLETE
-
3054-54457 J CLIP, SWITCH BOX LEADSJ CLIP, SWITCH BOX LEADS
-
3110-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
3210-45218 SCREW, (#10-32 x .380)SCREW, (#10-32 x .380)
-
3386-66754 TERMINAL BLOCK, SWITCH BOX LEADTERMINAL BLOCK, SWITCH BOX LEAD
-
3410-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK ATTACHINGSCREW, (.190-32 x .62), TERMINAL BLOCK ATTACHING
-
3511-8267086 NUT, (#10-32)NUT, (#10-32)
