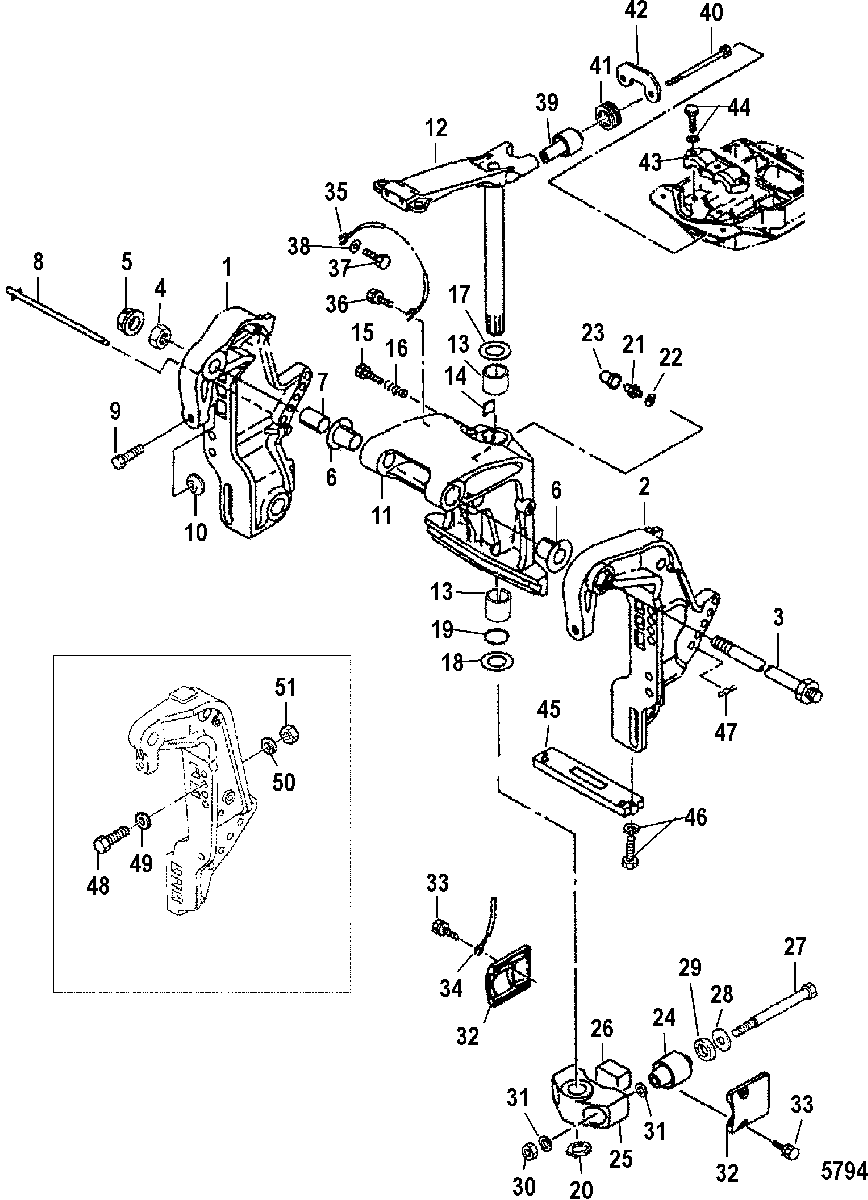

Transom and Swivel Brackets(Power Trim) для Mercury - 40 LIGHTNING XR (International) 0N000513 THRU 0N056164
-
№АртикулНазвание
-
13406-96224 BRACKET, Transom - Starboard
(Black)BRACKET, Transom - Starboard
(Black) -
196225 BRACKET, Transom - Starboard
(Gray)BRACKET, Transom - Starboard
(Gray) -
23406-96234 BRACKET, Transom - Port
(Black)BRACKET, Transom - Port
(Black) -
23406-96234 BRACKET, Transom - Port
(Gray)BRACKET, Transom - Port
(Gray) -
310-851866 BOLTBOLT
-
411-853722029 NUTNUT
-
511-85372214 CAP NUTCAP NUT
-
623-161764 BUSHINGBUSHING
-
723-8113681 BUSHINGBUSHING
-
8161982 THRUST RODTHRUST ROD
-
910-8M0060119 CLAMP SCREWCLAMP SCREW
-
1012-95379 PADPAD
-
113407-8130295 SWIVEL BRACKET
(Black)SWIVEL BRACKET
(Black) -
113407-8130296 SWIVEL BRACKET
(Gray)SWIVEL BRACKET
(Gray) -
128M0075036 SWIVEL TUBE
(Black)SWIVEL TUBE
(Black) -
128M0075036 SWIVEL TUBE
(Gray)SWIVEL TUBE
(Gray) -
1323-8537436 BUSHINGBUSHING
-
14162052 FRICTION PLATEFRICTION PLATE
-
1510-8230423 BOLTBOLT
-
1624-953831 SPRINGSPRING
-
17162041 THRUST PLATE, UpperTHRUST PLATE, Upper
-
1816204004 THRUST PLATE, LowerTHRUST PLATE, Lower
-
1925-16109003 O-RINGO-RING
-
2053-8537142 C-RINGC-RING
-
2122-824969 FITTING, GreaseFITTING, Grease
-
2212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
23808599 CAPCAP
-
248M0075315 MOUNTMOUNT
-
258M0064214 BRACKET
(Black)BRACKET
(Black) -
258M0064214 YOKE, Bottom
(Gray)YOKE, Bottom
(Gray) -
268537732 RUBBER DAMPERRUBBER DAMPER
-
2710-851866012 BOLTBOLT
-
2812-953928 WASHERWASHER
-
2912-851867 WASHERWASHER
-
3011-85372218 NUTNUT
-
3112-879194343 WASHERWASHER
-
32851869 COVER
(Black)COVER
(Black) -
32851869 COVER
(Gray)COVER
(Gray) -
3310-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3484-8537405 GROUND WIREGROUND WIRE
-
3584-898101089 GROUND WIREGROUND WIRE
-
3610-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
3710-16705 BOLT (Power Trim)BOLT (Power Trim)
-
3710-8230427 BOLT, (M6 x 12) (Handle)BOLT, (M6 x 12) (Handle)
-
3812-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
398M0079616 RUBBERRUBBER
-
4010-8M0115483 BOLTBOLT
-
4125-851870 GROMMETGROMMET
-
42851871 LOCKING PLATE, UpperLOCKING PLATE, Upper
-
43851872 CAP
(Black)CAP
(Black) -
43851872 COVER
(Gray)COVER
(Gray) -
4410-82304215 BOLTBOLT
-
458239121 ANODEANODE
-
4610-162232 BOLTBOLT
-
4718-8150266 COTTER PINCOTTER PIN
-
4810-802619 BOLTBOLT
-
4912-953928 WASHERWASHER
-
5012-168262 WASHERWASHER
-
5111-802620 NUTNUT
