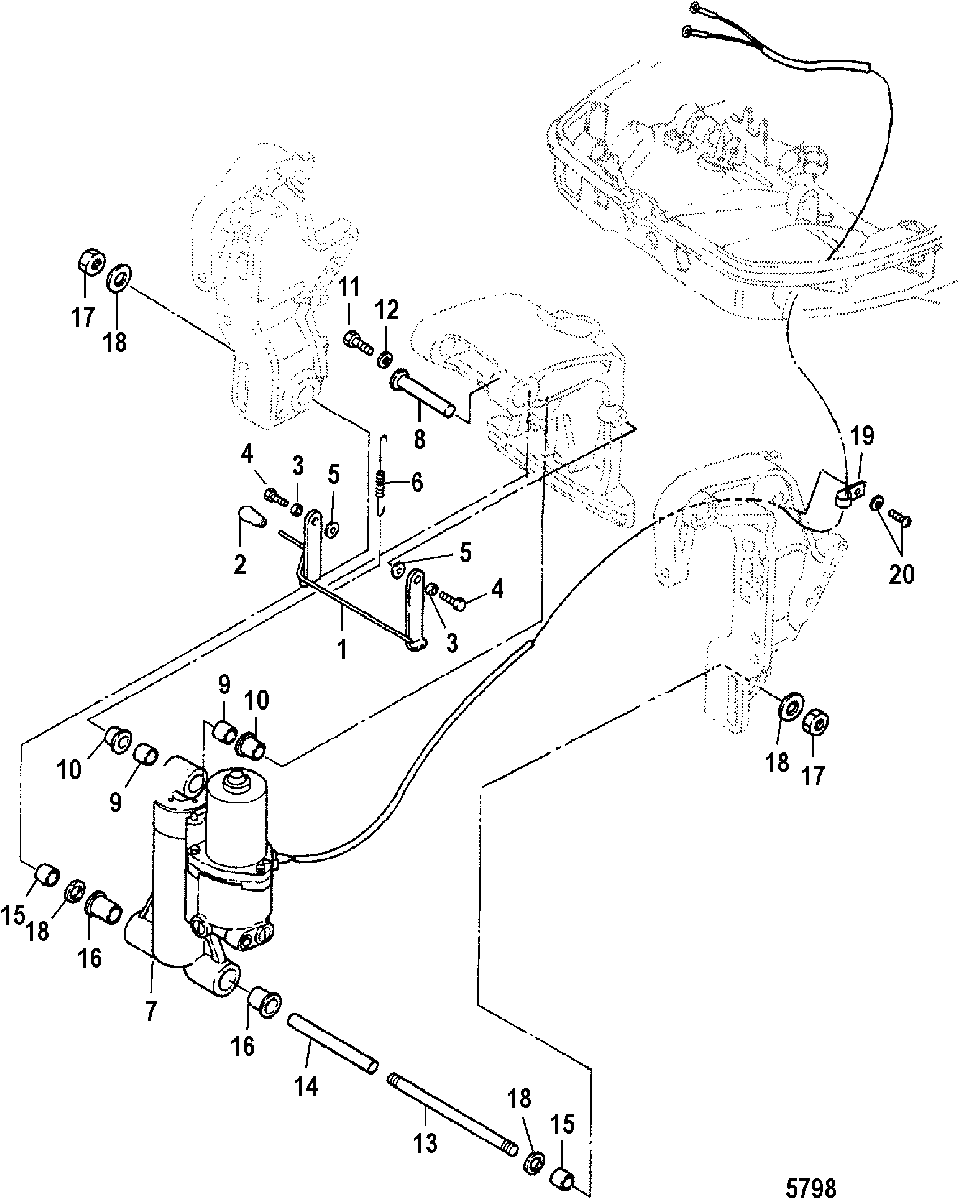

Power Trim для Mercury - 40 LIGHTNING XR (International) 0N000513 THRU 0N056164
-
№АртикулНазвание
-
18251123 STOP, Tilt
(Black)STOP, Tilt
(Black) -
18251123 STOP, Tilt
(Gray)STOP, Tilt
(Gray) -
28M0045584 GRIPGRIP
-
323-9528616 COLLARCOLLAR
-
410-8M0062251 BOLTBOLT
-
512-168261 WASHERWASHER
-
624-953837 SPRINGSPRING
-
7851873A1 POWER TRIM ASSEMBLY
(See Breakdown on Power Trim Components)POWER TRIM ASSEMBLY
(See Breakdown on Power Trim Components) -
817-8M0115482 PIN, Upper CylinderPIN, Upper Cylinder
-
923-8113682 SLEEVESLEEVE
-
1023-161765 BUSHINGBUSHING
-
1110-16223 BOLT, (M6 x 14)BOLT, (M6 x 14)
-
1212-898101937 WASHERWASHER
-
1317-8518741 PIN, Lower CylinderPIN, Lower Cylinder
-
1423-9528617 COLLARCOLLAR
-
1523-8113682 SLEEVESLEEVE
-
1623-16176011 BUSHINGBUSHING
-
1711-85372219 NUTNUT
-
1812-8M0060184 WASHERWASHER
-
1954-17169 CLAMPCLAMP
-
2010-8555445 SCREWSCREW
