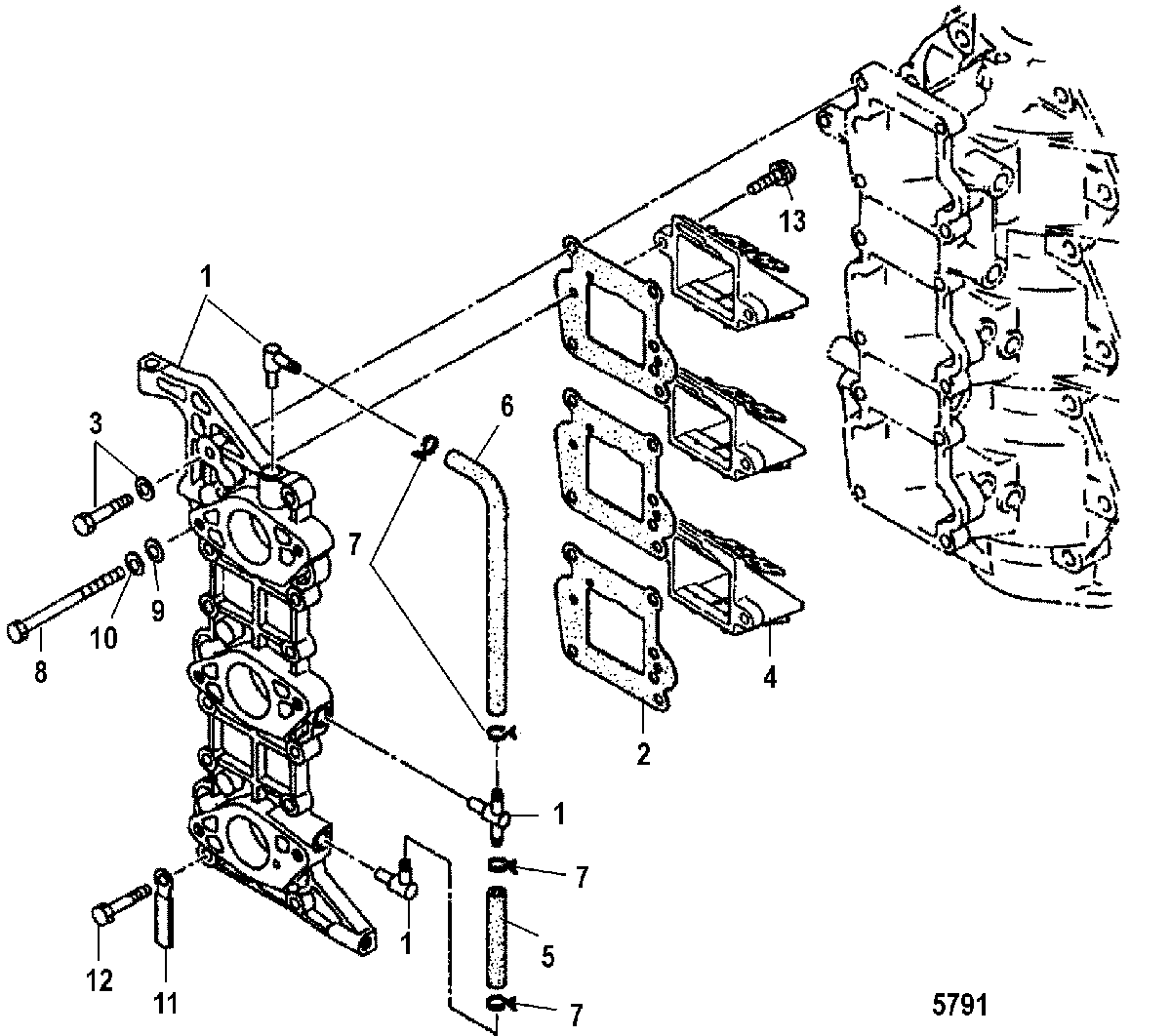

Inlet Manifold and Reed Block для Mercury - 40 LIGHTNING XR (International) 0N000513 THRU 0N056164

  • №
    Артикул
    Название
  • 1
    853717A2 MANIFOLD ASSEMBLY, Inlet
    (Lightning)
    MANIFOLD ASSEMBLY, Inlet
    (Lightning)
  • 1
    853717A3 MANIFOLD ASSEMBLY, Inlet
    (Lightning XR/50)
    MANIFOLD ASSEMBLY, Inlet
    (Lightning XR/50)
  • 2
    27-8M0047033 GASKET
    GASKET
  • 3
    10-168286 BOLT
    BOLT
  • 4
    8537191 REED BLOCK
    (Lightning)
    REED BLOCK
    (Lightning)
  • 4
    8537192 REED BLOCK
    (Lightning XR/50)
    REED BLOCK
    (Lightning XR/50)
  • 5
    32-8M0057113 LINE, Fuel (1000 mm)
    LINE, Fuel (1000 mm)
  • 6
    32-8M0057113 LINE, Fuel (1000 mm)
    LINE, Fuel (1000 mm)
  • 7
    54-95395 CLIP, Stainless Steel
    CLIP, Stainless Steel
  • 8
    10-855809003 BOLT, (M6 x 85)
    BOLT, (M6 x 85)
  • 9
    12-809931044 WASHER
    WASHER
  • 10
    13-16818 LOCKWASHER
    LOCKWASHER
  • 11
    54-813275 CLAMP
    CLAMP
  • 12
    10-95314 SCREW
    SCREW
  • 13
    10-8230317 SCREW
    SCREW
  • -
    8M0146290 POWERHEAD ASSEMBLY
    (Lightning)
    POWERHEAD ASSEMBLY
    (Lightning)
  • -
    37-8M0069514 POWERHEAD ASSEMBLY
    (Lightning XR/50)
    POWERHEAD ASSEMBLY
    (Lightning XR/50)
  • -
    27-8M0081614 GASKET SET, Powerhead
    SN# 0N016161 & Below
    GASKET SET, Powerhead
    SN# 0N016161 & Below
  • -
    27-8M0081614 GASKET SET, Powerhead
    SN# 0N016162 & Up
    GASKET SET, Powerhead
    SN# 0N016162 & Up
