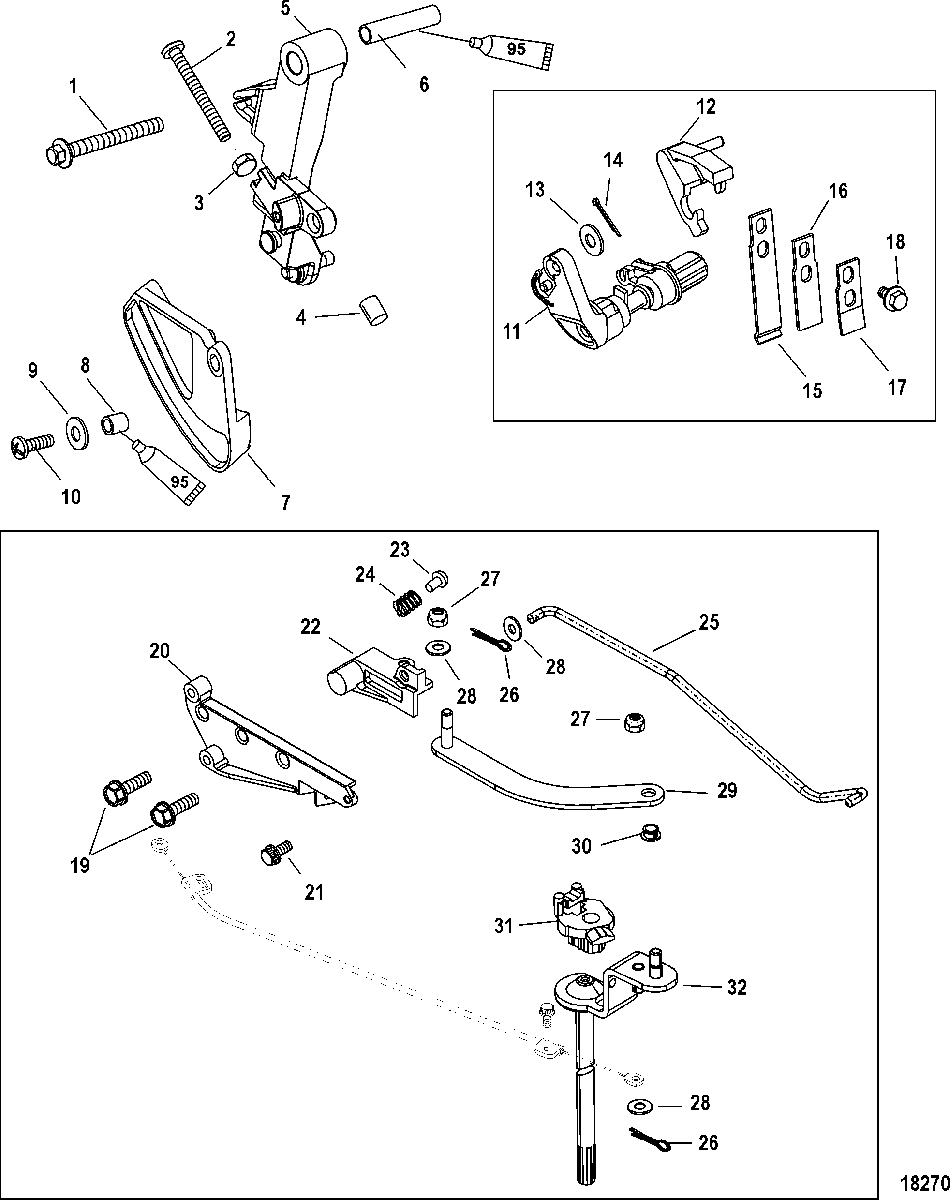

Linkage для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 2
    10-8147763 SCREW, (M6 x 60)
    SCREW, (M6 x 60)
  • 3
    11-401196 NUT, (M6)
    NUT, (M6)
  • 4
    42942 CAP
    CAP
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 6
    23-825078 BUSHING
    BUSHING
  • 7
    8535853 CAM, Throttle
    CAM, Throttle
  • 8
    23-309772 SPACER
    SPACER
  • 9
    12-4002314 WASHER
    WASHER
  • 10
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 11
    826588A4 SHIFT SHAFT ASSEMBLY, Horizontal (Short)
    SHIFT SHAFT ASSEMBLY, Horizontal (Short)
  • 12
    8277071 RETAINER (Short)
    RETAINER (Short)
  • 13
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel (Short)
    WASHER, (.281 x .500 x .060) Stainless Steel (Short)
  • 14
    18-210711 COTTER PIN (Short)
    COTTER PIN (Short)
  • 15
    24-826077 SPRING, Detent (Short)
    SPRING, Detent (Short)
  • 16
    24-824993 SPRING, Backing (Short)
    SPRING, Backing (Short)
  • 17
    824994 SPRING, Plate (Short)
    SPRING, Plate (Short)
  • 18
    10-40011107 SCREW, (M5 x 16) Stainless Steel (Short)
    SCREW, (M5 x 16) Stainless Steel (Short)
  • 19
    10-8248326 SCREW, (M6 x 25 MM) (Long)
    SCREW, (M6 x 25 MM) (Long)
  • 20
    858245 SHIFT GUIDE (Long)
    SHIFT GUIDE (Long)
  • 21
    10-82239312 SCREW, (M5 x 12) (Long)
    SCREW, (M5 x 12) (Long)
  • 22
    858246 SHIFT SLIDE (Long)
    SHIFT SLIDE (Long)
  • 23
    8M0091388 DETENT/SPRING KIT (Long)
    DETENT/SPRING KIT (Long)
  • 24
    NSS NOT SOLD SEPARATE, Spring (Long)
    NOT SOLD SEPARATE, Spring (Long)
  • 25
    858247 SHIFT ROD (Long)
    SHIFT ROD (Long)
  • 26
    18-210711 COTTER PIN (Long)
    COTTER PIN (Long)
  • 27
    11-401386 NUT, (M6) Stainless Steel (Long)
    NUT, (M6) Stainless Steel (Long)
  • 28
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel (Long)
    WASHER, (.281 x .500 x .060) Stainless Steel (Long)
  • 29
    858248 SHIFT LINK (Long)
    SHIFT LINK (Long)
  • 30
    23-48475 BUSHING (Long)
    BUSHING (Long)
  • 31
    23-850165 BUSHING (Long)
    BUSHING (Long)
  • 32
    850166T2 LEVER ASSEMBLY, Shift Shaft
    LEVER ASSEMBLY, Shift Shaft
