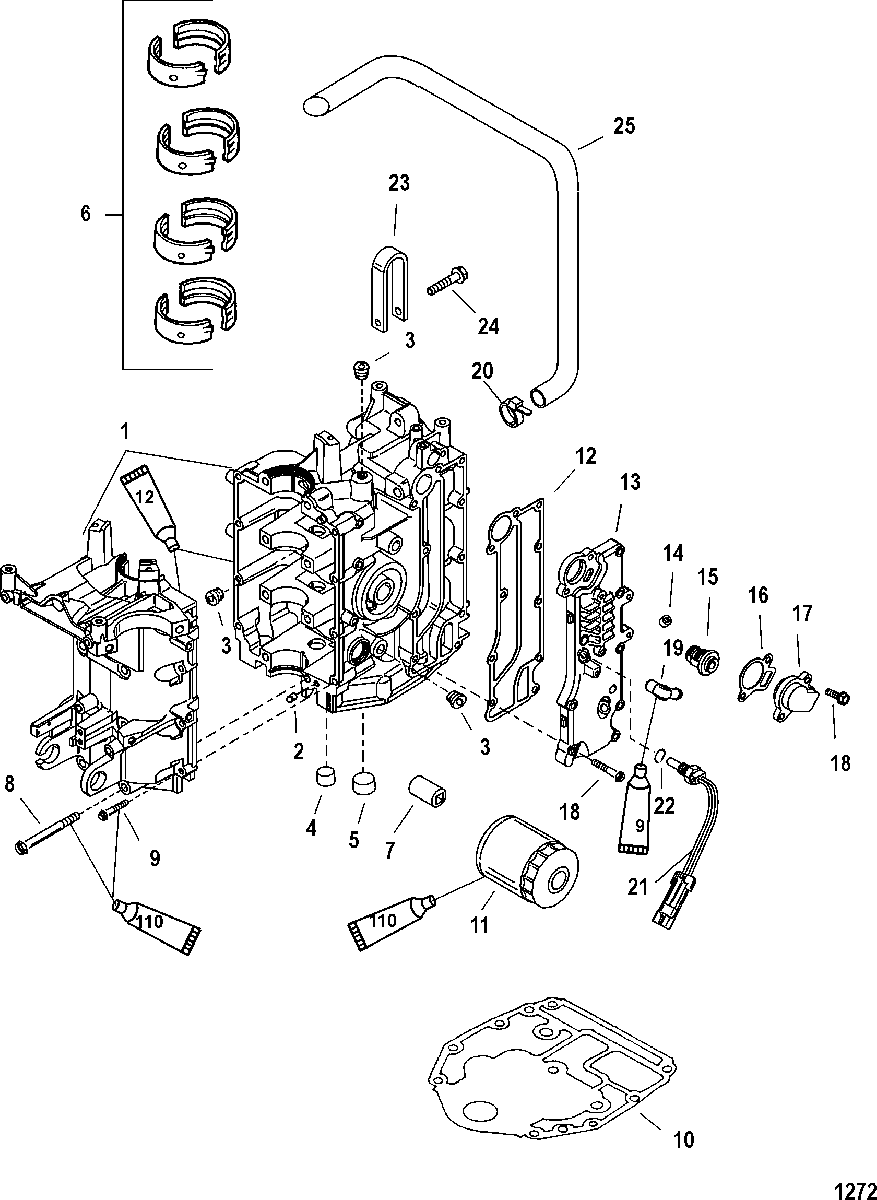

Cylinder Block для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    803-850082T34 CYLINDER BLOCK
    (Short Shaft)
    CYLINDER BLOCK
    (Short Shaft)
  • 1
    800-893500T02 CYLINDER BLOCK
    (Long Shaft)
    CYLINDER BLOCK
    (Long Shaft)
  • 2
    17-825010 PIN, Dowel
    PIN, Dowel
  • 3
    22-479452 PLUG
    PLUG
  • 4
    22-384073 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 5
    22-416223 PLUG, Pipe (.750-14)
    PLUG, Pipe (.750-14)
  • 6
    23-893631 BEARING, Main - Brown
    (Brown)
    BEARING, Main - Brown
    (Brown)
  • 6
    23-893631001 BEARING, Main - Black
    (Black)
    BEARING, Main - Black
    (Black)
  • 6
    23-893631002 BEARING, Main - Blue
    (Blue)
    BEARING, Main - Blue
    (Blue)
  • 7
    822625 NIPPLE, (M20)
    NIPPLE, (M20)
  • 8
    10-82506182 SCREW, (M8 x 82)
    SCREW, (M8 x 82)
  • 9
    10-88348935 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 10
    27-892319001 GASKET
    GASKET
  • 11
    35-8M0065104 FILTER, Oil
    (Mercury Branded)
    FILTER, Oil
    (Mercury Branded)
  • 11
    35-8M0065103 FILTER, Oil
    (Quicksilver Branded)
    FILTER, Oil
    (Quicksilver Branded)
  • 12
    27-8M4500244 GASKET
    GASKET
  • 13
    8M0118193 COVER, Exhaust
    COVER, Exhaust
  • 14
    22-479452 PLUG
    PLUG
  • 15
    825212A1 THERMOSTAT
    THERMOSTAT
  • 16
    27-824853 GASKET
    GASKET
  • 17
    8M0008243 COVER
    COVER
  • 18
    10-88348935 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 19
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    889575 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 22
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 23
    893697 LIFTING EYE
    LIFTING EYE
  • 24
    10-857139 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 25
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)- To Fitting in Adaptor Plate
    HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)- To Fitting in Adaptor Plate
  • -
    27-825231A02 GASKET SET, Engine
    GASKET SET, Engine
  • -
    61-803017T01 POWERHEAD ASSEMBLY
    (Short)
    POWERHEAD ASSEMBLY
    (Short)
  • -
    61-803016T06 POWERHEAD ASSEMBLY
    (Long)
    POWERHEAD ASSEMBLY
    (Long)
