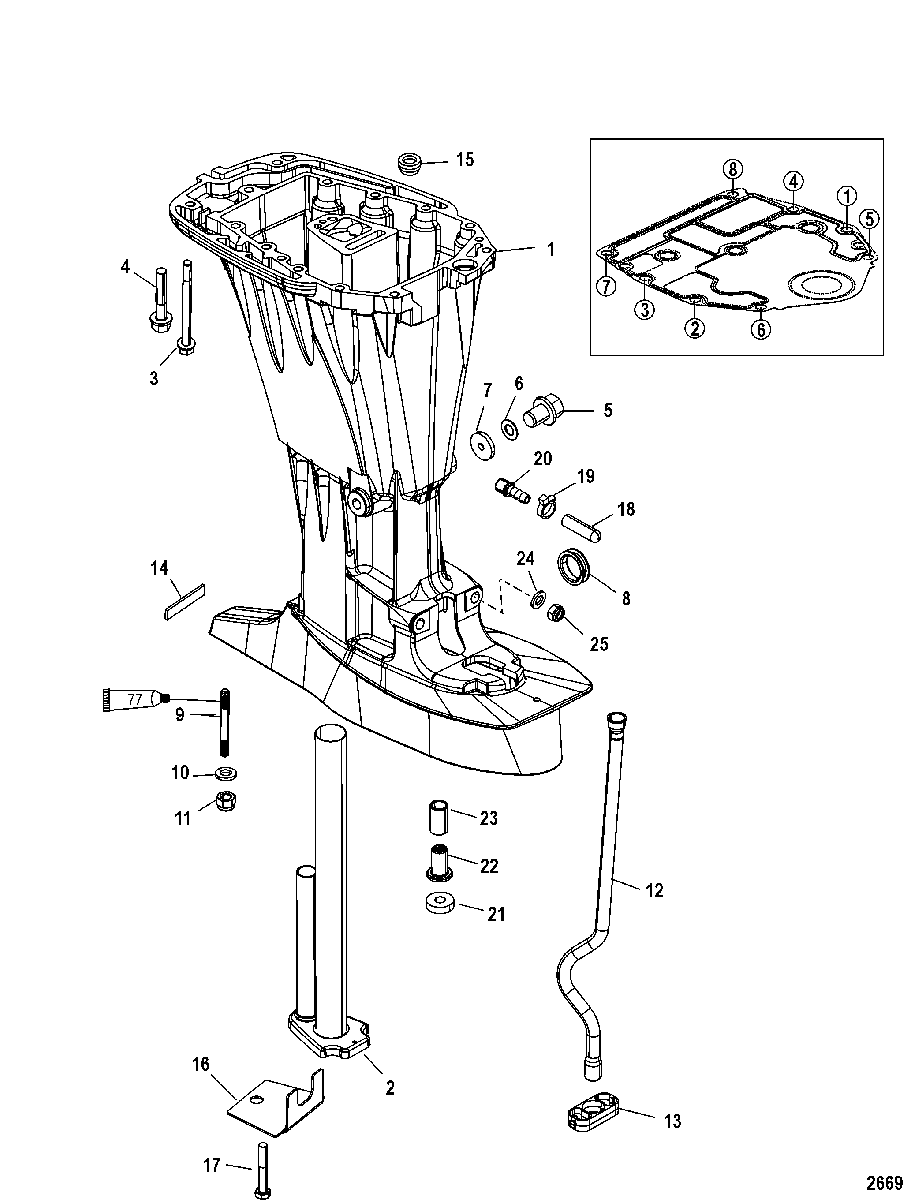

Driveshaft Housing(Long) для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    1500-8M0118178 HOUSING, Driveshaft
    SN# 1C046581 & Below
    HOUSING, Driveshaft
    SN# 1C046581 & Below
  • 1
    1500-8M0118178 HOUSING, Driveshaft
    SN# 0P502069 & Below
    HOUSING, Driveshaft
    SN# 0P502069 & Below
  • 1
    1500-8M0118178 HOUSING, Driveshaft - Long
    SN# 1C046582 & Up
    HOUSING, Driveshaft - Long
    SN# 1C046582 & Up
  • 1
    1500-8M0118178 HOUSING, Driveshaft - Long
    SN# 0P502070 & Up
    HOUSING, Driveshaft - Long
    SN# 0P502070 & Up
  • 2
    825220T06 PIPE, Exhaust
    PIPE, Exhaust
  • 3
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 4
    10-88960845 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 5
    8288181 PLUG, Drain
    PLUG, Drain
  • 6
    27-828816 GASKET
    GASKET
  • 7
    826276 BUMPER
    BUMPER
  • 8
    25-8M4504002 GROMMET
    GROMMET
  • 9
    16-823984 STUD, (M10 x 50)
    STUD, (M10 x 50)
  • 10
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 11
    11-40140 NUT, (M10)
    NUT, (M10)
  • 12
    32-897971A01 TUBE, Water
    TUBE, Water
  • 13
    54-828529 GUIDE
    GUIDE
  • 14
    8M0043364 BUMPER
    BUMPER
  • 15
    42941001 SEAL, Water Tube
    SEAL, Water Tube
  • 16
    8M4503628 PLATE, Driveshaft Housing
    PLATE, Driveshaft Housing
  • 17
    10-1993325 SCREW, (M10 x 25 MM)
    SCREW, (M10 x 25 MM)
  • 18
    19-892286 CAP
    CAP
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    22-13035002 FITTING
    FITTING
  • 21
    23-813745 SPACER
    SPACER
  • 22
    43585 COUPLING
    COUPLING
  • 23
    23-855623 BUSHING
    BUSHING
  • 24
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 25
    11-40140 NUT, (M10)
    NUT, (M10)
