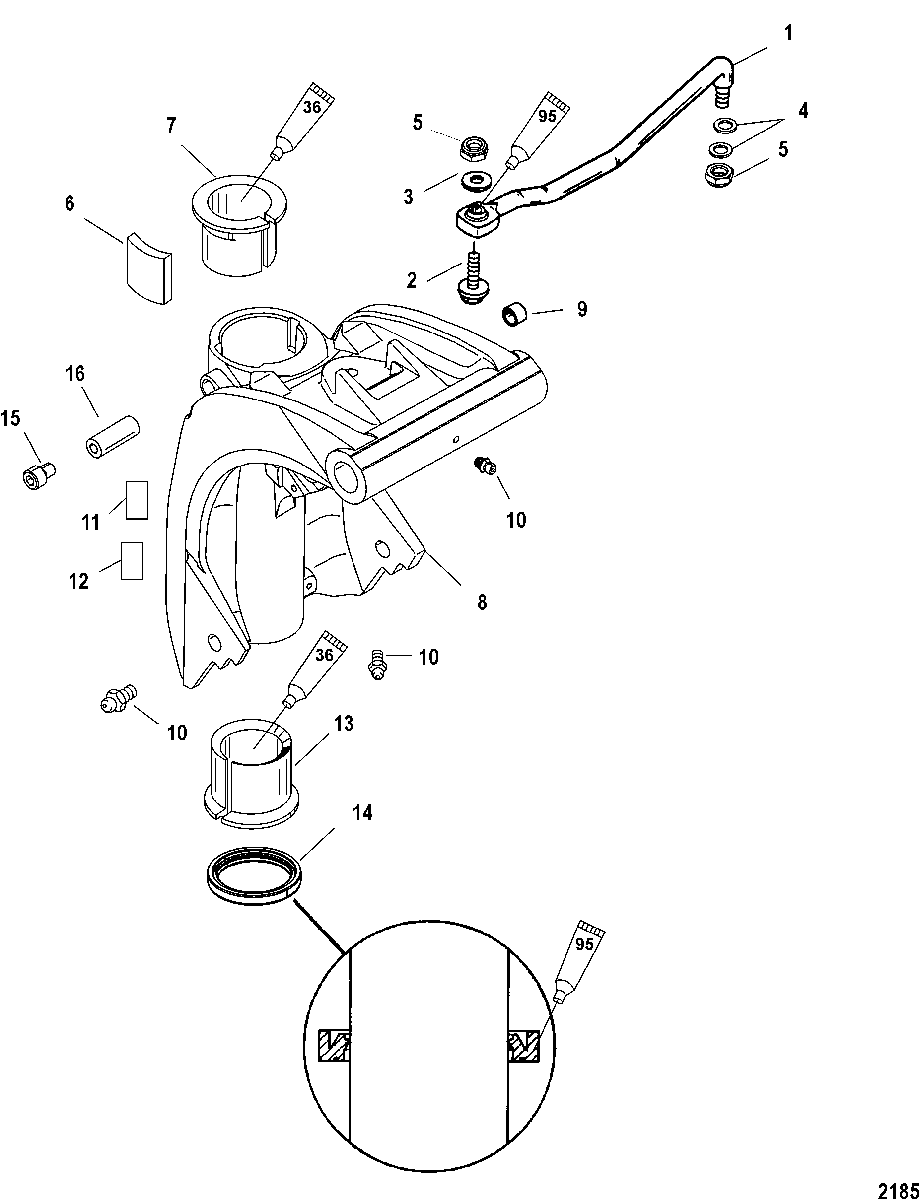

Swivel Bracket для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    19608A14 ATTACHING KIT, Engine Steering
    (ELECTRIC NON HANDLE)
    ATTACHING KIT, Engine Steering
    (ELECTRIC NON HANDLE)
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    (ELECTRIC NON HANDLE)
    SCREW, (.375-24 x 1.500)
    (ELECTRIC NON HANDLE)
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    (ELECTRIC NON HANDLE)
    WASHER, (.390 x .546 x .12)
    (ELECTRIC NON HANDLE)
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    (ELECTRIC NON HANDLE)
    WASHER, (.390 x .625 x .062) Stainless Steel
    (ELECTRIC NON HANDLE)
  • 5
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (ELECTRIC NON HANDLE)
    NUT, (.375-24) Stainless Steel
    (ELECTRIC NON HANDLE)
  • 6
    822397 PUCK
    (ELECTRIC NON HANDLE)
    PUCK
    (ELECTRIC NON HANDLE)
  • 7
    23-8217711 BUSHING
    BUSHING
  • 8
    1401-850066T01 SWIVEL BRACKET
    SWIVEL BRACKET
  • 9
    23-19606 BEARING
    BEARING
  • 10
    22-74036 FITTING, Grease
    (QTY. OF 3 REQUIRED ON HANDLE VERSIONS)
    FITTING, Grease
    (QTY. OF 3 REQUIRED ON HANDLE VERSIONS)
  • 11
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
  • 12
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 13
    23-821777 BUSHING (LOWER)
    BUSHING (LOWER)
  • 14
    26-822404 SEAL
    SEAL
  • 15
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
    SCREW, (M8 x 10) Stainless Steel
    (HANDLE)
  • 15
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    (ELECTRIC)
    SCREW, (M8 x 25) Stainless Steel
    (ELECTRIC)
  • 16
    8282451 SEAL
    (ELECTRIC)
    SEAL
    (ELECTRIC)
