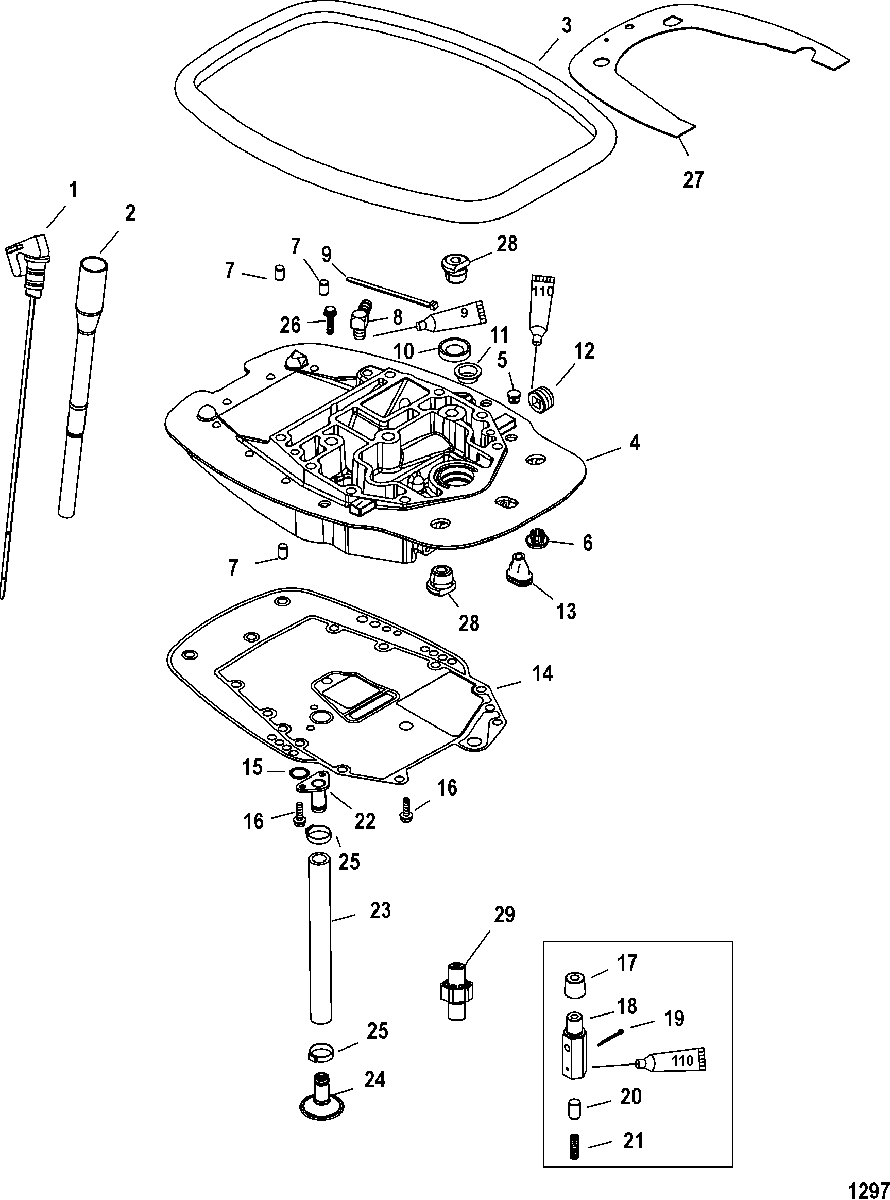

Adaptor Plate для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    825990 DIPSTICK
    DIPSTICK
  • 2
    825989003 DIPSTICK TUBE
    SN# USA-0T979999/BEL-0P325499 and below & Below
    DIPSTICK TUBE
    SN# USA-0T979999/BEL-0P325499 and below & Below
  • 2
    825989003 DIPSTICK TUBE
    SN# USA-0T980000/BEL-0P325500 and up & Up
    DIPSTICK TUBE
    SN# USA-0T980000/BEL-0P325500 and up & Up
  • 3
    8560552 SEAL
    SEAL
  • 4
    825228A17 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 5
    19-822464 PLUG
    PLUG
  • 6
    19-48323 PLUG
    PLUG
  • 7
    17-23784 PIN, Dowel
    PIN, Dowel
  • 8
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    26-828932 SEAL, Oil
    (NON-BIGFOOT)
    SEAL, Oil
    (NON-BIGFOOT)
  • 10
    26-16977 SEAL, Oil
    (BIGFOOT)
    SEAL, Oil
    (BIGFOOT)
  • 11
    23-856743 BUSHING
    (NON-BIGFOOT)
    BUSHING
    (NON-BIGFOOT)
  • 12
    22-889567 PLUG, (.500-14)
    PLUG, (.500-14)
  • 13
    25-822408001 GROMMET
    (NON-BIGFOOT) SN# USA-0T979999/BEL-0P325499 and below & Below
    GROMMET
    (NON-BIGFOOT) SN# USA-0T979999/BEL-0P325499 and below & Below
  • 13
    25-822408001 GROMMET
    (NON-BIGFOOT) SN# USA-0T980000/BEL-0P325500 and up & Up
    GROMMET
    (NON-BIGFOOT) SN# USA-0T980000/BEL-0P325500 and up & Up
  • 14
    27-892320001 GASKET
    SN# USA-0T979999/BEL-0P325499 and below & Below
    GASKET
    SN# USA-0T979999/BEL-0P325499 and below & Below
  • 14
    27-892320001 GASKET
    SN# USA-0T980000/BEL-0P325500 and up & Up
    GASKET
    SN# USA-0T980000/BEL-0P325500 and up & Up
  • 15
    25-845746 O-RING
    O-RING
  • 16
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 17
    856592 DEFLECTOR, Oil
    SN# 0T459948 and below & Below
    DEFLECTOR, Oil
    SN# 0T459948 and below & Below
  • 18
    881872A1 BODY ASSEMBLY, Oil Pressure Relief
    SN# 0T459948 and below & Below
    BODY ASSEMBLY, Oil Pressure Relief
    SN# 0T459948 and below & Below
  • 19
    18-45882 COTTER PIN
    SN# 0T459948 and below & Below
    COTTER PIN
    SN# 0T459948 and below & Below
  • 20
    8252151 PLUNGER
    SN# 0T459948 and below & Below
    PLUNGER
    SN# 0T459948 and below & Below
  • 21
    24-825216 SPRING
    SN# 0T459948 and below & Below
    SPRING
    SN# 0T459948 and below & Below
  • 22
    893765 PLATE, Oil Pickup-Top
    PLATE, Oil Pickup-Top
  • 23
    32-854793 HOSE, Oil Pickup
    HOSE, Oil Pickup
  • 24
    893700 BAFFLE
    BAFFLE
  • 25
    54-855228 CLAMP
    CLAMP
  • 26
    10-4007455 SCREW, (M6 x 55)
    SCREW, (M6 x 55)
  • 27
    8289151 HEAT SHIELD
    HEAT SHIELD
  • 28
    25-19564001 GROMMET
    (NON-POWER TRIM)
    GROMMET
    (NON-POWER TRIM)
  • 28
    25-19565002 GROMMET
    (SPLIT- POWER TRIM)
    GROMMET
    (SPLIT- POWER TRIM)
  • 29
    881872A1 BODY, Oil Pressure Relief
    SN# OT459959 and up & Up
    BODY, Oil Pressure Relief
    SN# OT459959 and up & Up
