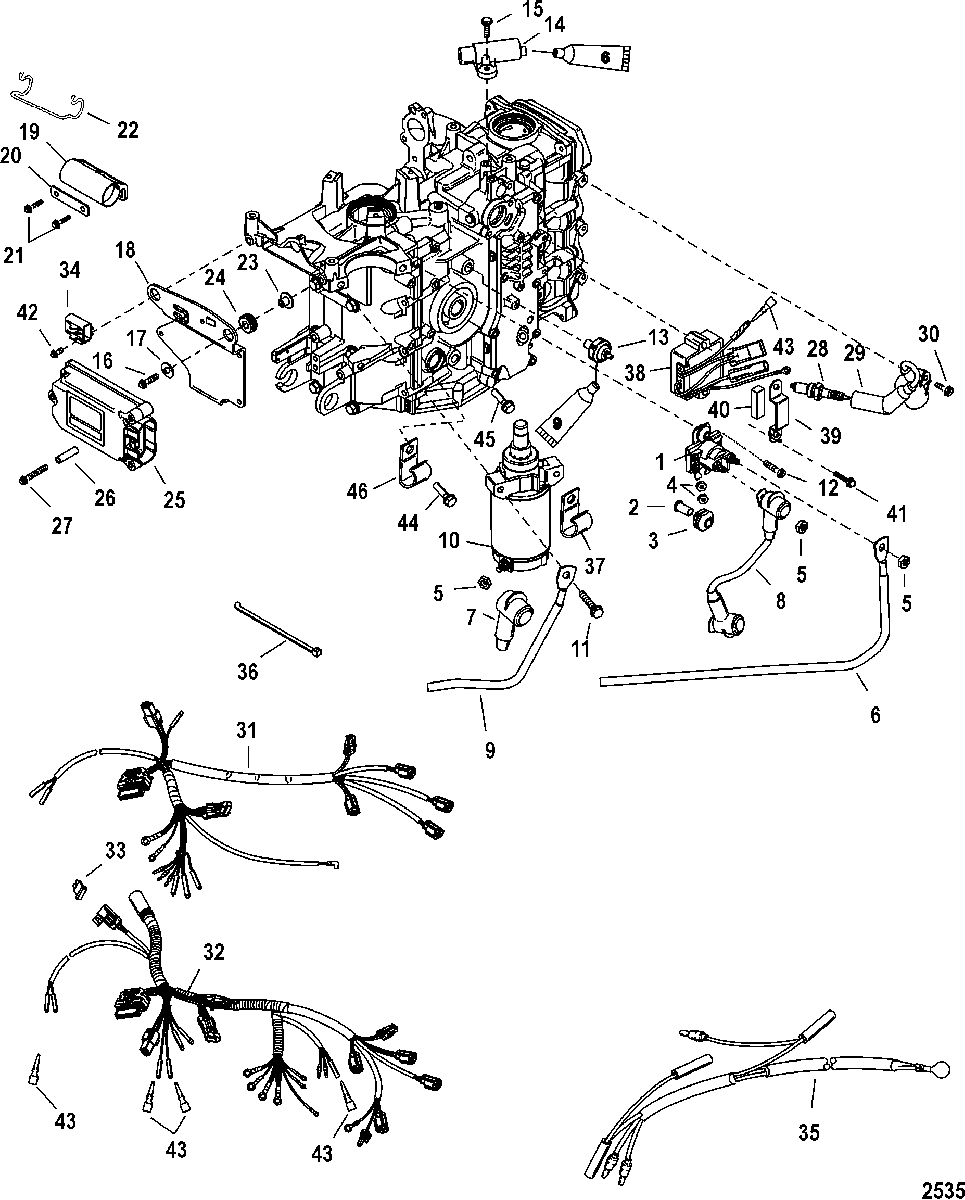

Electrical Components для Mercury - 40 CARB (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

№

Артикул

Название
1

89-850187T1 SOLENOID ASSEMBLY
(ELECTRIC)

SOLENOID ASSEMBLY
(ELECTRIC)
2

23-818968 BUSHING
(ELECTRIC)

BUSHING
(ELECTRIC)
3

25-818967 GROMMET
(ELECTRIC)

GROMMET
(ELECTRIC)
4

11-26419 NUT, (#8-32) Brass
(ELECTRIC)

NUT, (#8-32) Brass
(ELECTRIC)
5

11-94330 NUT, (.250-20) Brass
(ELECTRIC)

NUT, (.250-20) Brass
(ELECTRIC)
6

84-88439A9 CABLE ASSEMBLY, Battery - Positive
(ELECTRIC)

CABLE ASSEMBLY, Battery - Positive
(ELECTRIC)
7

85-880786 BOOT, Insulator - Red
(ELECTRIC)

BOOT, Insulator - Red
(ELECTRIC)
8

84-93388A16 CABLE ASSEMBLY, (8.50 Inches)
(ELECTRIC)

CABLE ASSEMBLY, (8.50 Inches)
(ELECTRIC)
9

84-88439A4 CABLE ASSEMBLY, Battery - Negative
(ELECTRIC)

CABLE ASSEMBLY, Battery - Negative
(ELECTRIC)
10

50-893887T STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T800999/BEL-0P267999 and below & Below

STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T800999/BEL-0P267999 and below & Below
10

50-893887T STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T801000/BEL-0P268000 and up & Up

STARTER MOTOR ASSEMBLY
(ELECTRIC) SN# USA-0T801000/BEL-0P268000 and up & Up
11

10-40011153 SCREW, (M8 x 45) Stainless Steel
(ELECTRIC)

SCREW, (M8 x 45) Stainless Steel
(ELECTRIC)
11

10-40011149 SCREW, (M8 x 25) Stainless Steel
(MANUAL)

SCREW, (M8 x 25) Stainless Steel
(MANUAL)
12

10-82684430 SCREW, (M6 x 30)
(ELECTRIC)

SCREW, (M6 x 30)
(ELECTRIC)
12

10-8248324 SCREW, (M6 x 16)
(MANUAL)

SCREW, (M6 x 16)
(MANUAL)
13

87-8M0098207 PRESSURE SWITCH

PRESSURE SWITCH
14

8M0082988 SENSOR

SENSOR
15

10-40011107 SCREW, (M5 x 16) Stainless Steel

SCREW, (M5 x 16) Stainless Steel
16

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
17

12-4002316 WASHER

WASHER
18

859224 PLATE

PLATE
19

856836001 RETAINER
(ELECTRIC)

RETAINER
(ELECTRIC)
20

856040 BRACKET
(ELECTRIC)

BRACKET
(ELECTRIC)
21

10-82129114 SCREW, (M6 x 14)
(ELECTRIC)

SCREW, (M6 x 14)
(ELECTRIC)
22

92753 RETAINER
(ELECTRIC)(QTY. OF 2 ON HANDLE)

RETAINER
(ELECTRIC)(QTY. OF 2 ON HANDLE)
23

23-856954 BUSHING

BUSHING
24

25-834985 GROMMET

GROMMET
25

87843302S ECM, Engine Control Module

ECM, Engine Control Module
26

23-8539201 BUSHING

BUSHING
27

10-82129140 SCREW, (M6 x 40)

SCREW, (M6 x 40)
28

33-827858Q SPARK PLUG, NGK-DPR6EA-9

SPARK PLUG, NGK-DPR6EA-9
29

339-858942T1 COIL ASSEMBLY, Ignition

COIL ASSEMBLY, Ignition
30

10-8M4503518 SCREW, (M6 x 20) Stainless Steel

SCREW, (M6 x 20) Stainless Steel
31

84-859196T1 HARNESS ASSEMBLY, Engine Wiring
(MANUAL)

HARNESS ASSEMBLY, Engine Wiring
(MANUAL)
32

84-859197T3 HARNESS ASSEMBLY, Engine Wiring
(ELECTRIC)

HARNESS ASSEMBLY, Engine Wiring
(ELECTRIC)
33

88-812619 FUSE, Yellow - 20 Ampere
(ELECTRIC)

FUSE, Yellow - 20 Ampere
(ELECTRIC)
34

828054 COVER, Fuse
(ELECTRIC)

COVER, Fuse
(ELECTRIC)
35

84-852375A6 HARNESS ASSEMBLY, Extension
(ELECTRIC HANDLE)

HARNESS ASSEMBLY, Extension
(ELECTRIC HANDLE)
36

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
37

54-55098 J CLIP
(MANUAL)

J CLIP
(MANUAL)
38

883071T1 REGULATOR, Voltage
(ELECTRIC)

REGULATOR, Voltage
(ELECTRIC)
39

893771 BRACKET
(ELECTRIC)

BRACKET
(ELECTRIC)
40

8308971 FOAM PAD
(ELECTRIC)

FOAM PAD
(ELECTRIC)
41

10-8248329 SCREW, (M6 x 40)
(ELECTRIC)

SCREW, (M6 x 40)
(ELECTRIC)
41

10-8248324 SCREW, (M6 x 16)
(MANUAL)

SCREW, (M6 x 16)
(MANUAL)
42

10-82129110 SCREW, (M6 x 10)
(ELECTRIC)

SCREW, (M6 x 10)
(ELECTRIC)
43

13541 PLUG, Male
(MALE)

PLUG, Male
(MALE)
44

10-8248324 SCREW, (M6 x 16)
(ELECTRIC-NON POWER TRIM)

SCREW, (M6 x 16)
(ELECTRIC-NON POWER TRIM)
45

10-8248324 SCREW, (M6 x 16)

SCREW, (M6 x 16)
46

54-65292 J CLIP
(ELECTRIC-NON POWER TRIM)

J CLIP
(ELECTRIC-NON POWER TRIM)
-

61-803017T01 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
-

61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)

POWERHEAD ASSEMBLY
(BIGFOOT)
