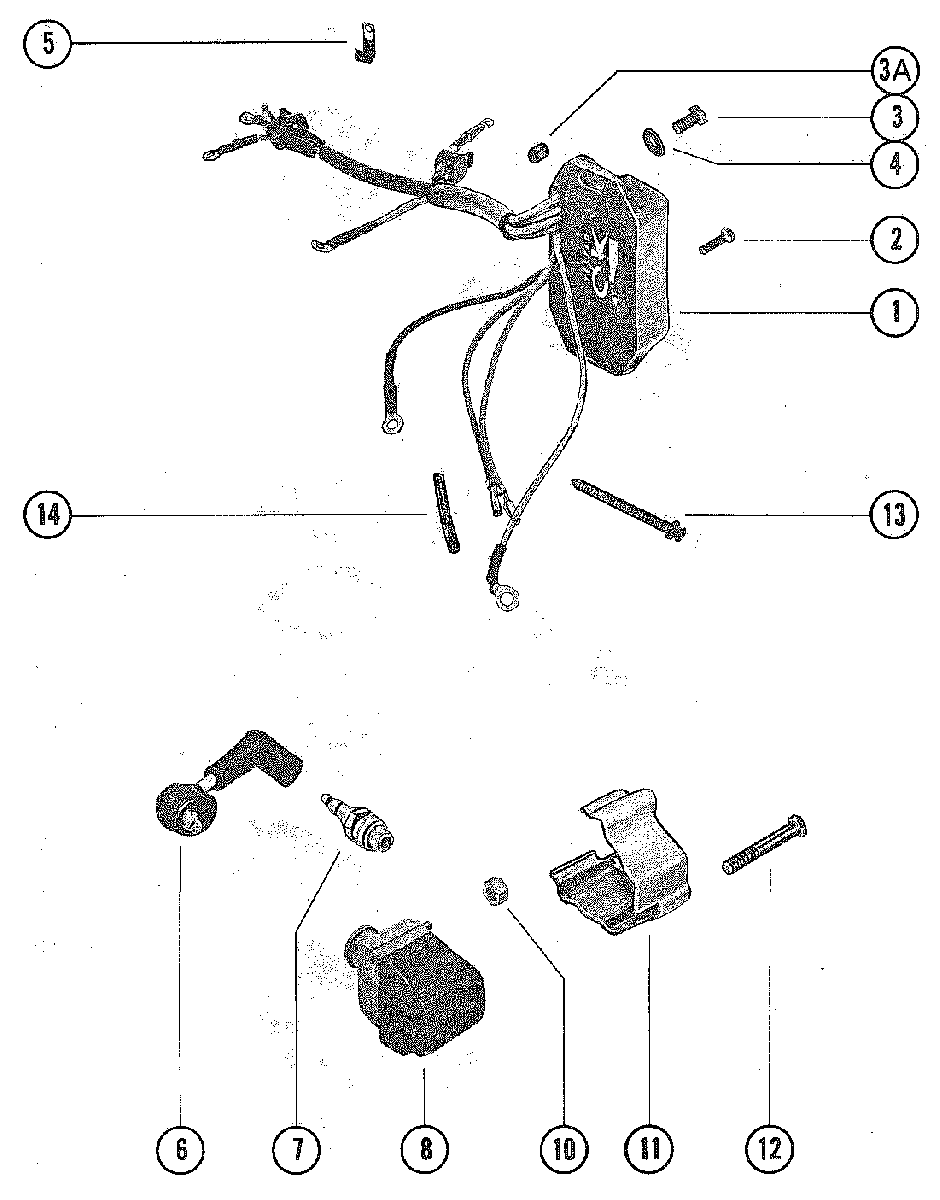

SWITCH BOX AND IGNITION COIL для Mercury - 40, 4 (GNAT 2 CYL.) 7085673 THRU 7146487

  • №
    Артикул
    Название
  • 1
    339-6222A8 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 2
    10-45218 SCREW, SWITCH BOX GROUND (3/8")
    SCREW, SWITCH BOX GROUND (3/8")
  • 3
    10-22523 SCREW, SWITCH BOX (3/4")
    SCREW, SWITCH BOX (3/4")
  • 3A
    23-26731 SPACER, SWITCH BOX SCREW (EARLY MODELS)
    SPACER, SWITCH BOX SCREW (EARLY MODELS)
  • 4
    12-56681 WASHER, SWITCH BOX SCREW
    WASHER, SWITCH BOX SCREW
  • 5
    54-63153 "J" CLIP, SWITCH BOX LEAD
    "J" CLIP, SWITCH BOX LEAD
  • 6
    84-813715A1 WIRE, HIGH TENSION
    WIRE, HIGH TENSION
  • 6
    33-82370M1 SPARK PLUG (USE IN BELGIUM AND CANADA)
    SPARK PLUG (USE IN BELGIUM AND CANADA)
  • 7
    33-82370M1 SPARK PLUG (USE IN UNITED STATES)
    SPARK PLUG (USE IN UNITED STATES)
  • 8
    339-5288T2 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 10
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 11
    76254 COIL COVER
    COIL COVER
  • 12
    10-76502 SCREW, COIL COVER (1 7/8")
    SCREW, COIL COVER (1 7/8")
  • 13
    61990 STA-STRAP, SWITCH BOX LEADS
    STA-STRAP, SWITCH BOX LEADS
  • 14
    5790811 SLEEVE, SWITCH BOX LEADS
    SLEEVE, SWITCH BOX LEADS
