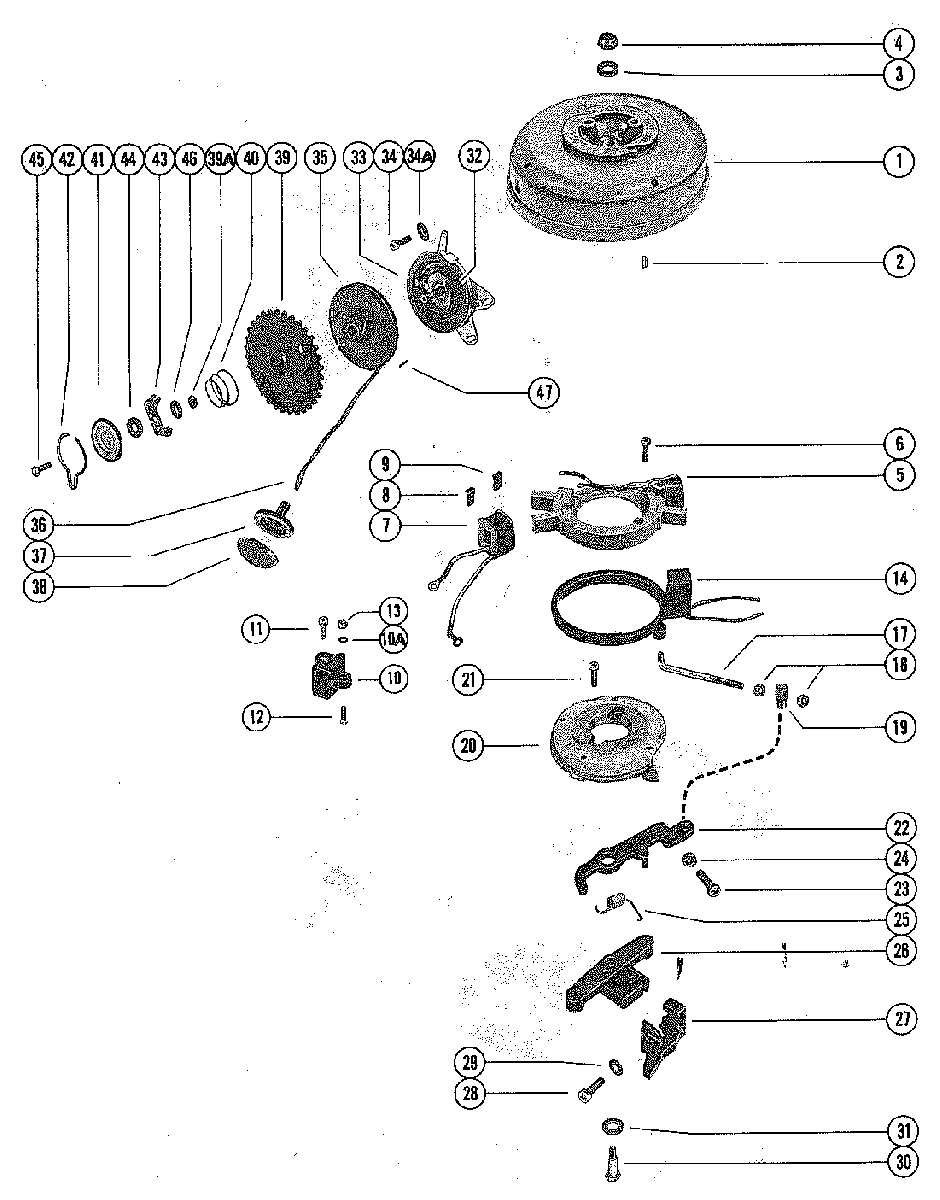

FLYWHEEL, STATOR AND MANUAL STARTER для Mercury - 40, 4 (GNAT 2 CYL.) 7085673 THRU 7146487

  • №
    Артикул
    Название
  • 1
    247-7933A2 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    12-20553 WASHER, FLYWHEEL
    WASHER, FLYWHEEL
  • 4
    11-8M0042636 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 5
    339-5566A5 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 6
    10-66707 SCREW, STATOR TO MOUNTING BRACKET (7/8")
    SCREW, STATOR TO MOUNTING BRACKET (7/8")
  • 7
    339-5589A1 COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)
    COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)
  • 7
    339-5590A1 COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)
    COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)
  • 8
    54-59538T CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 9
    54-65927 CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 10
    86-69348 TERMINAL BLOCK, STATOR
    TERMINAL BLOCK, STATOR
  • 10A
    13-58308 LOCKWASHER, TERMINAL BLOCK
    LOCKWASHER, TERMINAL BLOCK
  • 11
    10-22654 SCREW, LEADS TO TERMINAL BLOCK (3/8")
    SCREW, LEADS TO TERMINAL BLOCK (3/8")
  • 12
    10-69347 SCREW, TERMINAL BLOCK TO STATOR (5/8")
    SCREW, TERMINAL BLOCK TO STATOR (5/8")
  • 13
    11-46438 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
  • 14
    70426A3 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 17
    70414 LINK ROD, TRIGGER TO SPARK LEVER
    LINK ROD, TRIGGER TO SPARK LEVER
  • 18
    11-68219 NUT, ADJUSTING LINK ROD
    NUT, ADJUSTING LINK ROD
  • 19
    33973 SWIVEL BOLT, LINK ROD
    SWIVEL BOLT, LINK ROD
  • 20
    70428 BRACKET, STATOR MOUNTING
    BRACKET, STATOR MOUNTING
  • 21
    10-25764 SCREW, STATOR MOUNTING BRACKET (7/16")
    SCREW, STATOR MOUNTING BRACKET (7/16")
  • 22
    70422 LEVER, SPARK
    LEVER, SPARK
  • 23
    10-62802 SCREW, ADJUSTING - SPARK LEVER (1 1/8")
    SCREW, ADJUSTING - SPARK LEVER (1 1/8")
  • 24
    11-21923T NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 25
    24-70418 SPRING, THROTTLE LEVER
    SPRING, THROTTLE LEVER
  • 26
    70424 THROTTLE LEVER
    THROTTLE LEVER
  • 27
    70429 THROTTLE CAM
    THROTTLE CAM
  • 28
    10-38055 SCREW
    THROTTLE CAM TO THROTTLE LEVER (5/8")
    SCREW
    THROTTLE CAM TO THROTTLE LEVER (5/8")
  • 29
    12-56681 WASHER, THROTTLE CAM SCREW (7/8")
    WASHER, THROTTLE CAM SCREW (7/8")
  • 30
    10-38515 SCREW, SHOULDER (7/8")
    SCREW, SHOULDER (7/8")
  • 31
    12-69056 WASHER, SHOULDER SCREW
    WASHER, SHOULDER SCREW
  • 32
    24-70167 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 33
    75764 BRACKET ASSEMBLY, STARTER REWIND
    BRACKET ASSEMBLY, STARTER REWIND
  • 34
    10-37571 SCREW, BRACKET TO CYLINDER BLOCK (1/2")
    SCREW, BRACKET TO CYLINDER BLOCK (1/2")
  • 34A
    12-30164 WASHER, BRACKET TO CYLINDER BLOCK SCREW
    WASHER, BRACKET TO CYLINDER BLOCK SCREW
  • 35
    77568 STARTER SHEAVE
    STARTER SHEAVE
  • 36
    50-90892A2 STARTER ROPE ASSEMBLY (INCLUDES 2 RIVETS)
    STARTER ROPE ASSEMBLY (INCLUDES 2 RIVETS)
  • 37
    70396 HANDLE, STARTER ROPE
    HANDLE, STARTER ROPE
  • 38
    70394 CAP, STARTER HANDLE
    CAP, STARTER HANDLE
  • 39
    75764A2 PINION, STARTER REWIND
    PINION, STARTER REWIND
  • 39A
    12-30164 WASHER, PINION
    WASHER, PINION
  • 40
    24-70288 SPRING, PINION
    SPRING, PINION
  • 41
    75764A2 RETAINER, PINION SPRING
    RETAINER, PINION SPRING
  • 42
    75764A2 SPRING, TORSION - PINION
    SPRING, TORSION - PINION
  • 43
    75764A2 HOLDER, SPRING
    HOLDER, SPRING
  • 44
    75764A2 SPACER, SPRING HOLDER
    (SERIAL #9189789 AND BELOW)
    SPACER, SPRING HOLDER
    (SERIAL #9189789 AND BELOW)
  • 44
    75764A2 SPACER, SPRING HOLDER
    (SERIAL #9189790 AND UP)
    SPACER, SPRING HOLDER
    (SERIAL #9189790 AND UP)
  • 45
    75764A2 SCREW, SPRING RETAINER (5/8")
    SCREW, SPRING RETAINER (5/8")
  • 46
    12-56681 WASHER, SPRING RETAINER
    WASHER, SPRING RETAINER
  • 47
    17-70180 RIVET, STARTER SHEAVE
    RIVET, STARTER SHEAVE
