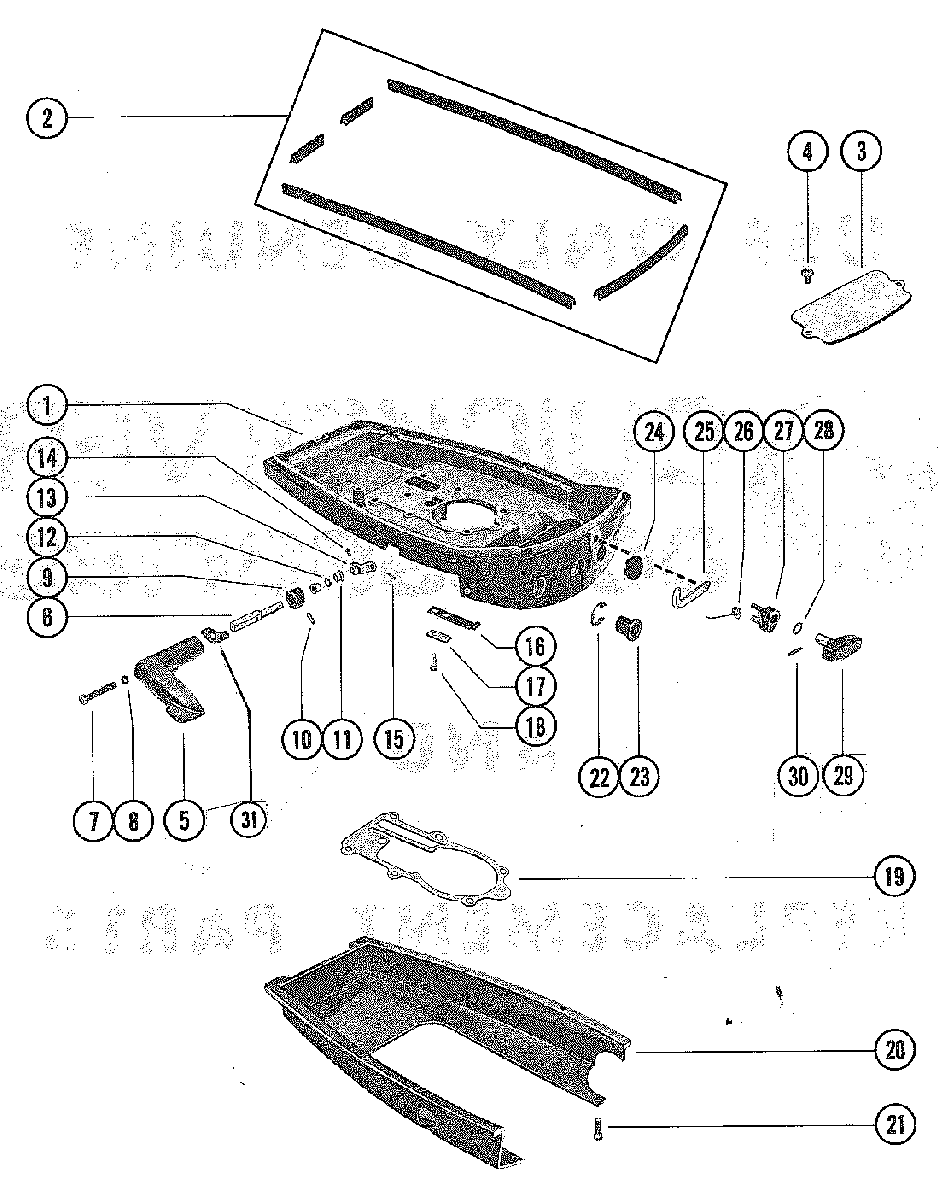

BOTTOM COWL для Mercury - 40, 4 (GNAT 2 CYL.) 7085673 THRU 7146487

  • №
    Артикул
    Название
  • 1
    2154-7603 BOTTOM COWL (SERIAL #9141798 AND BELOW)
    BOTTOM COWL (SERIAL #9141798 AND BELOW)
  • 1
    2154-7603 BOTTOM COWL (SERIAL #9141799 AND UP)
    BOTTOM COWL (SERIAL #9141799 AND UP)
  • 2
    714933 MOLDING, BOTTOM COWL (2" - 6-1/2" - 15")
    MOLDING, BOTTOM COWL (2" - 6-1/2" - 15")
  • 3
    70455 COVER, BOTTOM COWL
    COVER, BOTTOM COWL
  • 4
    10-69079 SCREW, COVER TO BOTTOM COWL (7/16")
    SCREW, COVER TO BOTTOM COWL (7/16")
  • 5
    86056A1 HANDLE, SHIFT SERIAL
    #9210545 AND BELOW
    HANDLE, SHIFT SERIAL
    #9210545 AND BELOW
  • 6
    86056A1 SHAFT, SHIFT
    #9210545 AND BELOW
    SHAFT, SHIFT
    #9210545 AND BELOW
  • 7
    10-70182 SCREW, SHIFT HANDLE TO SHAFT (1 3/8")
    #9210545 AND BELOW
    SCREW, SHIFT HANDLE TO SHAFT (1 3/8")
    #9210545 AND BELOW
  • 8
    13-26994 LOCKWASHER, SHIFT HANDLE SCREW
    #9210545 AND BELOW
    LOCKWASHER, SHIFT HANDLE SCREW
    #9210545 AND BELOW
  • 5
    86055T HANDLE, SHIFT SERIAL
    #9210546 AND UP
    HANDLE, SHIFT SERIAL
    #9210546 AND UP
  • 6
    86056A1 SHAFT, SHIFT
    #9210546 AND UP
    SHAFT, SHIFT
    #9210546 AND UP
  • 7
    10-69560 SCREW, SHIFT HANDLE TO SHAFT (1 1/4")
    #9210546 AND UP
    SCREW, SHIFT HANDLE TO SHAFT (1 1/4")
    #9210546 AND UP
  • 8
    13-26996 LOCKWASHER, SHIFT HANDLE SCREW
    #9210546 AND UP
    LOCKWASHER, SHIFT HANDLE SCREW
    #9210546 AND UP
  • 9
    66414 CAM, SHIFT DETENT
    CAM, SHIFT DETENT
  • 10
    17-25905 ROLL PIN, CAM TO SHIFT SHAFT
    ROLL PIN, CAM TO SHIFT SHAFT
  • 11
    23-26856 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 12
    25-16524 "O" RING, SHIFT SHAFT
    "O" RING, SHIFT SHAFT
  • 13
    72733 ARM, SHIFT
    ARM, SHIFT
  • 14
    10-72734 SET SCREW, SHIFT ARM (5/16")
    SET SCREW, SHIFT ARM (5/16")
  • 15
    18-210711 COTTER PIN, SHIFT SHAFT
    COTTER PIN, SHIFT SHAFT
  • 16
    24-39627 SPRING, DETENT
    SPRING, DETENT
  • 17
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 18
    10-25764 SCREW, DETENT SPRING TO BOTTOM COWL (1/2")
    SCREW, DETENT SPRING TO BOTTOM COWL (1/2")
  • 19
    27-92874 GASKET, DRIVE SHAFT HOUSING/BOTTOM COWL
    GASKET, DRIVE SHAFT HOUSING/BOTTOM COWL
  • 20
    69602 TRIM COVER
    SERIAL #9141798 AND BELOW
    TRIM COVER
    SERIAL #9141798 AND BELOW
  • 21
    10-37571 SCREW, TRIM COVER TO BOTTOM COWL (1/2")
    SERIAL #9141798 AND BELOW
    SCREW, TRIM COVER TO BOTTOM COWL (1/2")
    SERIAL #9141798 AND BELOW
  • 21
    10-75827 SCREW, TRIM COVER TO BOTTOM COWL
    SERIAL #9141798 AND BELOW
    SCREW, TRIM COVER TO BOTTOM COWL
    SERIAL #9141798 AND BELOW
  • 22
    53-72168 "E" RING, RETAINER
    "E" RING, RETAINER
  • 23
    70393 RETAINER, STARTER HANDLE
    (SERIAL #9190379 AND BELOW)
    RETAINER, STARTER HANDLE
    (SERIAL #9190379 AND BELOW)
  • 23
    70393 RETAINER, STARTER HANDLE
    (SERIAL #9190380 AND UP)
    RETAINER, STARTER HANDLE
    (SERIAL #9190380 AND UP)
  • 24
    19-74258 PLUG, BOTTOM COWL - FUEL ADAPTOR
    PLUG, BOTTOM COWL - FUEL ADAPTOR
  • 25
    70462 ARM, LATCH CRANK
    ARM, LATCH CRANK
  • 26
    24-70459 SPRING, LATCH CRANK
    SPRING, LATCH CRANK
  • 27
    75263 CRANK, FRONT LATCH
    CRANK, FRONT LATCH
  • 28
    13-34632 WAVE WASHER, LATCH HANDLE
    WAVE WASHER, LATCH HANDLE
  • 29
    92798 HANDLE, LATCH BOTTOM COWL
    HANDLE, LATCH BOTTOM COWL
  • 30
    17-38489 ROLL PIN, LATCH HANDLE TO CRANK
    ROLL PIN, LATCH HANDLE TO CRANK
  • 31
    74802 STOP, SHIFT ARM
    STOP, SHIFT ARM
  • -
    27-77586A78 GASKET SET
    GASKET SET
