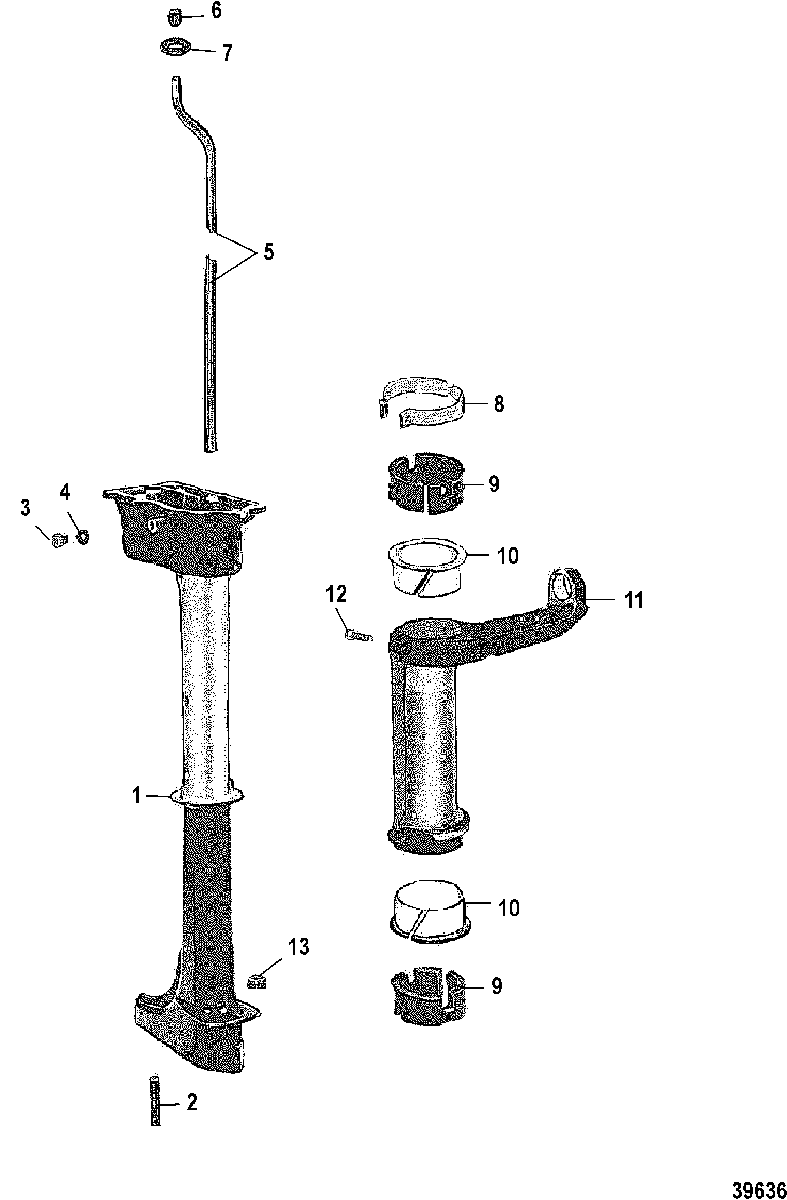

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 9256981 THRU 9258280

  • №
    Артикул
    Название
  • 1
    1580-6673A2 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-68927 STUD, DRIVESHAFAT HOUSING
    (SHORT SHAFT)
    STUD, DRIVESHAFAT HOUSING
    (SHORT SHAFT)
  • 2
    16-75321 STUD, DRIVE SHAFT HOUSING
    (LONG SHAFT)
    STUD, DRIVE SHAFT HOUSING
    (LONG SHAFT)
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILTER
    SCREW, (.375-16 x .250), GREASE FILTER
  • 4
    12-191833 WASHER, GREAST FILLER SCREW
    WASHER, GREAST FILLER SCREW
  • 5
    32-68979 TUBE, Water
    (SHORT SHAFT)
    TUBE, Water
    (SHORT SHAFT)
  • 5
    32-75308 TUBE, Water
    (LONG SHAFT)
    TUBE, Water
    (LONG SHAFT)
  • 6
    26-36556 SEAL, (.500 Inch Outside Diameter), WATER TUBE
    SEAL, (.500 Inch Outside Diameter), WATER TUBE
  • 7
    23-13127 BEARING, WATER TUBE SEAL
    BEARING, WATER TUBE SEAL
  • 8
    54-79791 CLAMP, CO-PILOT
    CLAMP, CO-PILOT
  • 9
    88669 MOUNT, RUBBER (TOP)
    SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
    MOUNT, RUBBER (TOP)
    SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
  • 9
    88669 MOUNT, RUBBER (BOTTOM)
    SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
    MOUNT, RUBBER (BOTTOM)
    SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
  • 9
    88669 MOUNT, RUBBER (TOP AND BOTTOM)
    SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
    MOUNT, RUBBER (TOP AND BOTTOM)
    SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
  • 10
    23-74308 BUSHING, RUBBER MOUNT
    BUSHING, RUBBER MOUNT
  • 11
    98496A1 BRACKET ASSEMBLY, STEERING ARM
    BRACKET ASSEMBLY, STEERING ARM
  • 12
    10-75840 SCREW, (#10-24 x .880), STEERING ARM BRACKET
    SCREW, (#10-24 x .880), STEERING ARM BRACKET
  • 13
    11-82670911 NUT, (.312-24) Stainless Steel, GEAR HOUSING STUD
    NUT, (.312-24) Stainless Steel, GEAR HOUSING STUD
  • -
    75311T ADAPTOR, DRIVESHAFT HOUSING
    LONG SHAFT
    ADAPTOR, DRIVESHAFT HOUSING
    LONG SHAFT
  • -
    94909 BLOCK, Bearing, DRIVESHAFT
    LONG SHAFT
    BLOCK, Bearing, DRIVESHAFT
    LONG SHAFT
  • -
    10-26668 SCREW, ADAPTOR
    LONG SHAFT
    SCREW, ADAPTOR
    LONG SHAFT
  • -
    27-77586A78 GASKET SET
    GASKET SET
