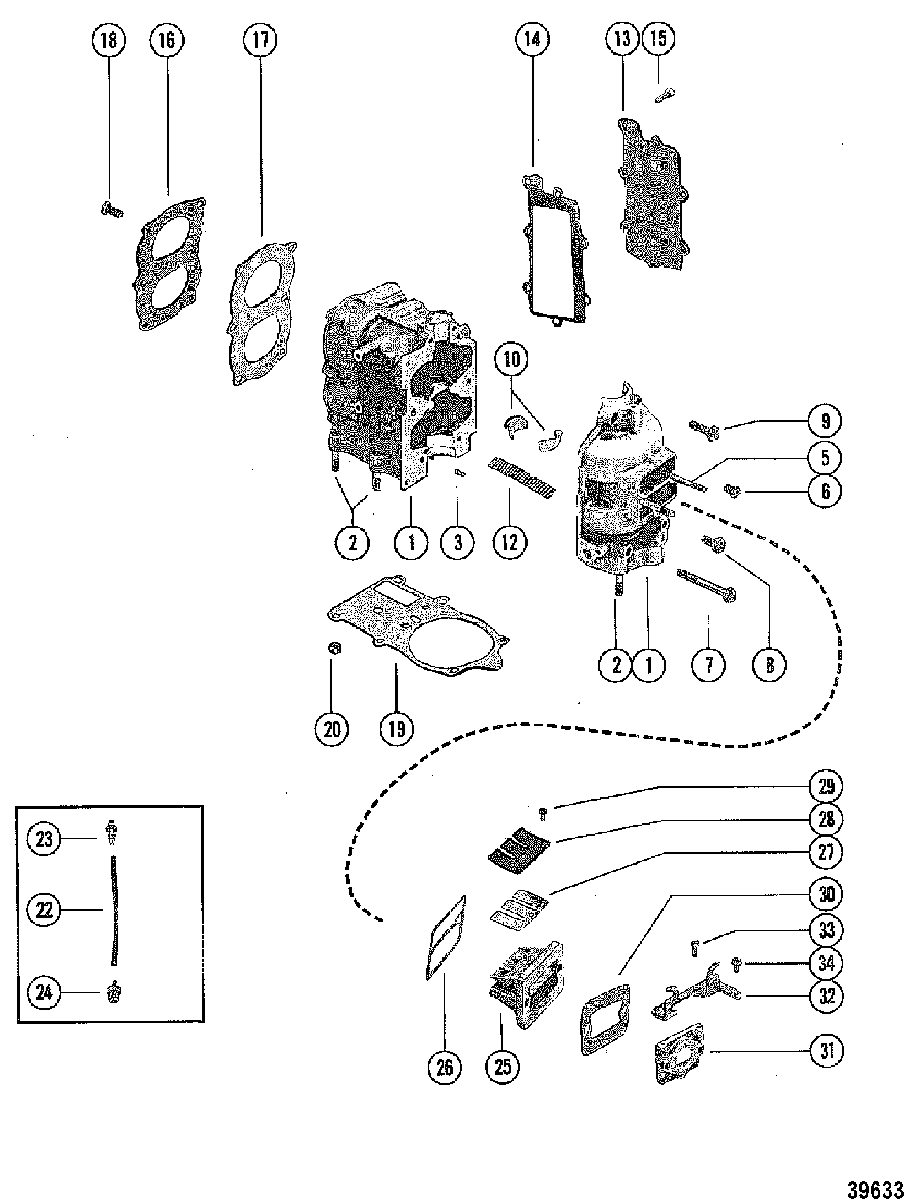

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 9256981 THRU 9258280

  • №
    Артикул
    Название
  • 1
    862-7713A2 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    16-728091 STUD, (.250-20/.250-28 x 1.620), POWERHEAD
    STUD, (.250-20/.250-28 x 1.620), POWERHEAD
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530), CYLINDER BLOCK
    PIN, Dowel (.187 x .530), CYLINDER BLOCK
  • 5
    16-20353 STUD, (.250-28 x 1.750), REED BLOCK AND CARBURETOR
    STUD, (.250-28 x 1.750), REED BLOCK AND CARBURETOR
  • 6
    22-56800 PLUG, Pipe (.0625-27), CYLINDER BLOCK
    PLUG, Pipe (.0625-27), CYLINDER BLOCK
  • 7
    10-70732 SCREW, (.250-20 x 2.00), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.250-20 x 2.00), CRANKCASE TO CYLINDER BLOCK
  • 8
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
    SCREW, (.250-20 x .620) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
  • 9
    10-28667 SCREW, (.250-20 x 1.00) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
    SCREW, (.250-20 x 1.00) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
  • 10
    68953A1 LINER ASSEMBLY, CYLINDER BLOCK
    LINER ASSEMBLY, CYLINDER BLOCK
  • 12
    29-71840 BEARING, Needle, CENTER MAIN
    BEARING, Needle, CENTER MAIN
  • 13
    77585 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 14
    27-77586 GASKET, EXHAUST MANIFOLD COVER
    GASKET, EXHAUST MANIFOLD COVER
  • 15
    10-32228 SCREW, (#10-32 x .625), EXHAUST MANIFOLD COVER
    SCREW, (#10-32 x .625), EXHAUST MANIFOLD COVER
  • 16
    1027-5546 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 17
    27-68942 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 18
    10-32228 SCREW, (#10-32 x .625), CYLINDER BLOCK COVER
    SCREW, (#10-32 x .625), CYLINDER BLOCK COVER
  • 19
    27-68941 GASKET, BLOCK TO BOTTOM COWL
    GASKET, BLOCK TO BOTTOM COWL
  • 20
    11-24652 NUT, (.250-28), POWERHEAD STUDS
    NUT, (.250-28), POWERHEAD STUDS
  • 22
    32-9938779 TUBE, BLEED
    TUBE, BLEED
  • 23
    22-56759 CONNECTOR, ADAPTOR
    CONNECTOR, ADAPTOR
  • 24
    21-64871A2 CHECK VALVE, CRANKCASE
    CHECK VALVE, CRANKCASE
  • 25
    69498 REED BLOCK
    REED BLOCK
  • 26
    27-70415 GASKET, CRANKCASE TO REED BLOCK
    GASKET, CRANKCASE TO REED BLOCK
  • 27
    34-69499A1 REED ASSEMBLY
    REED ASSEMBLY
  • 28
    34-69500 STOP, Reed
    STOP, Reed
  • 29
    10-28430 SCREW, (#6-32 x .25), REED AND REED STOP
    SCREW, (#6-32 x .25), REED AND REED STOP
  • 30
    27-70416 GASKET, REED BLOCK TO ADAPTOR
    GASKET, REED BLOCK TO ADAPTOR
  • 31
    70420 ADAPTOR, CARBURETOR TO REED BLOCK
    ADAPTOR, CARBURETOR TO REED BLOCK
  • 32
    79746 BRACKET, CABLE MOUNTING
    BRACKET, CABLE MOUNTING
  • 33
    10-69022 SCREW, (#10-32 x .500) Stainless Steel, BRACKET TO ADAPTOR
    SCREW, (#10-32 x .500) Stainless Steel, BRACKET TO ADAPTOR
  • 34
    10-20055 SCREW, (#10-32 x .375), CABLE MOUNTING BRACKET
    SCREW, (#10-32 x .375), CABLE MOUNTING BRACKET
  • -
    27-77586A78 GASKET SET
    GASKET SET
  • -
    72530A78 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
