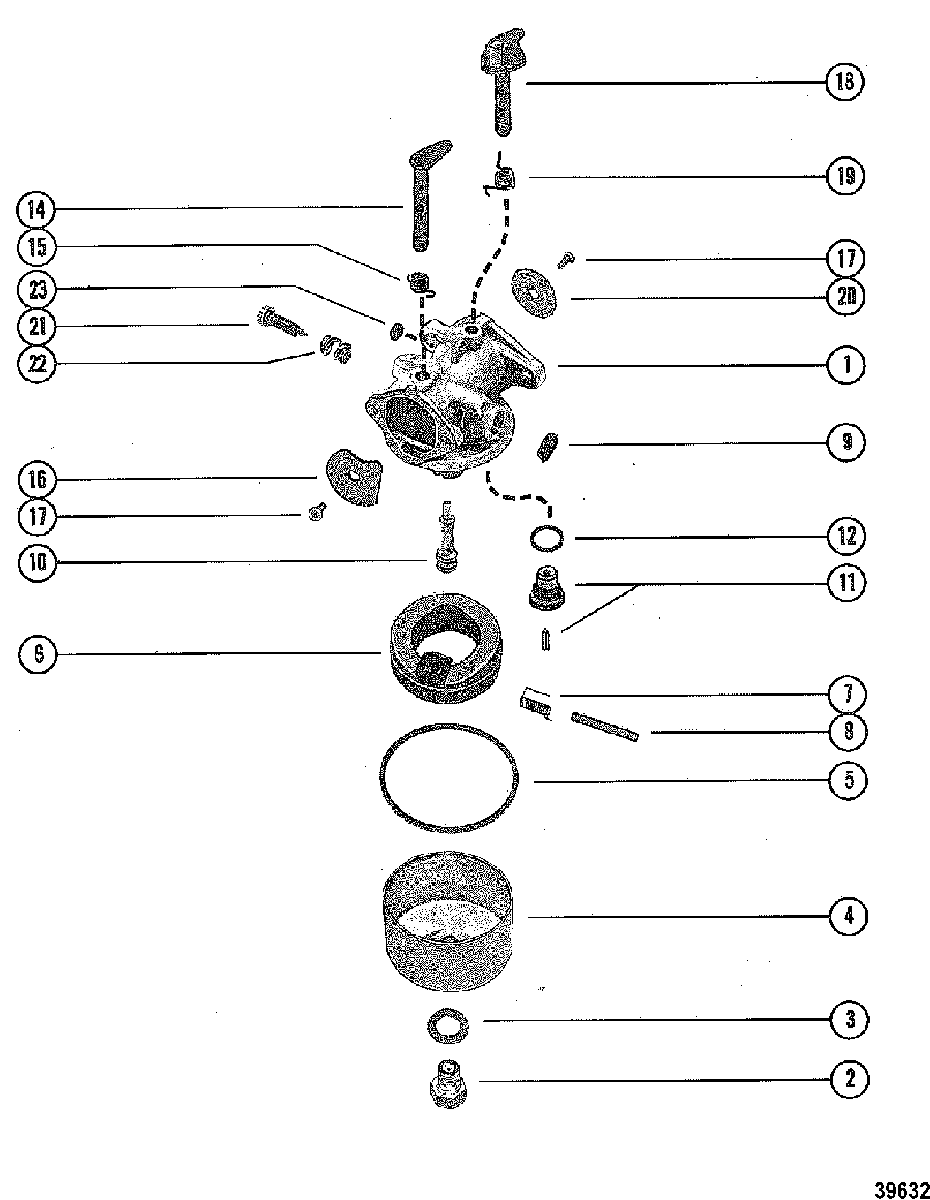

CARBURETOR ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 9256981 THRU 9258280

  • №
    Артикул
    Название
  • 1
    89977A2 CARBURETOR
    (LMO-3)
    CARBURETOR
    (LMO-3)
  • 1
    1377-8402 CARBURETOR
    (LMO-4)
    CARBURETOR
    (LMO-4)
  • 2
    1395-6043 RETAINER, JET (.041)
    RETAINER, JET (.041)
  • 3
    NSS NOT SOLD SEPARATE, GASKET, JET RETAINER
    NOT SOLD SEPARATE, GASKET, JET RETAINER
  • 4
    1395-8155 BOWL, Fuel
    BOWL, Fuel
  • 5
    NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL
    NOT SOLD SEPARATE, GASKET, FUEL BOWL
  • 6
    1395-5898 FLOAT
    FLOAT
  • 7
    1395-5904 SPRING, FLOAT
    SPRING, FLOAT
  • 8
    NSS NOT SOLD SEPARATE, FLOAT PIN
    NOT SOLD SEPARATE, FLOAT PIN
  • 9
    1395-4805 SCREEN, FILTER
    SCREEN, FILTER
  • 10
    1395-5900 NOZZLE
    (LMO-3)
    NOZZLE
    (LMO-3)
  • 10
    1395-8671 NOZZLE
    (LMO-4)
    NOZZLE
    (LMO-4)
  • 11
    NSS NOT SOLD SEPARATE, INLET NEEDLE, SEAT AND GASKET
    NOT SOLD SEPARATE, INLET NEEDLE, SEAT AND GASKET
  • 12
    NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
    NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
  • 14
    1395-5896 SHAFT, CHOKE
    SHAFT, CHOKE
  • 15
    1395-5905 SPRING, CHOKE RETURN
    SPRING, CHOKE RETURN
  • 16
    1395-5897 VALVE, CHOKE
    VALVE, CHOKE
  • 17
    1395-5902 SCREW, (#6-32 x .187), VALVE
    SCREW, (#6-32 x .187), VALVE
  • 18
    1395-5894 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 19
    1395-5903 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 20
    1395-8670 VALVE, THROTTLE
    (LMO-3)
    VALVE, THROTTLE
    (LMO-3)
  • 20
    1395-8670 VALVE, THROTTLE
    (LMO-4)
    VALVE, THROTTLE
    (LMO-4)
  • 21
    NSS NOT SOLD SEPARATE, IDLE NNEDLE
    NOT SOLD SEPARATE, IDLE NNEDLE
  • 22
    1395-6103 SPRING, IDLE NEEDLE
    SPRING, IDLE NEEDLE
  • 23
    NSS NOT SOLD SEPARATE, WLECH PLUG, CARBURETOR (5/16")
    NOT SOLD SEPARATE, WLECH PLUG, CARBURETOR (5/16")
  • --
    NSS NOT SOLD SEPARATE, CAP PLUG, CARBURETOR
    NOT SOLD SEPARATE, CAP PLUG, CARBURETOR
  • -
    1395-7262 GASKET SET, Carburetor Repair
    GASKET SET, Carburetor Repair
  • -
    1395-7263 REPAIR PARTS KIT
    (LMO-3)
    REPAIR PARTS KIT
    (LMO-3)
  • -
    1395-8672 REPAIR PARTS KIT
    (LMO-4)
    REPAIR PARTS KIT
    (LMO-4)
