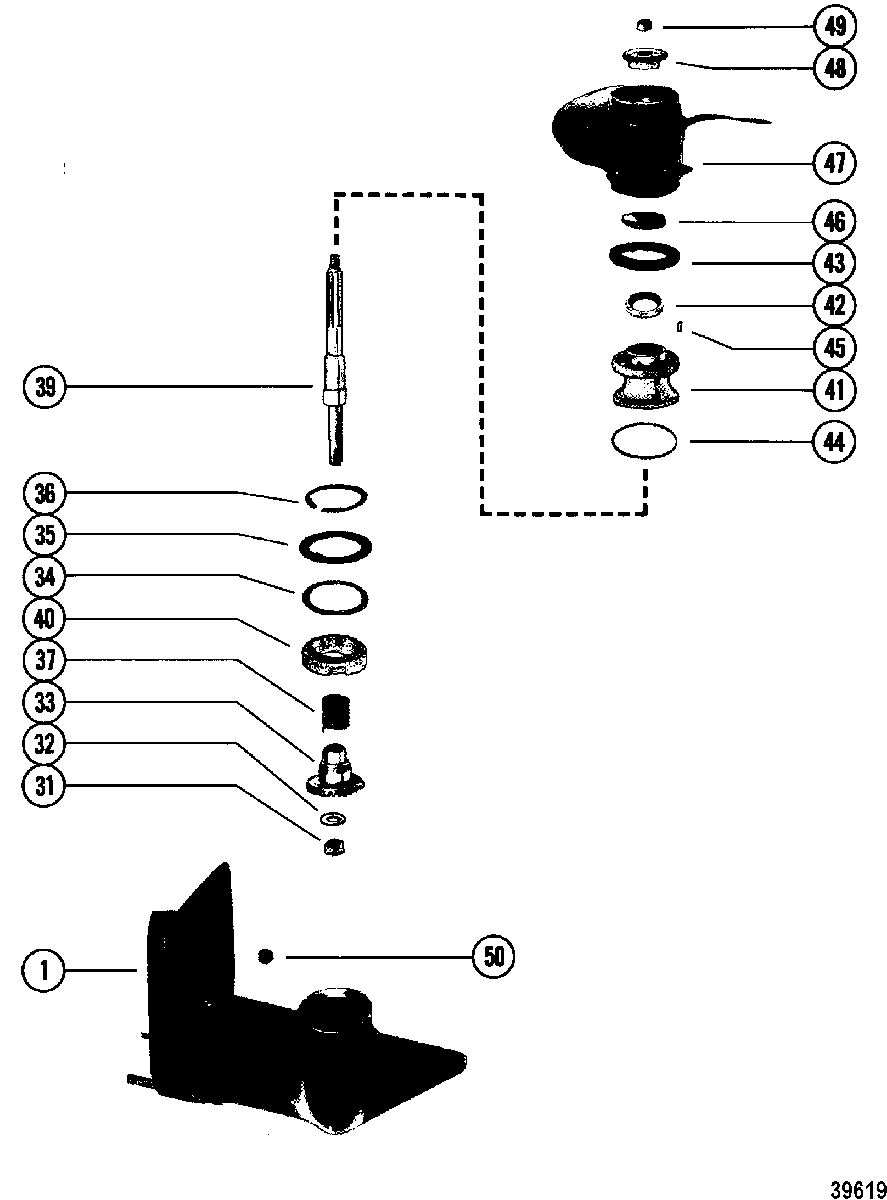

GEAR HOUSING ASSEMBLY(PROPELLER SHAFT) для Mercury - 40 (2 CYL. PRODUCT OF USA) 7146488 THRU 7147237
-
№АртикулНазвание
-
-1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
-1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
-1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & UpGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
-1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & UpGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASICGEAR HOUSING ASSEMBLY, BASIC
-
3111-20696 NUT, PROPELLER SHAFTNUT, PROPELLER SHAFT
-
3212-73672 WASHER, PROPELLER SHAFTWASHER, PROPELLER SHAFT
-
3343-90795A1 GEAR, DriveGEAR, Drive
-
3414-79603 WASHER, SPECIAL - PROPELLER SHAFTWASHER, SPECIAL - PROPELLER SHAFT
-
3515-79602A1 SHIM SET, PROPELLER SHAFT (.002-3-5-10-20)SHIM SET, PROPELLER SHAFT (.002-3-5-10-20)
-
3653-79601 RING, RetainingRING, Retaining
-
3724-91813 SPRING, CLUTCHSPRING, CLUTCH
-
3944-77425 PROPELLER SHAFT
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowPROPELLER SHAFT
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
3944-93358 PROPELLER SHAFT
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpPROPELLER SHAFT
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
4077424 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
4199210A1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
4226-98309 SEAL, OilSEAL, Oil
-
4375812 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
4425-68935 O-RING, (1.799 x .103), BEARING CARRIERO-RING, (1.799 x .103), BEARING CARRIER
-
4528-32003 KEY, BEARING CARRIERKEY, BEARING CARRIER
-
4670588 THRUST HUB, FORWARDTHRUST HUB, FORWARD
-
4748-86903A1 PROPELLER ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowPROPELLER ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
4748-93357A10 PROPELLER ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpPROPELLER ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
4870589 THRUST HUB, AFT
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowTHRUST HUB, AFT
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
4893356 THRUST HUB, AFT
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpTHRUST HUB, AFT
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
4911-82670911 NUT, (.312-24) Stainless Steel, PROPELLERNUT, (.312-24) Stainless Steel, PROPELLER
-
5011-82670911 NUT, (.312-24) Stainless Steel, DRIVE SHAFT HOUSING STUDNUT, (.312-24) Stainless Steel, DRIVE SHAFT HOUSING STUD
-
-27-77586A78 GASKET SETGASKET SET
-
-26-71140A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
